KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
1-20
1-7-2. Replacing the Y-Axis Plastic Rail
(1) Loosen the NM6060001SC and remove the X-axis plastic rail from the CB angle. Loosen the
SL3061232TN and remove the Y-axis plastic rail from the X-frame end assembly.
(2) Loosen the SL6061092TN and detach the cable clamps YU and UB.
(3) Open the flap of the Y-axis plastic rail to remove the cables, and replace the X-axis plastic rail.
(4) Reassemble the components in the reverse order of disassembly. At this time, pay special
attention so that the cables in the plastic rail are properly arranged and not entangled.

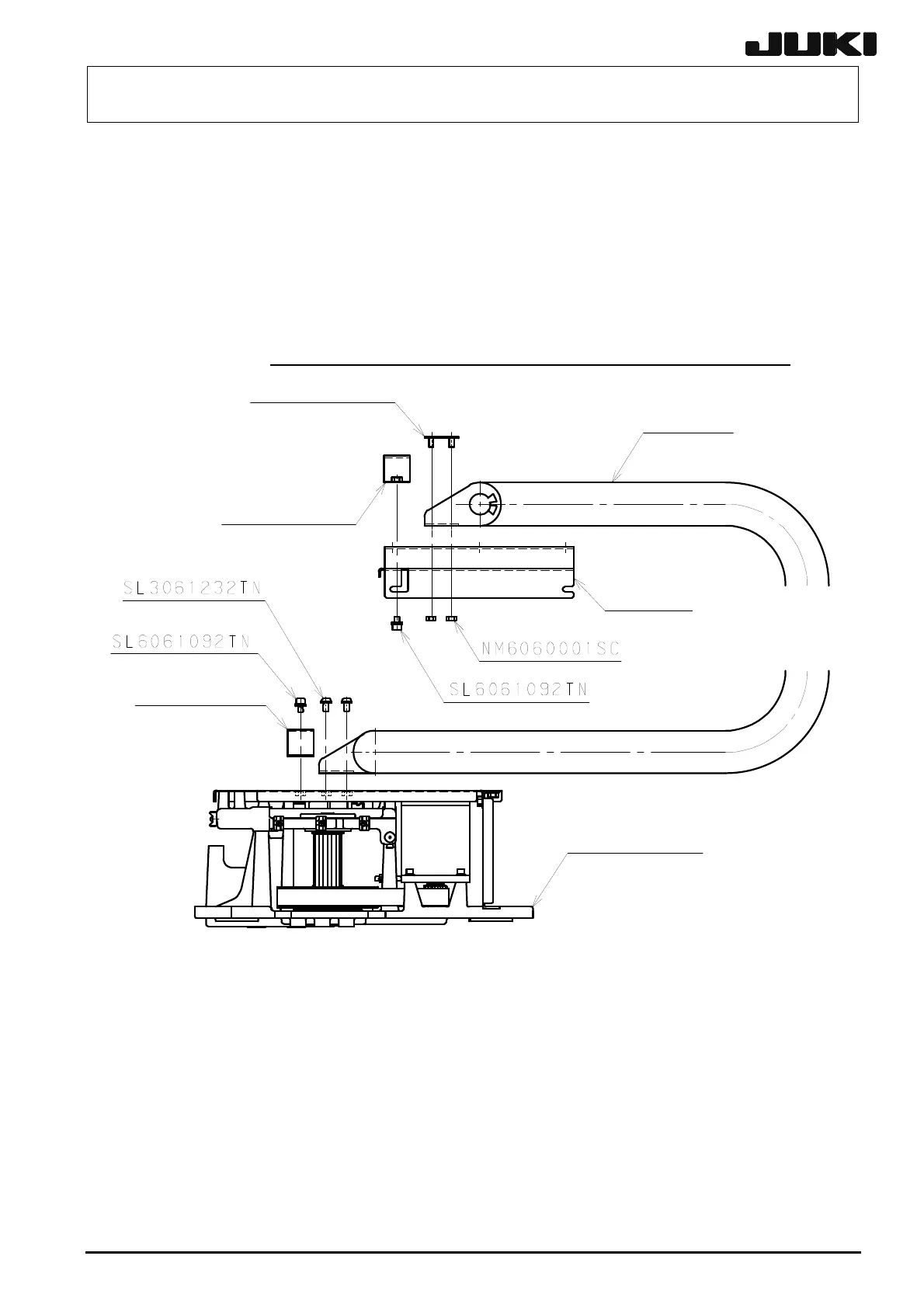

Plastic rail bracket
Y-axis plastic
rail
CB angle
Cable clamp YU
Cable clam
YB
X-frame end L
assembly
Figure 1-7-2-1
Rev. 2.00
