KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
12-1
DANGER
To prevent any trouble caused by accidental machine start, always
shut-down the power before starting the maintenance and
adjustment work.
[12] REPLACING AND ADJUSTING THE FEEDER FLOAT SENSOR

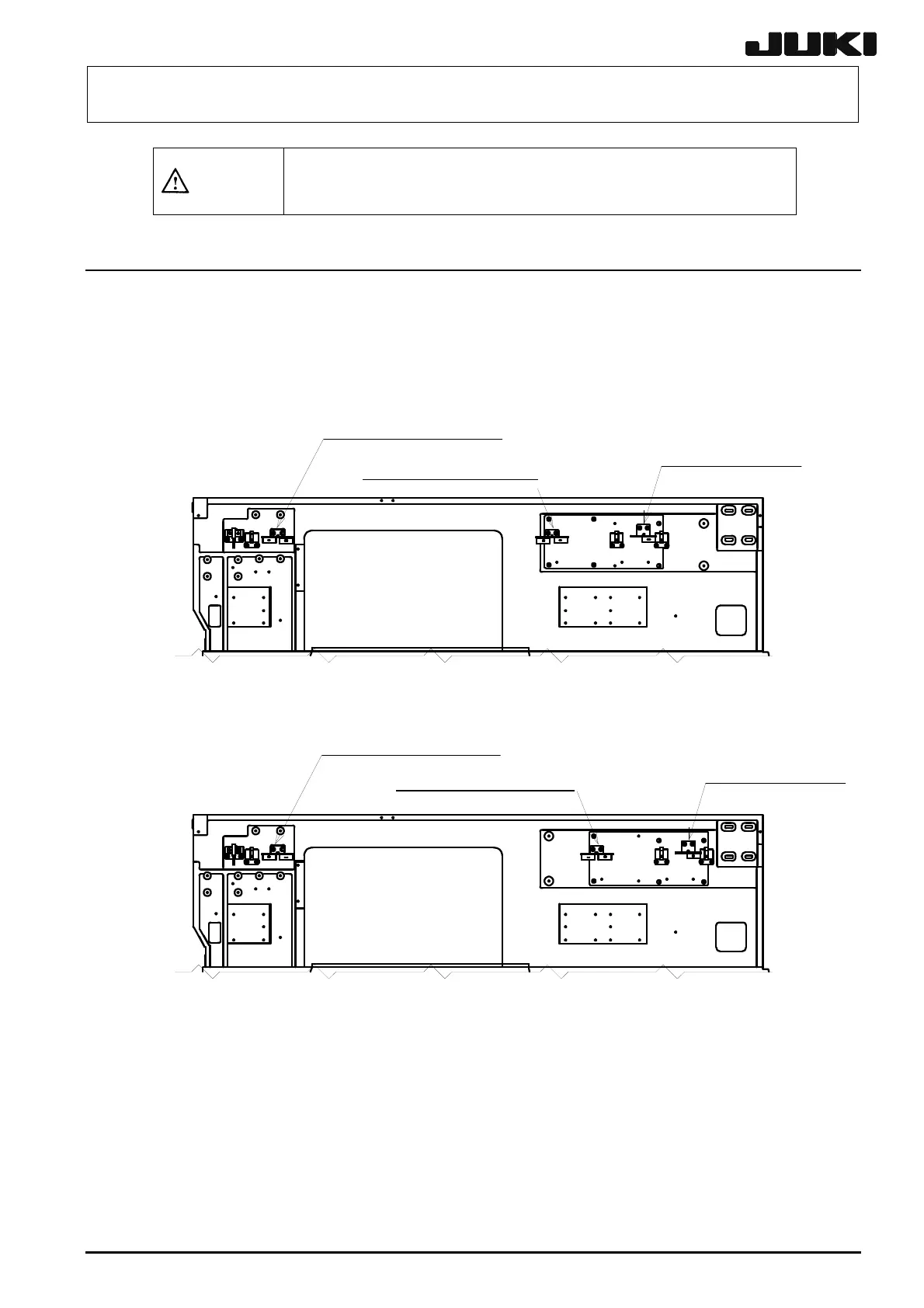

(1) Check the position of a sensor to be replaced in the machine while referring to the figure below,
and detach the sensor together with the bracket.
c Left side
FSD bracket assembly
(Rear left portion)
FSD bracket assembly
(Front left portion)
M-size machine
FS bracket assembly (Left)
FSD bracket assembly
(Front left portion)
L-size machine
FSD bracket assembly
(Rear left portion)
FS bracket assembly (Left)
Figure 12-1
Rev. 2.00
