KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
4-1
DANGER
To prevent any trouble caused by accidental machine start, always
shut-down the power before starting the maintenance and
adjustment work.
[4] OCC Assembly
4-1. Replacing the OCC Assembly
(1) Remove the washer assembled hexagon socket head cap bolts c to detach the camera
bracket D.
(2) The camera assembly is secured with the washer assembled hexagon socket head cap bolts
d and the light assembly is secured with the washer assembled hexagon socket head cap
bolts e. Disconnect the connectors and remove relevant bolts to detach the camera and light
assemblies.
(3) Reassemble the components in the reverse order of disassembly.
(4) After the camera assembly has been replaced, it is absolutely necessary to adjust the focus
and input the MS parameters. After the light assembly has been replaced, it is necessary to
adjust the polarizing filter and OCC light. (See 4-8, List of Readjustment Items After
Replacement.)
② Washer assembled
hexagon socket head
ca
p
bolt
(
× 4
)
① Washer assembled
hexagon socket head
cap bolt (× 4)
Head plate
Camera assembly
40001212
③ Washer assembled
hexagon socket
head ca
p
bolt
(
×
2
)
CA light assembly
40041061
Camera bracket D

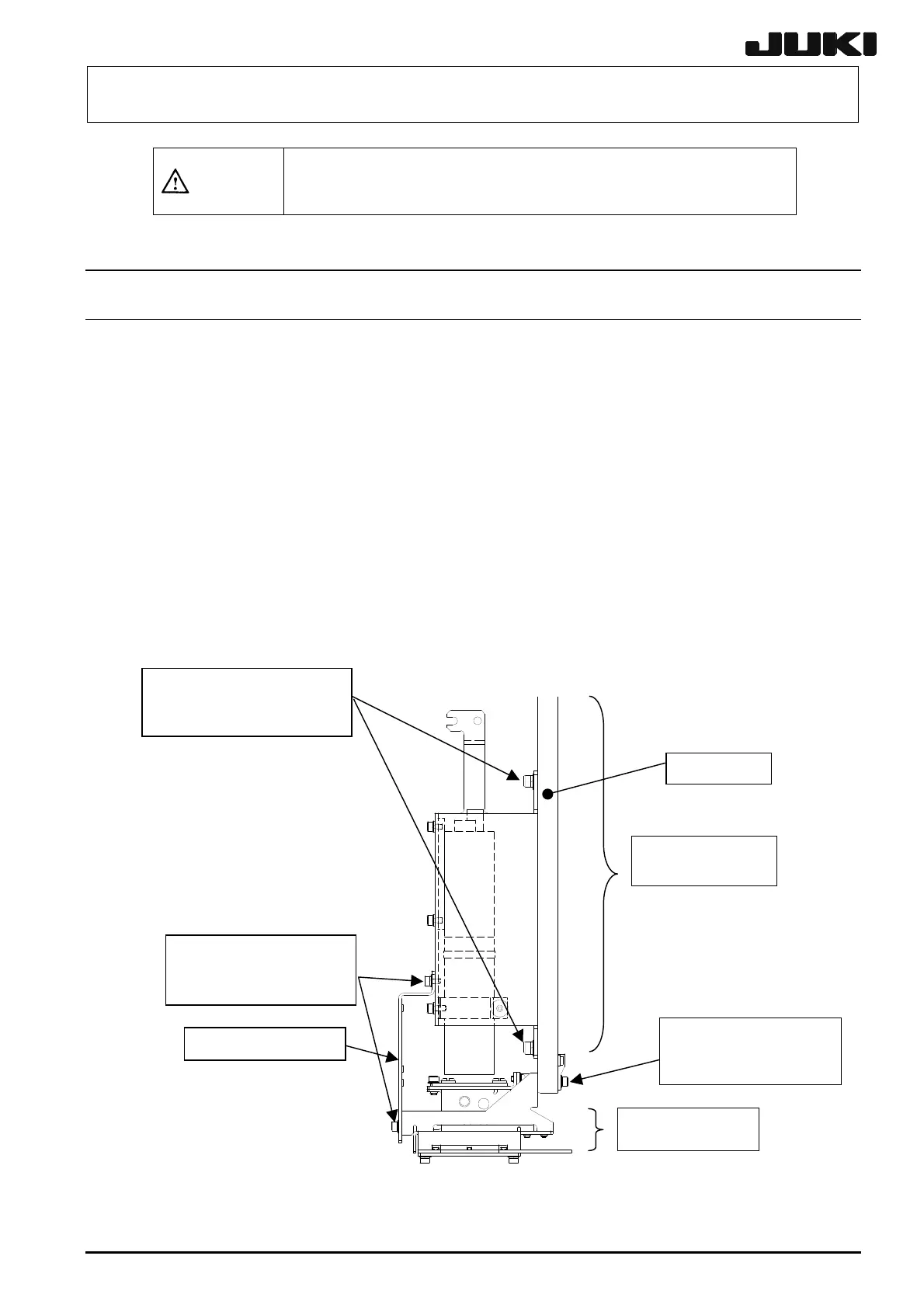

Figure 4-1-1 OCC Assembly
Rev. 2.10
