KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
1-27

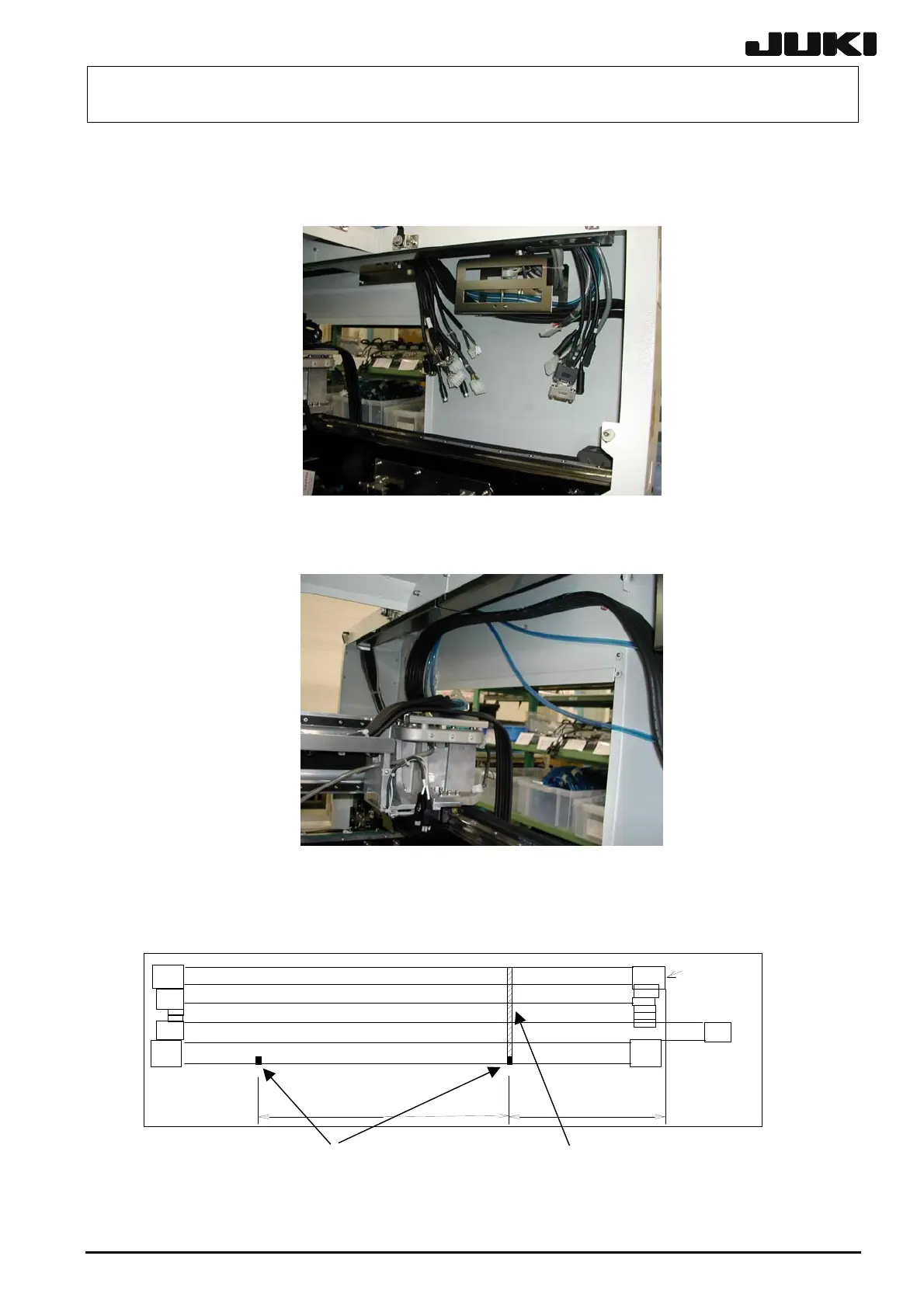

1-8-5. Removing the Y Bear Cable
(1) Disconnect the binding of the swing part at the entrance of the Y-axis cable bearer and the
relay connector.
Figure 1-8-5-1
(2) Detach the cover of the Y cable bearer and remove the cable to be replaced.
Figure 1-8-5-2
1-8-6. Placing Marks on the Y Cable Bearer
(1) Place marks on the 40002232 (40002346) cables.
CN162
(535)
M
:
1
1
0
5
+
5
-
0
L
:
1
1
7
0
+
5
-
0
E
:
1
2
3
0
+
5
-
0
Rev. 2.00
Placing marks on the side of the cables Placing marks side by side
Figure 1-8-6-1
