KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
9-5
9-4. Replacing the Feeder Bank Board and Feeder I/F Board
(1) Disconnect the feeder bank relay cable and air coupler nipple from the main unit.
(2) Remove the mounting screws to detach the connector bracket.
(3) Disconnect the connectors from the feeder bank board and feeder I/F board.
(4) To detach the feeder bank board, remove eight round head screws. To detach the feeder I/F
board, remove four nuts. After relevant board has been detached, replace it with a new one.
(5) Reassemble the components in the reverse order of disassembly.
コネクタブラケット
E2508729000
フィーダバンク中継ケーブル
エア
フィーダＩ／Ｆ基板
カプラニップル
032009005 PJ
Connector bracket
E2508729000
Feeder bank relay cable
ir coupler nipple
PJ032009005
Feeder I/F board

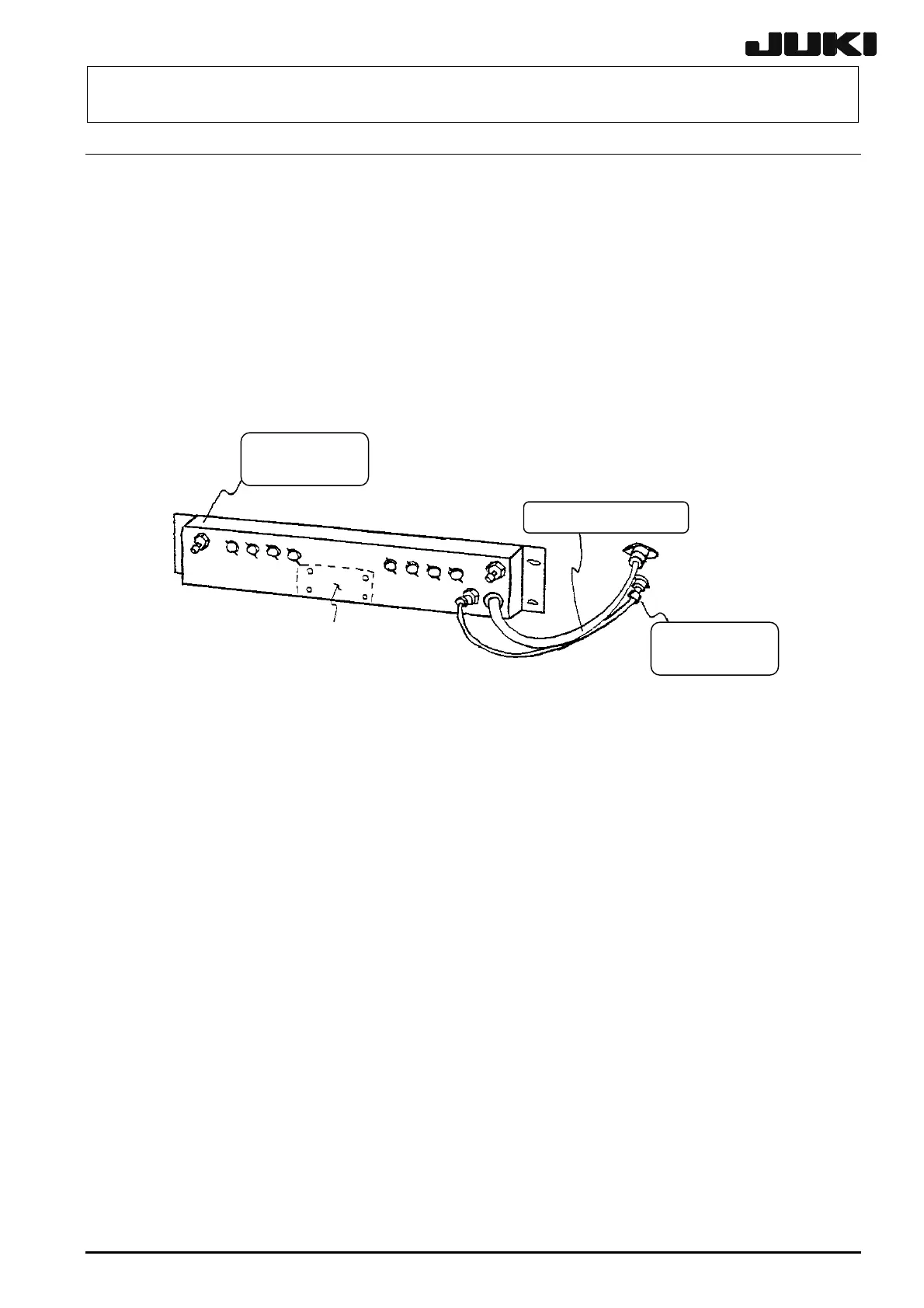

Figure 9-4-1
Rev. 2.00
