JUKI KE-2060 - Adjusting the Tension of the Support Table Driving Timing Belt

KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
5-17
Rev. 2.00
5-15-2. Adjusting the Tension of the Support Table Driving Timing Belt
To adjust the tension of the support table driving timing belt, loosen the screw of the tension
supporter assembly and move the assembly in the arrow direction, input the said values to the sonic
belt tension meter (manufactured by UNITTA), measure the tension at the locations shown below,
and then adjust the tension within the required range.
Values to be input to the sonic belt tension meter Weight = 2.5
Width = 9.0
Span = 97(Span=170 in the case of L size)
Required ran 42.5N ± 2.5N
測定位置
測定位置
弱
強

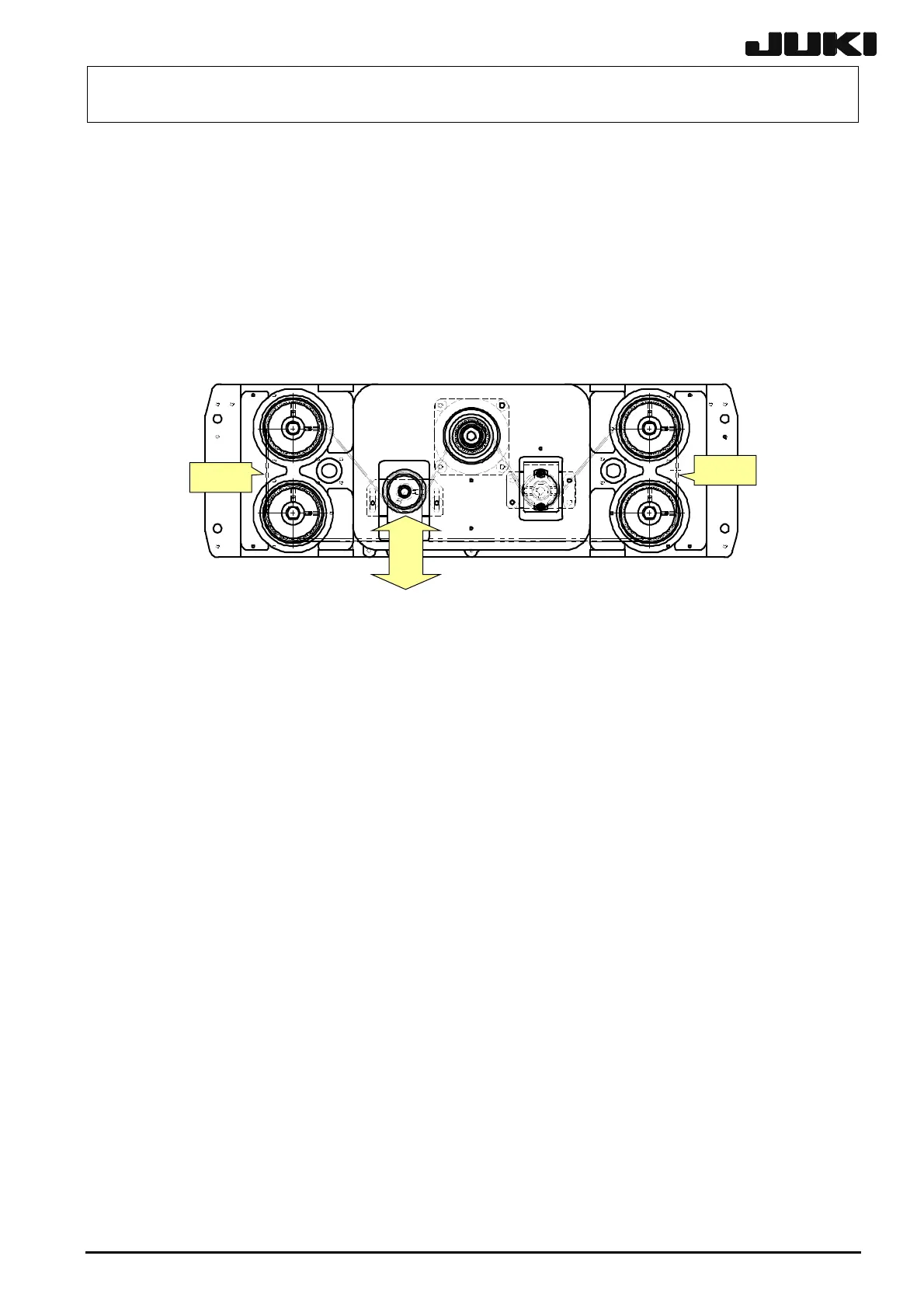

Figure 5-15-2-1
Measuring
position
Measuring
position
Weaker
Stronge
r
