KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
5-12
Rev. 2.00
5-10. Replacing the T-PIN Sensor
(1) Remove the adjustment screw to detach the
sensor bracket and replace the sensor.
When reassembling the components, adjust the
position of the sensor bracket by loosening the
adjustment screw and moving the sensor bracket
up and down so that the T-PIN sensor is turned
ON when the center ring pin is lowered by 1.5
0
-0.5
mm.
(2) Carefully handle the cables.
NO. Part No. Part name
40002122 T.PIN SENS ASM
SL6030692TN SCREW

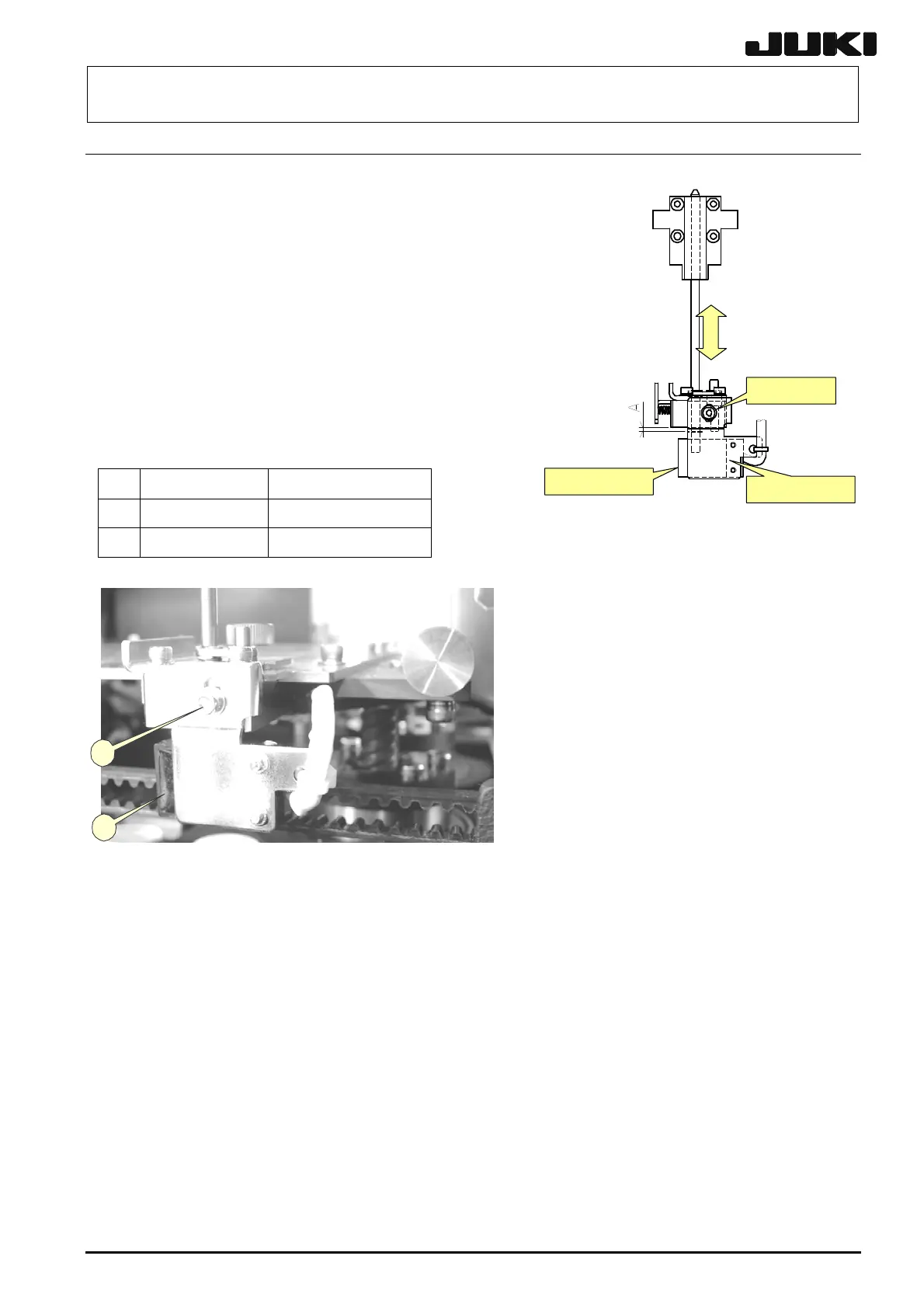

Figure 5-10-1
調整ねじ
センサブラケット
Ｔ・ＰＩＮセンサ
T. PIN sensor
Adjustment screw
Sensor bracket
2
1
