KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
14-24

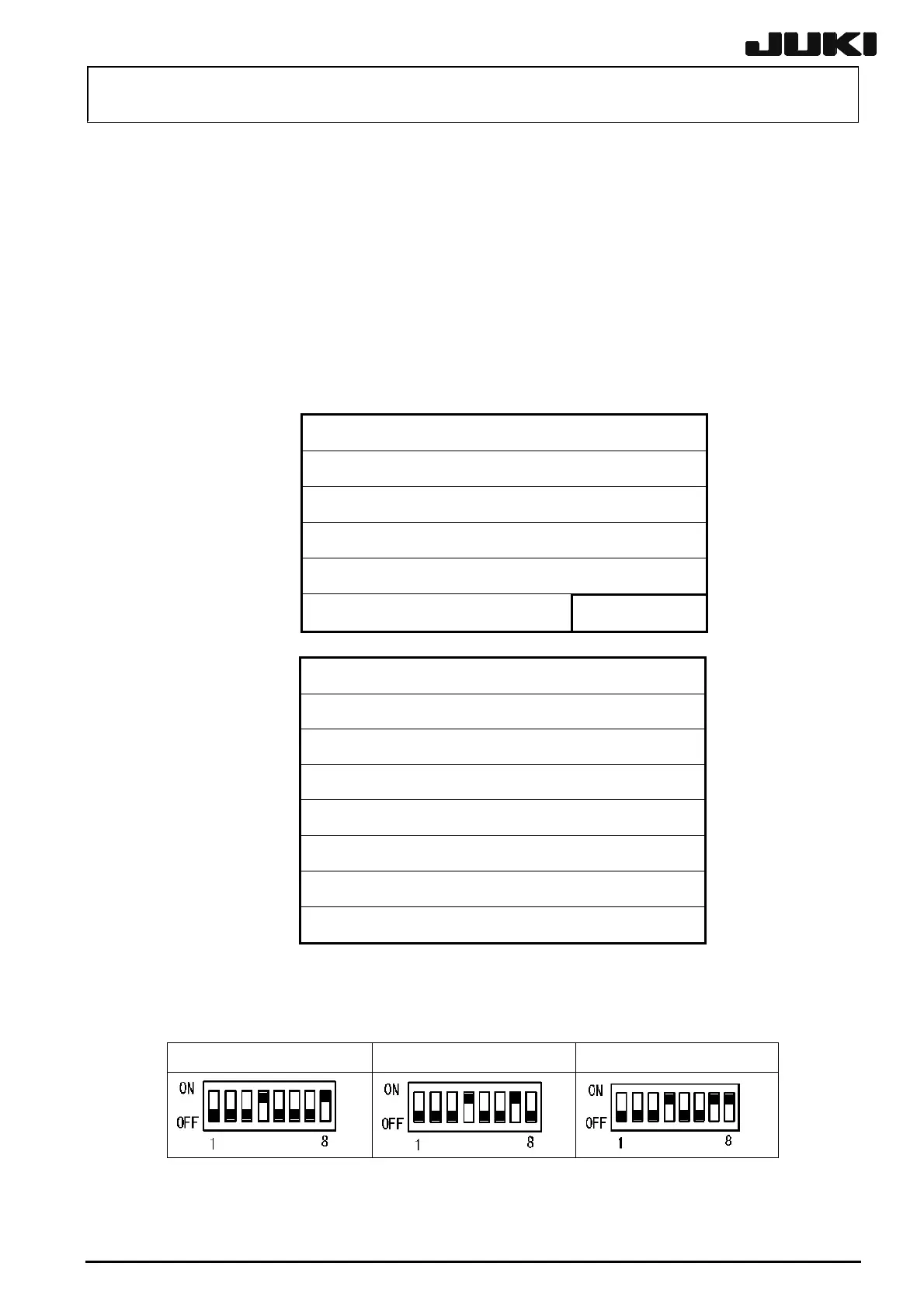

14-4-8. BASE FEEDER Board Assembly (40001941)
[Functions]
This board controls the feeder knock pin and relays the cables to the signal light control and
MTS.
[Jumper switch settings]
Jumper switches are provided on the Base Feeder board assembly to be used in the control unit.
Set these jumper switches correctly while referring to the table below.
Jumper switches
W3 (2P)
→
Short-circuit
W4 (2P)
→
Short-circuit
W6 (2P)
→
Short-circuit
W7 (2P)
→
Open
W8 (2P)
→
Short-circuit
W9 (3P)
→
Short-circuit 1 and 2
DIP switches
SW 1-1
→
OFF
SW 1-2
→
OFF
SW 1-3
→
OFF
SW 1-4
→
OFF
SW 1-5
→
OFF
SW 1-6
→
OFF
SW 1-7
→
OFF
SW 1-8
→
OFF
Function Rev. and pattern Rev. of the board are set on the SW 2. Normally, do not change the
switch settings.
The following are sample settings.
Pattern Rev. 1, function Rev. 1 Pattern Rev. 1, function Rev. 2
Pattern Rev. 1, function Rev. 3
Rev. 2.00
