KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
7-4
7-2. Replacing the ATC OPEN and CLOSE Sensors
(1) Replace the ATC OPEN or CLOSE sensor assembly.
(2) Secure the cables to the base with a binding band.
Binding band
OPEN sensor
CLOSE sensor

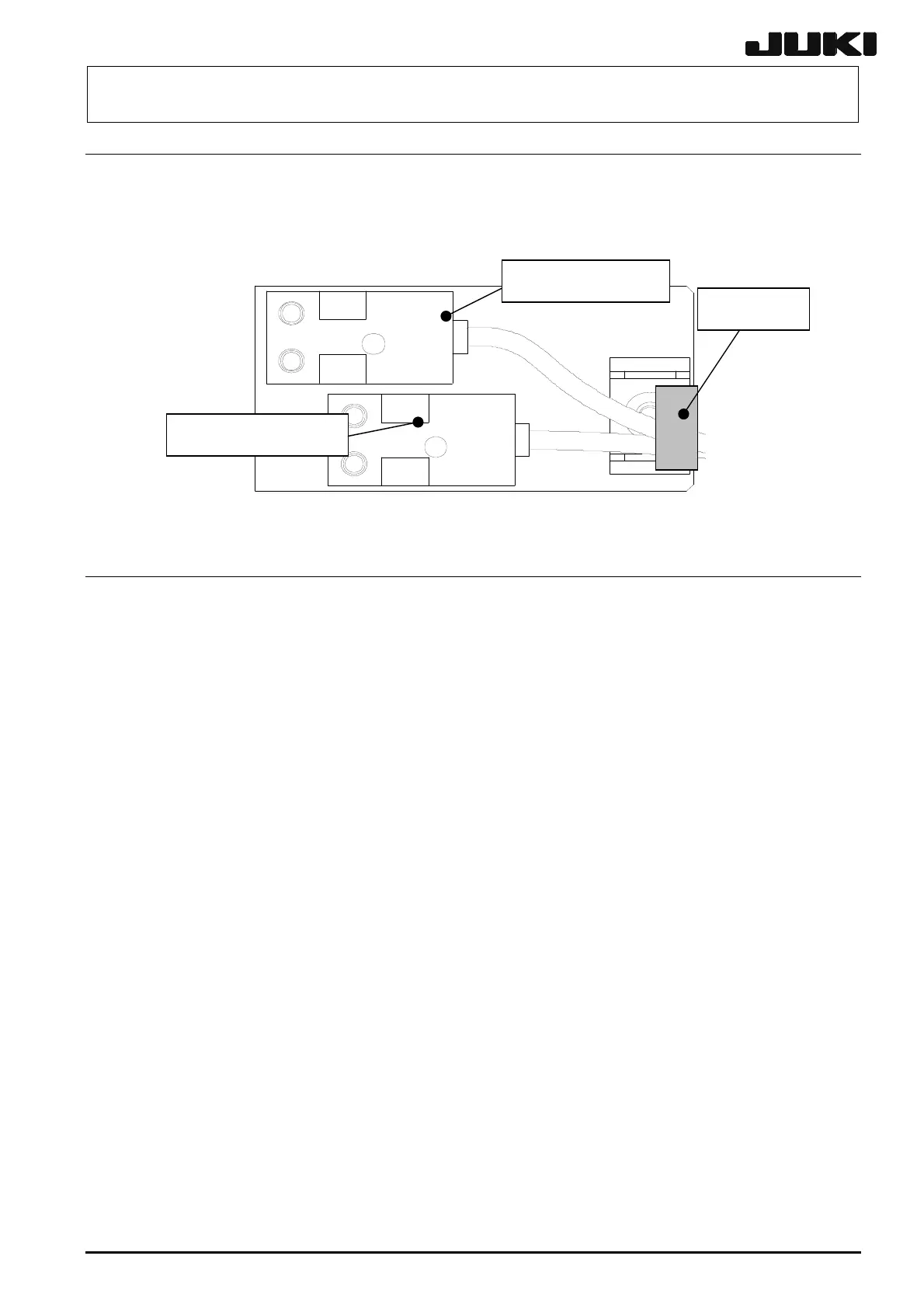

Figure 7-2-1 OPEN and CLOSE Sensors
7-3. Adjusting the Speed Controller
(1) Rotate the knob of the speed controller to adjust the opening/closing time of the slide plate to
the standard adjustment value.
(As a guide, rotate the knob about two and a half turns from the fully closed position.)
(2) After adjustment, fix the knob.
<Standard>
Slide plate opening/closing time······80 ± 5 msec.
Rev. 2.00
