KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
9-7
9-6. Adjusting the Speed Controller of the Bank-Up Cylinder
(Optional Replacement Table)
(1) For the speed controllers of the right side cylinder, adjust those of the fixed and left side
cylinders.
(2) The speed controllers have been set so that the bank-up cylinder completes ascent/descent
operation in two to three seconds. (When assembled)
UP speed : To be adjusted by the upper speed controller.
If the up speed of the left cylinder is too fast, turn the speed controller adjustment screw
clockwise.
DOWN speed: To be adjusted by the lower speed controller.
If the down speed of the left cylinder is too fast, turn the speed controller adjustment screw
clockwise.
(3) If the up and down speeds of the left and right cylinders are the same, lock the adjustment
screws of the speed controllers with the lock screws.
(4) After the adjustment screws have been locked, recheck the up and down speeds.
Bank sensor dog
M5 hexagonal socket
head cap bolt (× 2)
M5 hexagonal socket h bolt (( 2) ead cap
Rev. 2.00
Bank sensor dog
Roller guide left-side
Bank sensor bracket
Bank sensor
Page 9-8
Roller guide left-side
Bank sensor bracket
Bank sensor

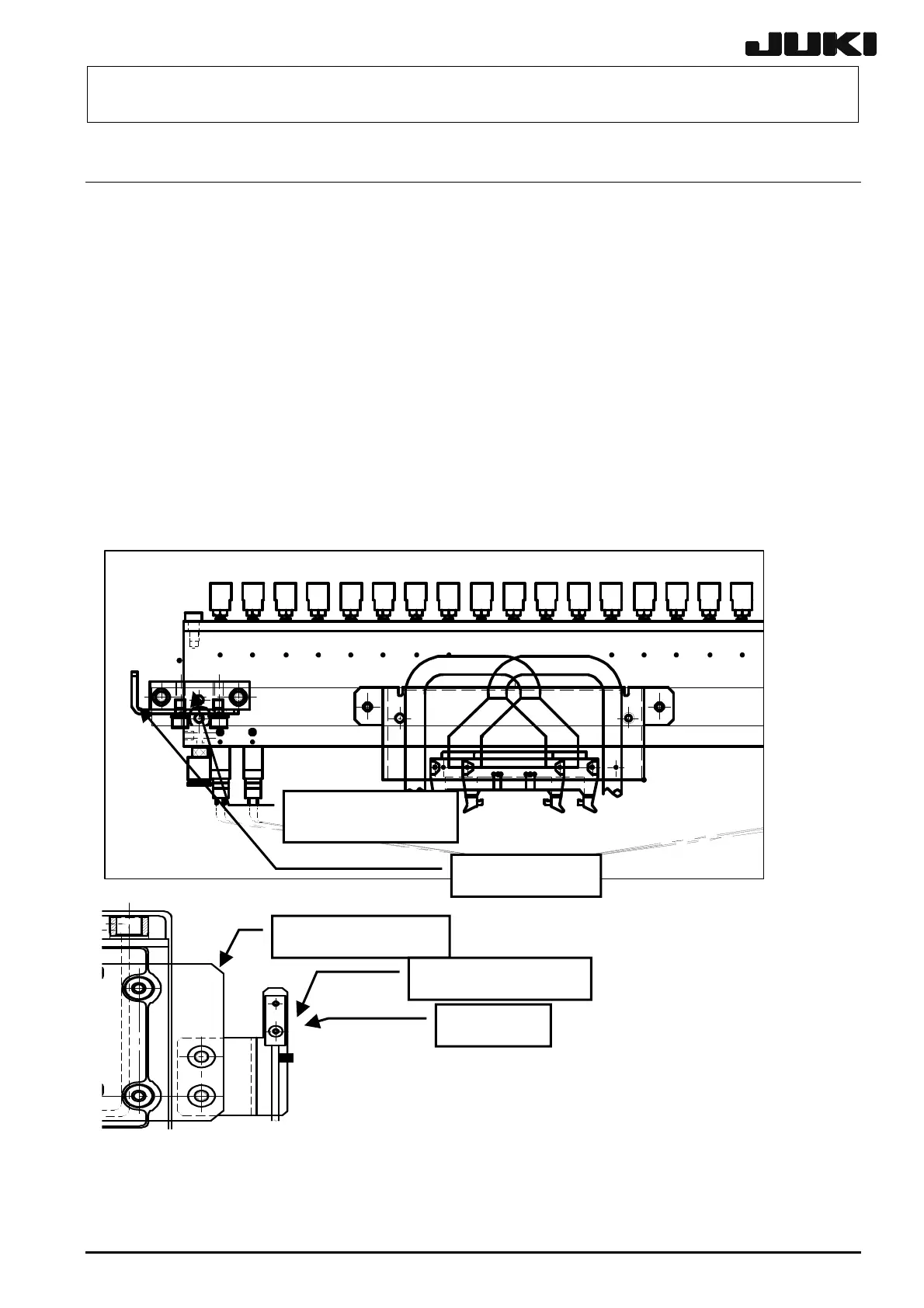

Figure 9-6-1
To Next Page
