KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
14-15
14-4-4. SYNQNET Relay Board
[Functions]
The SYNQNET relay board is a signal relay board that exchanges the signals among the
JGRMB board, SAFETY board, CARRY board, motor drivers, magnescales, and limit sensors.
[Jumper switch settings]

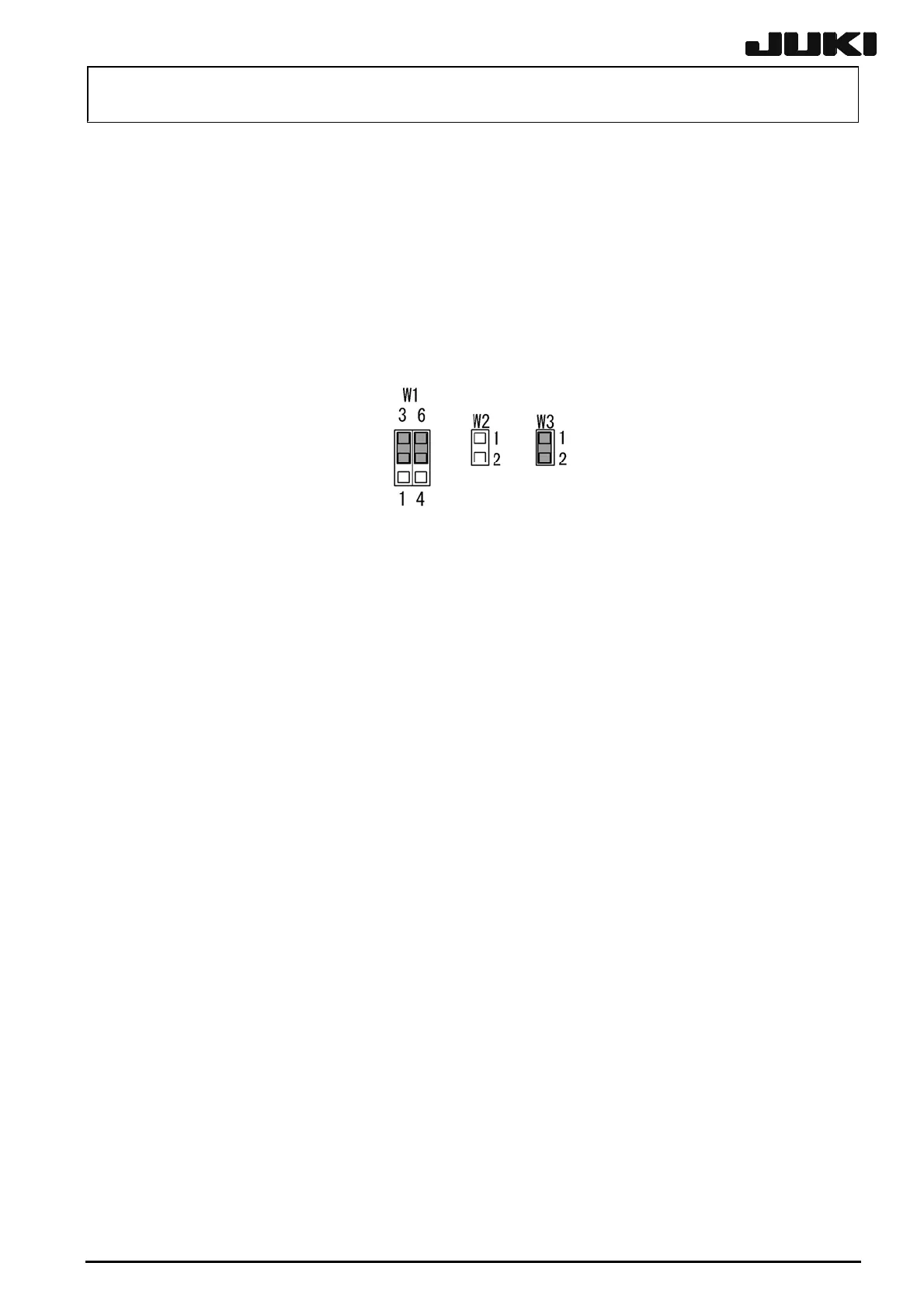

The jumper switches are as shown below. Check them when you set the board.
[Meaning of LED]
There are no LEDs on the SYNQNET relay board.
[Adjustment items after replacement]
There are no particular adjustment items.
Rev. 2.00
