KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
3-9

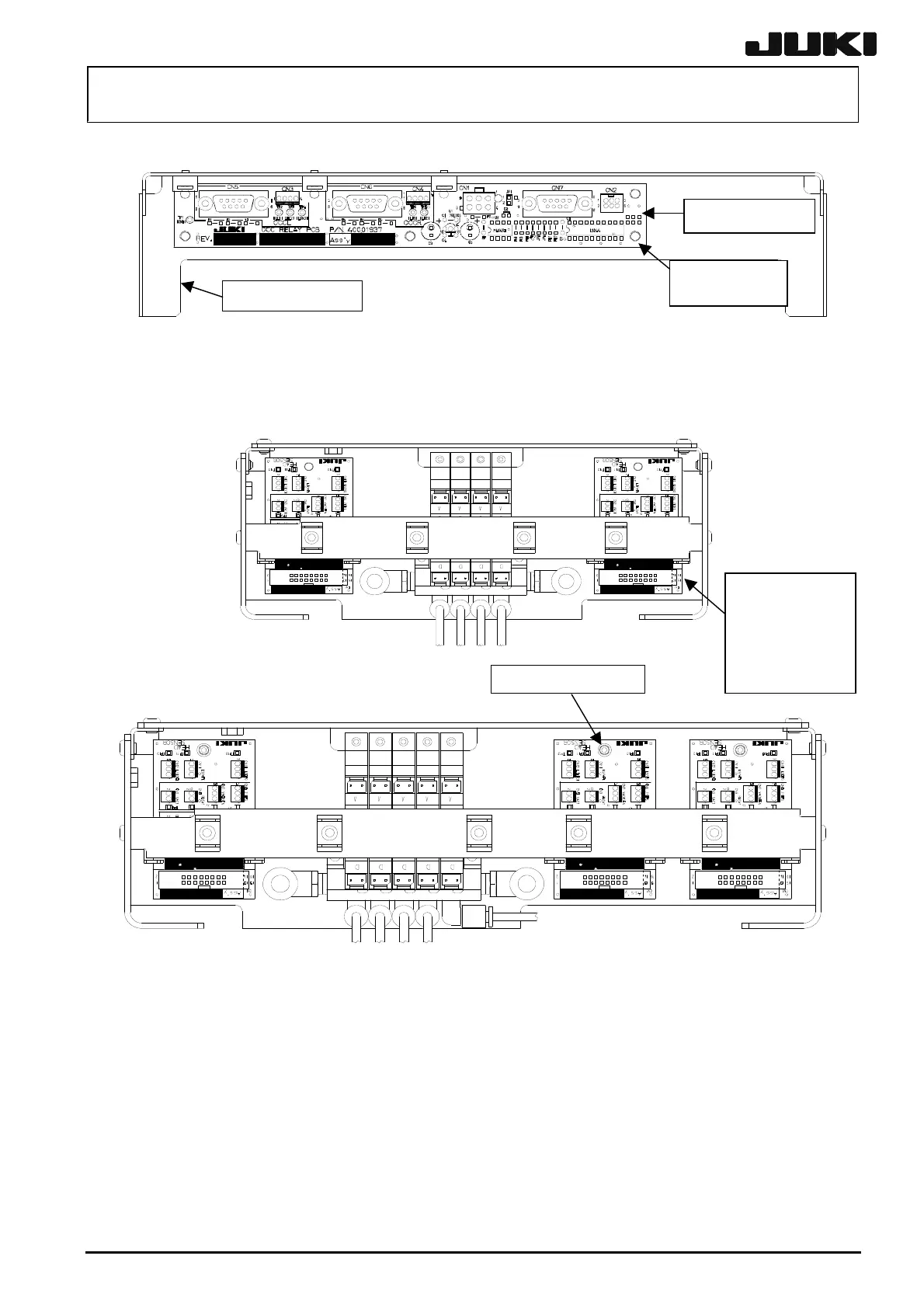

3-4-2. Replacing the OCC Relay Board Assembly
OCC relay board
Rev. 2.00
Figure 3-4-2 Replacing the OCC Relay Board Assembly
3-4-3. Replacing the Sensor Relay Board Assembly
Figure 3-4-3 Replacing the Head Sensor Board Assembly
(Top: KE-2050/50R/55R, bottom: KE-2060/60R)
OCC PCB base
Round head
screw (× 7)
Round head screw
Head sensor
board assembly
KE-2050/50R/55R
… × 2
KE-2060/60R
… × 3
