KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
8-4
8-3. Replacing the Light Boards
8-3-1. Transmission Light Board, Coaxial Light Board
(1) In the case of the coaxial light board, detach the cylinder, remove the bolts c and then replace
the board.
(2) In the case of the transmission light board, remove the SEMS bolts d and then replace the
board.
After the board has been replaced, make sure the cables are reconnected.

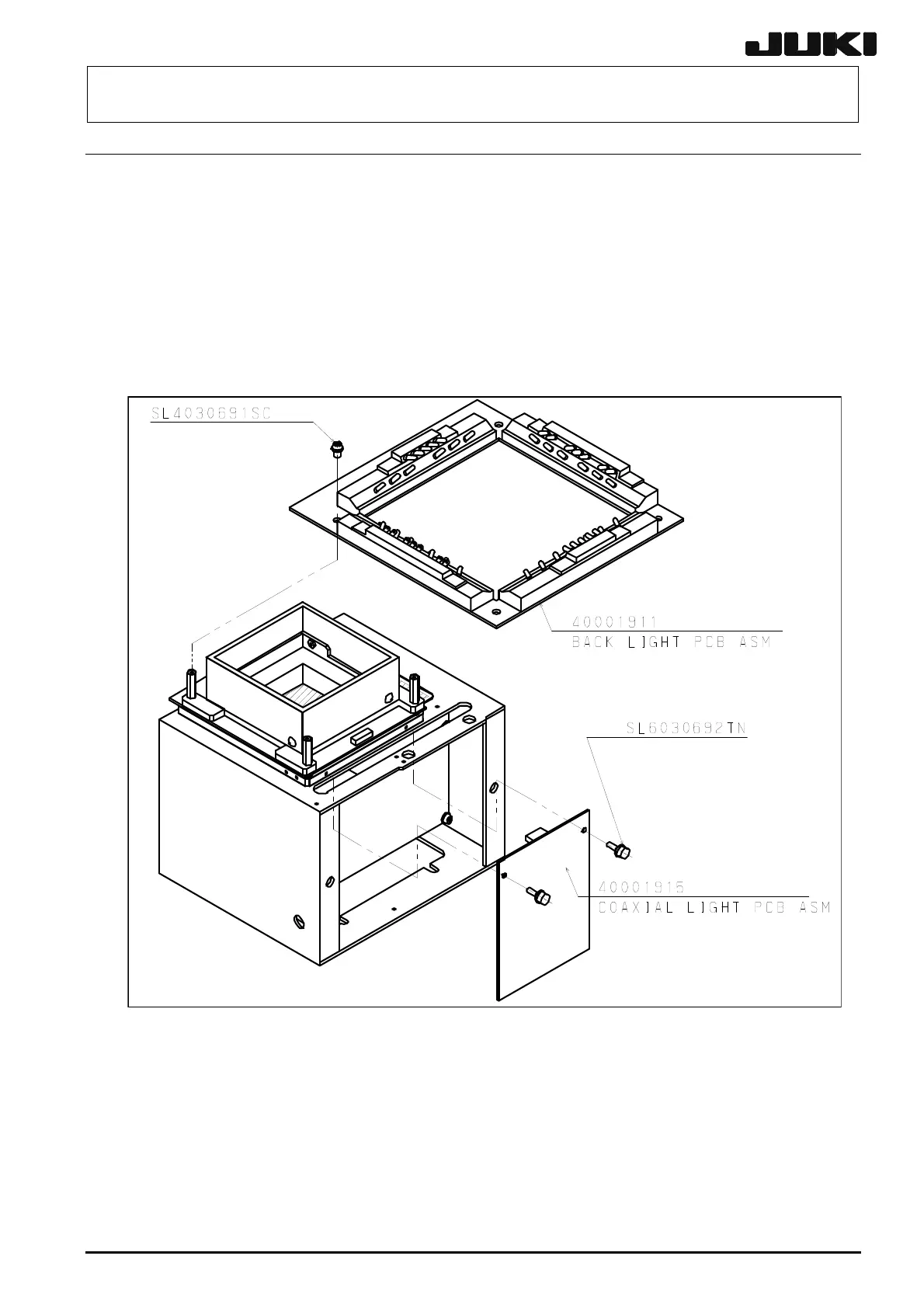

Figure 8-3-1
c
②
M3 × 6 SEMS bolt
(× 4)
M3 × 6 bolt (× 2)
Rev. 2.00
To Next Page
