KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
9-6
9-5. Replacing the Bank-Up Cylinder
(1) Turn off the power to the main unit.
(2) Turn on the selector switch, and the left and right roller levers to raise the bank lifter.
(3) Loosen the rod and lifter cylinder shaft of the bank-up cylinder to detach the bank-up cylinder
(cylinder to be replaced).
(4) Shut-down the main compressed air to the main unit (with the hand valve).
(5) Remove the left and right drive cylinder assembly mounting screws.
(6) Pull out the bank lifter upward. (Bank lifter to be replaced)
(7) Remove four bank-up cylinder mounting screws to detach the cylinder.
(8) Mount the speed controller on a new cylinder.
(9) Mount the cylinder and insert the bank lifter from the top.
(10) Screw the lifter cylinder shaft into the cylinder rod.
(11) Supply the main compressed air to the main unit.
(12) Adjust the speed controllers of the left and right cylinders. (See 9-6.)
(13) Mount the drive cylinder assembly.
(14) Mount the replacement table on the main unit.
(15) Turn on the power.
Bank lifte
Lifter cylinder shaft
40000589
PA630750300
ir c
linde

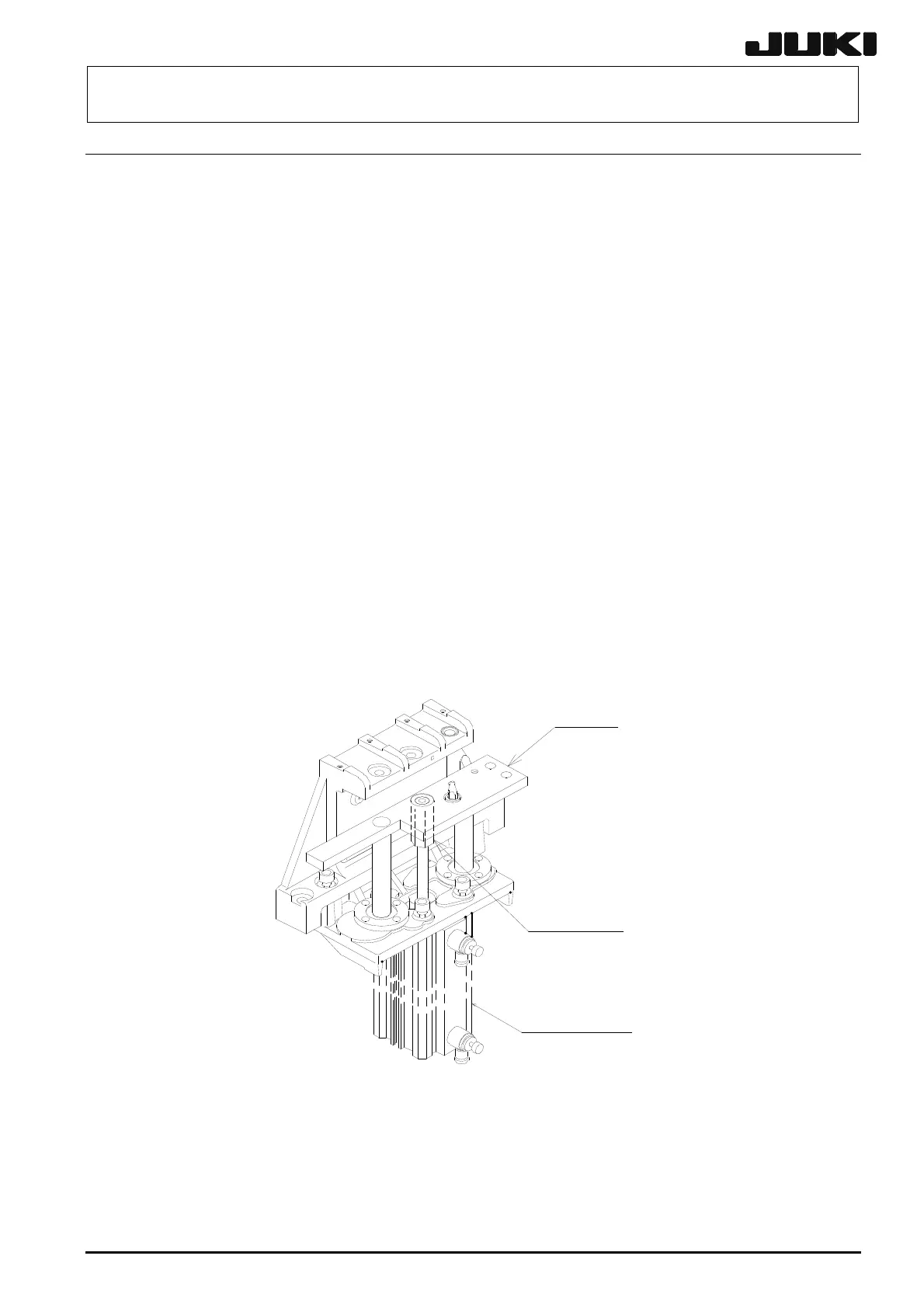

Figure 9-5-1
Rev. 2.00
