KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
1-19
1-7. Replacing the Plastic Rail
1-7-1. Replacing the X-Axis Plastic Rail
(1) Loosen the NM6060001SC and remove the X-axis plastic rail from the CB support T and the
X-axis frame assembly.
(2) Loosen the SL6061092TN and detach the cable clamp X.
(3) Open the flap of the X-axis plastic rail to remove the cables, and replace the X-axis plastic rail.
(4) Reassemble the components in the reverse order of disassembly. At this time, pay special
attention so that the cables in the plastic rail are properly arranged and not entangled.
CB support T
* Figure when viewed
from the rear
Plastic rail bracket B
Plastic rail bracket
Cable clam
X
X-axis plastic rail
X-axis frame
assembly

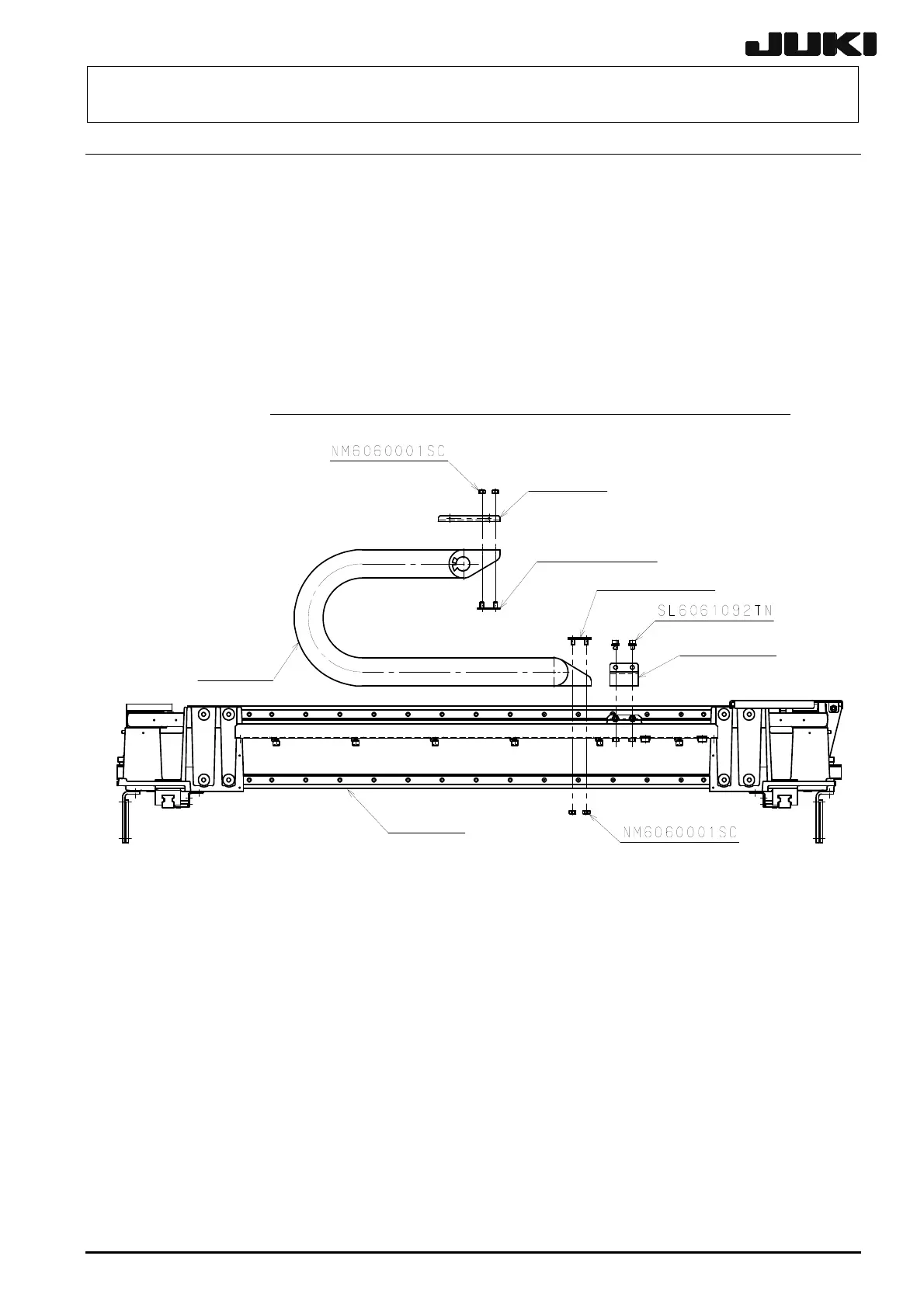

Figure 1-7-1-1
