KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
11-3
11-3. Replacing the Cover Open Switch
11-3-1. Switch Main Unit
(1) Disconnect the connectors from the operation switch board.
(2) Cut the tie-up band and remove the set screws (SL6041642TN) to replace the switch.
(3) Reassemble the components in the reverse order of disassembly.
Rev. 1.00
図１１－３－１
Right-side view
Front view
Left-side view Front view
No. Part No. Part name Qty.
c
40001402
Cover FUR 1
d
40001453
Safety switch bracket 1
e
NM3040520SF
Flange nut 2
f
E1348700000
Safety cover stopper 1
g
SL6041642TN
SEMS cap bolt 2
h
40002254
Cover open switch 1
i
40001404
Cover RUR 1
j
40001453
Safety switch bracket 1
k
40002254
Cover open switch 1
l
SL6041642TN
SEMS cap bolt 2
11
NM3040520SF Flange nut 2
12
NM6040001SC Nut 2

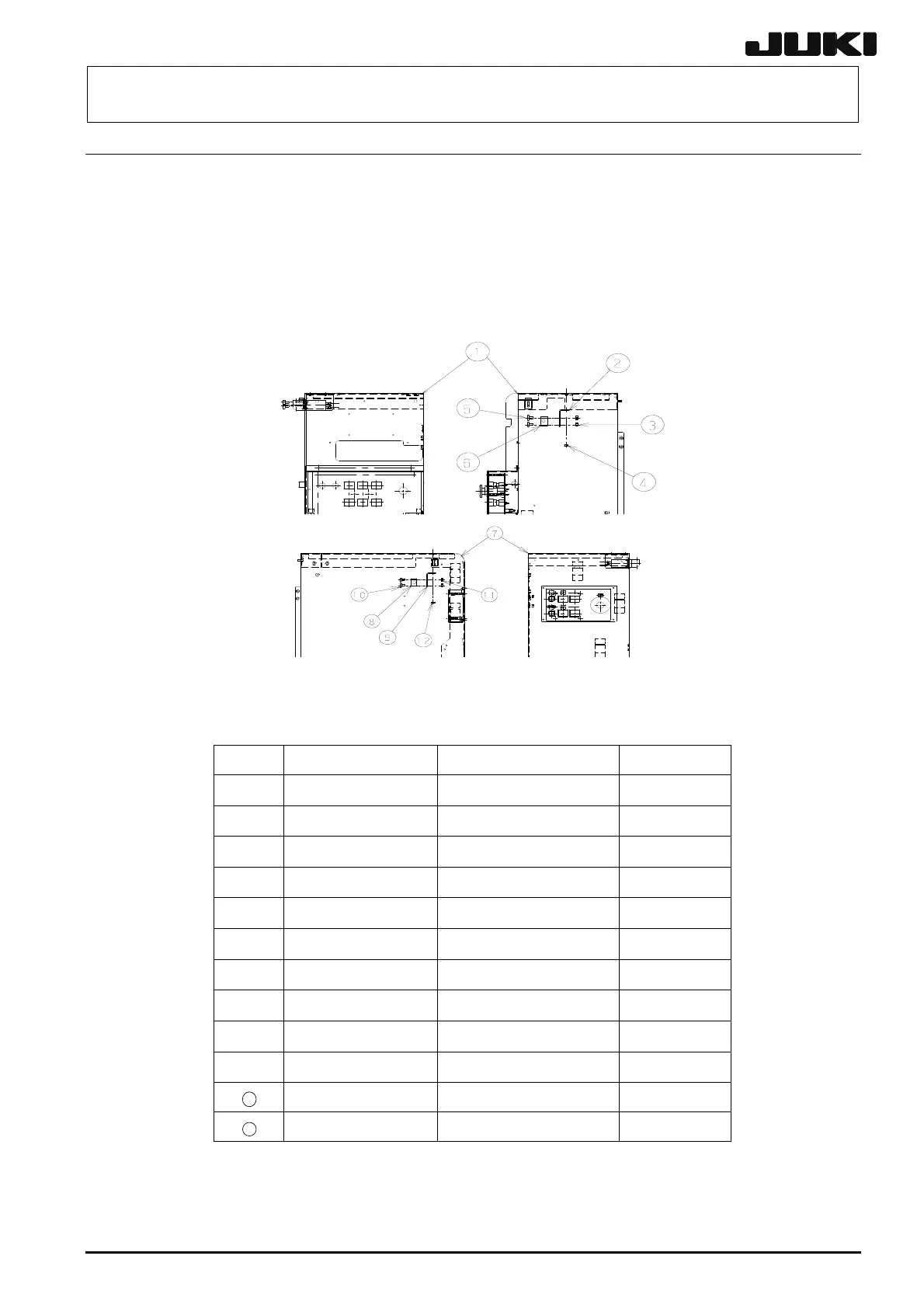

Figure 11-3-1
