KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
11-1
DANGER
To prevent any trouble caused by accidental machine start, always
shut-down the power before starting the maintenance and
adjustment work.
[11] SWITCHES
11-1. Replacing the Push-Button Switch
c Servo free switch
Rev. 1.00
d Start switch
e On-line switch
f Origin switch
g Stop switch
h Single cycle switch
i Feeder switch
j Keyboard setting switch
(1) Detach the PWB cover on the front of the
machine.
(2) Detach the operation board.
(3) To detach the switch, pull the switch toward you
while keeping the metal fittings on the switch
pushed by fingers from the back of the cover.
(For the configuration, see Section 14-9-3-2.)
(4) Reassemble the components in the reverse
order of disassembly.
1
2
3
4
5 6
3
7
8
7
6
8

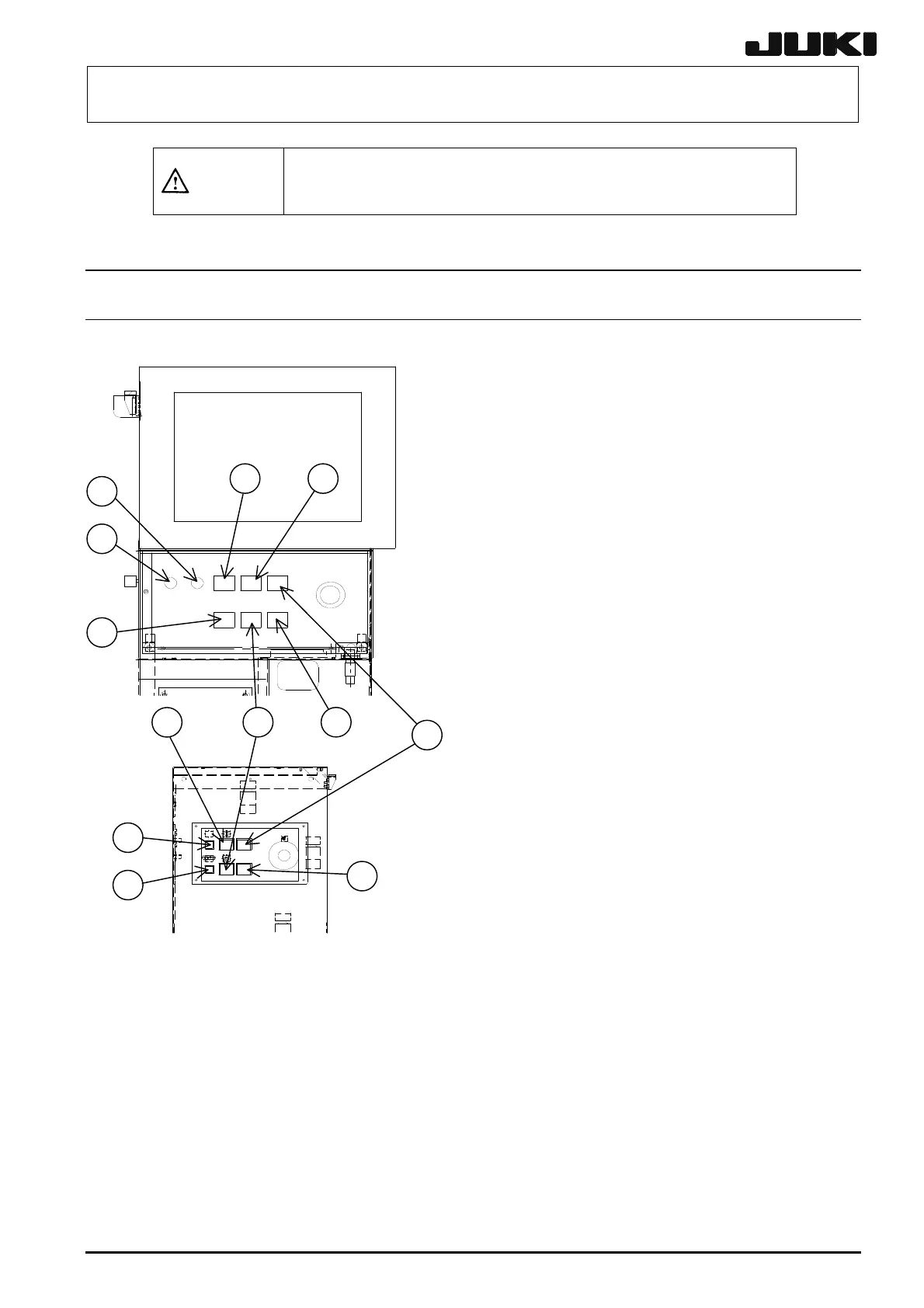

Figure 11-1-1
