KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
15-1
DANGER
To prevent any trouble caused by accidental machine start, always
shut-down the power before starting the maintenance and
adjustment work.
[15] AUTO BOARD WIDTH ADJUSTMENT
15-1. Assembling the AWC Bracket
M-, L- and E-Size
Rev. 2.00

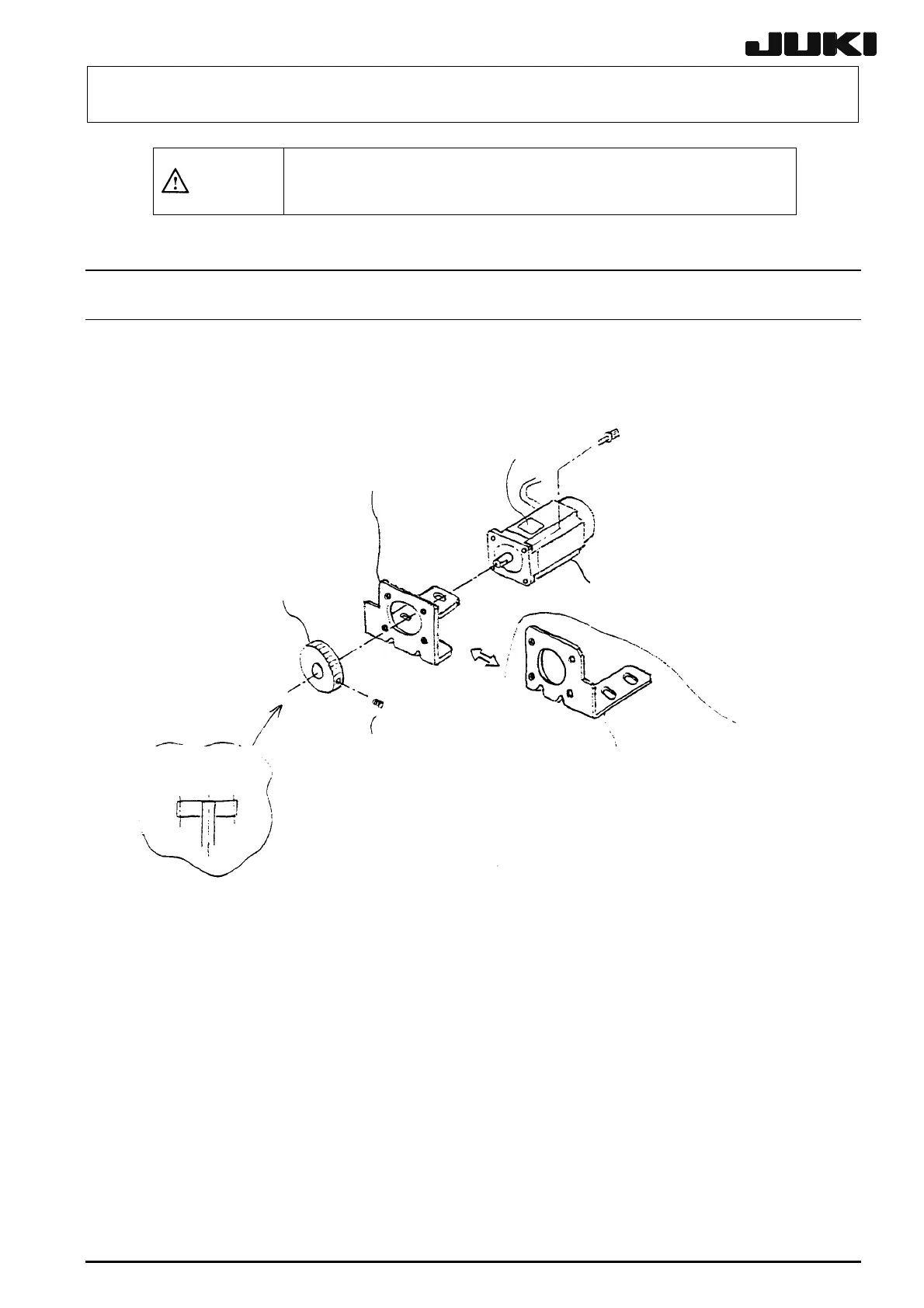

Figure 15-1-1
The above drawing shows the exploded view of the auto board width adjustment for
the M-size front reference machine.
•
奥基準の時は
AWCブラケットR(E2152725000)
•
エクストラの時は
AWCブラケットE(E2163725000)
E94347290A0
自動幅調整モータ組
止めねじ
SM8040602TP
×
2
端面を合せる
E2153725000
AWCプーリ (A)
E2151725000
AWCブラケット F
∗
銘版が上
セムス cap
SL6041092TN
×
4
For the rear reference machine, replace the AWC bracket F (E2151725000) with the AWC bracket
R (E2152725000).
For the L- or E-size machine, use the AWC bracket E (E2163725000).
• Rear reference machine:
AWC bracket R
(E2152725000).
• Machine with extra
specifications:
AWC bracket E
(E2163725000).
E94347290A0
Auto width adjustment motor
assembly
Fixing screw
SM8040602TP × 2
Make the end
faces matched.
E2153725000
AWC pulley (A)
E2151725000
AWC bracket F
SEMS cap bolt
SL6041092TN × 4
Nam s
upwards.
eplate face
To Next Page
