KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
14-17
14-4-6. MCM (Multi Nozzle Control Module) Board
(MNLA:E9609729000 or FMLA:E9610729000)
[Functions]
This board controls the part centering sensors (MNLA or FMLA).
Two kinds of MCM boards are provided, 4-axis board for MNLA (E9609729000) and 1-axis
board for FMLA (E9610729000). The board for MNLA can be substituted for that for FMLA.

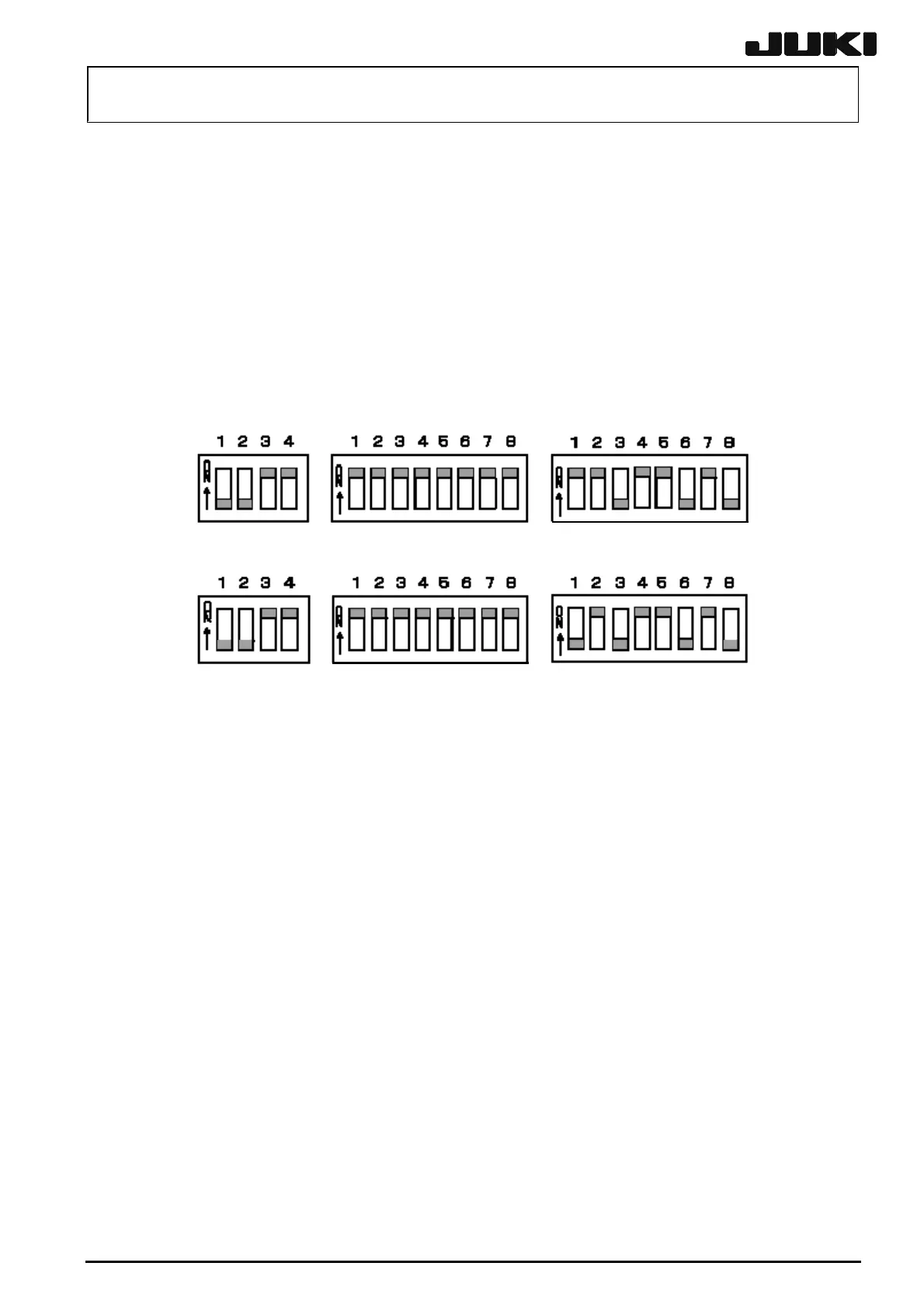

[Dip switch settings]
MCM board c (for L)
MCM board d (for R)
[Adjustment items after replacement]
Follow the steps below to update the FLASH memory.
c Select [Options] and [Change User Group], and then select [Serviceman].
d Select [Maintenance] and [MS Parameter Setup].
e Select [Others], [Version-up], and [MCM/MCMR].
Rev. 2.00
To Next Page
