KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
3-5
3-3. Replacing the HMS
3-3-1. Replacing the HMS Head
Washer assembled
hexagon socket head
cap bolt
× 2
Hexagon socket head cap bolt (× 2)
Positions of the mounting holes (from top to bottom)
For the machine with the component height of 06 mm
For the machine with the component height of 12 mm
For the machine with the component height of 20 mm

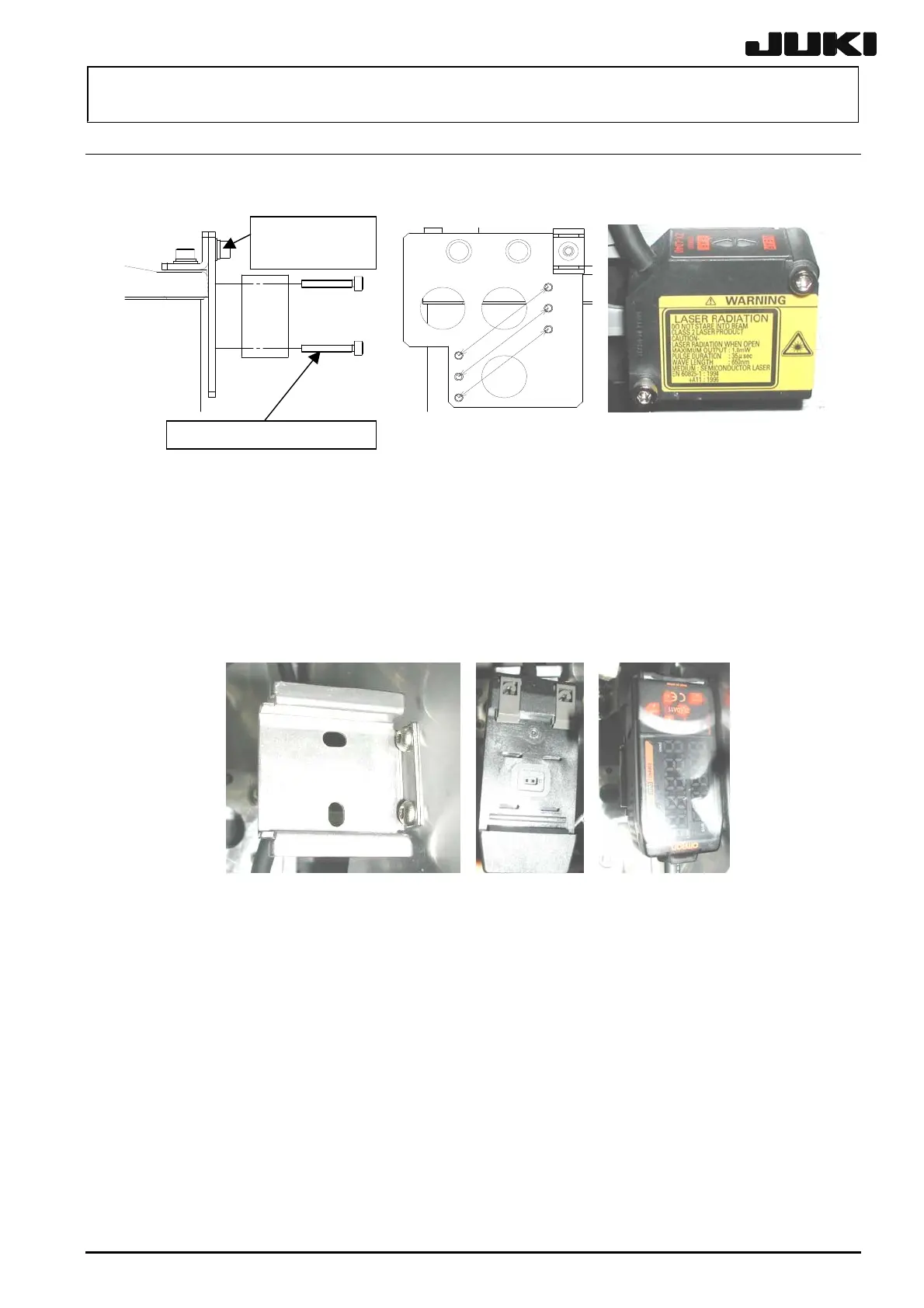

Figure 3-3-1 Replacing the HMS Head
3-3-2. Replacing the Amplifier
After the amplifier has been mounted, try to move it to check that it does not come off.
Figure 3-3-2 Replacing the Amplifier
(Left: amplifier base/center: rear view/right: amplifier mounted)
Rev. 2.00
To Next Page
