KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
15-7
15-5. Bundling the B/U Pin Detection Sensor
15-5-1. Mounting the B/U Pin Detection Sensor (Bundling the Cables)
M-Size
HX003140000
スパイラルチューブ
0.5 m
レールプレートRL
レールプレートRL側
レールプレートRR側
HX003140000
スパイラルチ
ューブ
0.5 m
レールプレートRR
∗
下に電磁弁が無い場合の束線引
き回し
∗
下に電磁弁が有る場合の束線引き回し。
∗
AWC OPドグ(M/L)
が付いている場合
ドグの止めねじで共
締めして下さい。
∗
下に電磁弁が無い場合の束線引
Rail plate RR side
Rev. 2.00
き回し
∗
下に電磁弁が有る場合の束線引き回し。
EA9500B0100
束線バンド
(SL6030692TN)
HX003440000
固定ベース
∗
AWC OPドグ
(M/L)が付い
ている場合ド
グの止めねじ
で共締めして
下さい。
束線バンド
(SL6030692TN
EA9500B0100
束線バンド
HX003440000
固定ベース
EA9500B0100
束線バンド
Rail plate RR
Rail plate RR
Rail plate RR
HX003140000
Spiral tube
0.5 m
EA9500B0100
Tie-up band
HX003440000
Fixing base
If the AWC OP
dog (M/L) is
provided, secure
the cable and
dog together
with the dog
fixing screw.
∗ Run the cables as shown above
if the solenoid valve is not provided

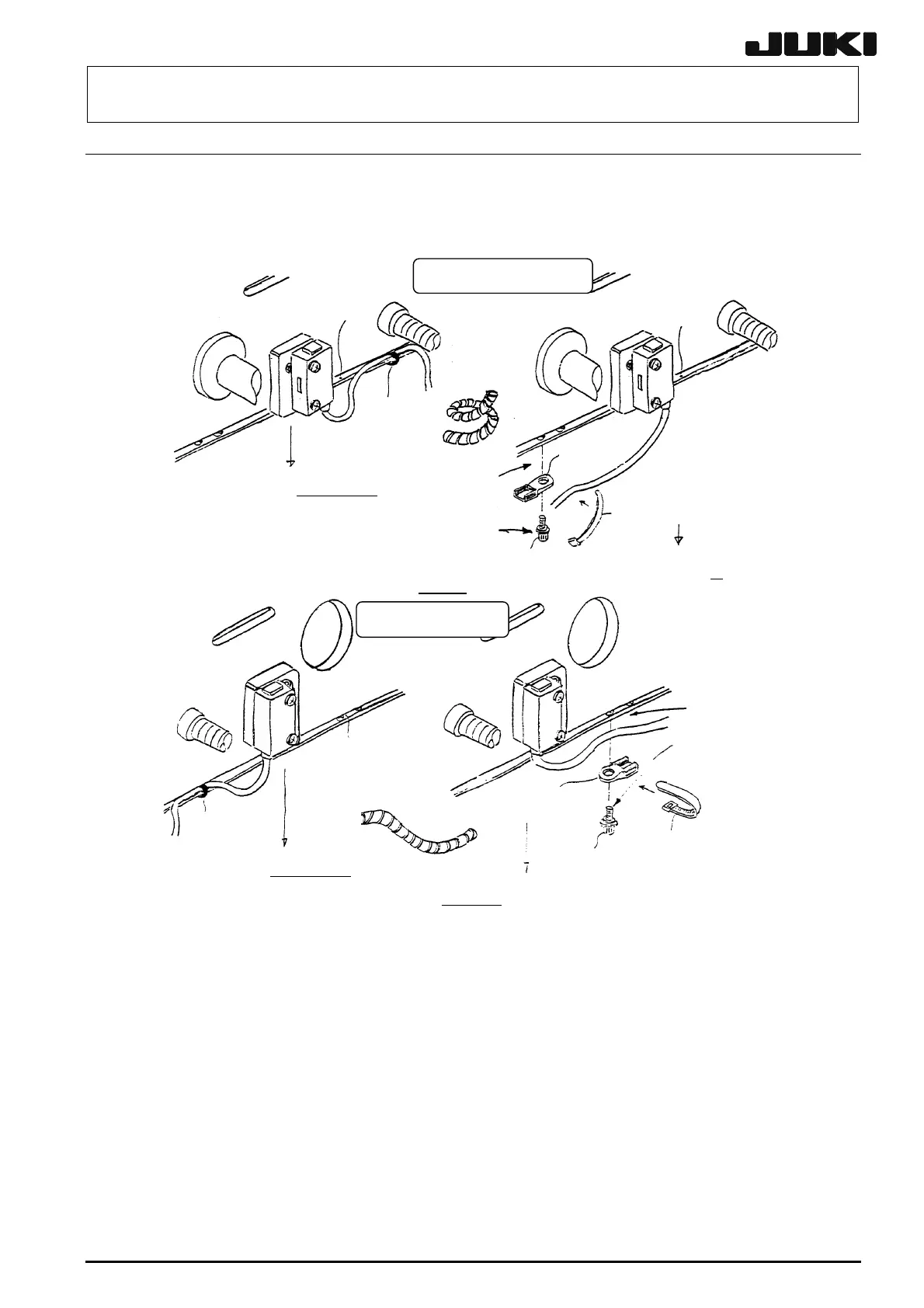

Figure 15-5-1-1
As shown above, how to run the cable may vary depending on the solenoid valve
mounting position. Wind the spiral tube (HX003140000) 0.5 m at the top of the cable
fixed by the tie-up band.
(Change the rail width between the maximum and minimum levels to check that the
cable does not interfere with other objects.)
∗ Run the cables as shown above
if the solenoid valve is not provided
below the sensor.
Rail plate RL side
Run the cables as shown above if the solenoid valve is
rovided below the sensor.
below the sensor.
EA9500B0100
Tie-up band
(SL6030692TN)
∗ If the AWC OP
dog (M/L) is
provided,
secure the
cable and dog
together with
the dog fixing
screw.
Rail plate RL
HX003140000
Spiral tube
0.5 m
HX003440000
Fixing base
Tie-up band
EA9500B0100
Tie-up band
Run the cables as shown above if the solenoid valve
is provided
below the sensor.
To Next Page
