1-S41

BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM

ENGINE

(7) Injection Nozzle

Nozzle Holder

1. Secure the nozzle retaining nut (7) with a vise.

2. Remove the nozzle holder (1), and take out parts inside.

(When reassembling)

• Assemble the nozzle in clean fuel oil.

• Install the push rod (4), noting its direction.

• After assembling the nozzle, be sure to adjust the fuel injection

pressure.

Tightening torque

Nozzle holder

34.3 to 39.2 N·m

3.5 to 4.0 kgf·m

25.3 to 28.9 ft-lbs

Overflow pipe retaining nut

19.6 to 24.5 N·m

2.0 to 2.5 kgf·m

14.5 to 18.1 ft-lbs

Nozzle holder assembly

49.0 to 68.6 N·m

5.0 to 7.0 kgf·m

36.2 to 50.6 ft-lbs

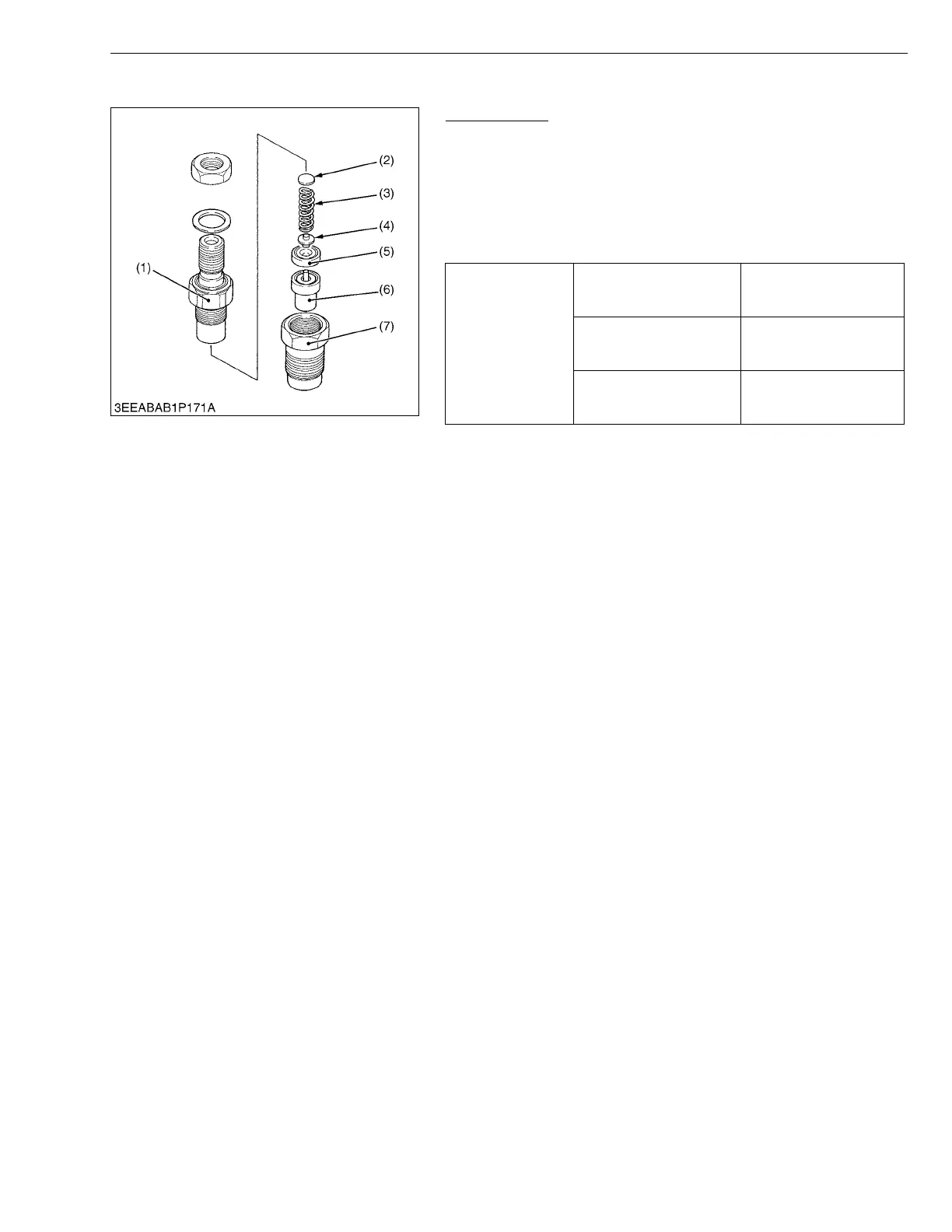

(1) Nozzle Holder

(2) Adjusting Washer

(3) Nozzle Spring

(4) Push Rod

(5) Distance Piece

(6) Nozzle Piece

(7) Nozzle Retaining Nut
