Kubota BX24 Workshop Manual

9-M3
BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM
BACKHOE

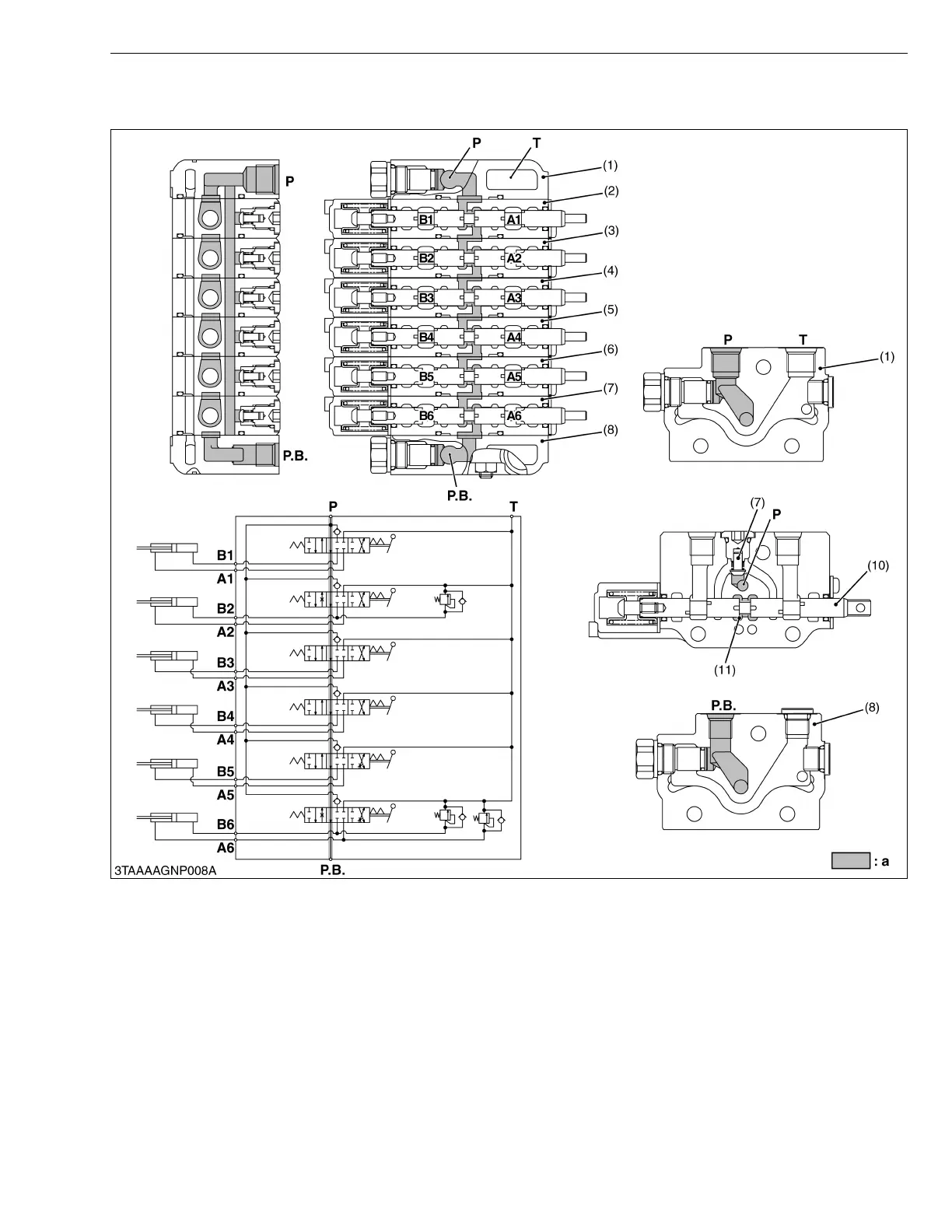

(2) Operation
 Neutral
Pressure-fed oil from the hydraulic pumps are delivered into P port in the inlet section (8).
As the load check valves (9) are kept closed in the neutral position, oil flows along the notched section of the spools
(10) to the P.B. port through the neutral passage (11).
Then the oil is fed to the front loader valve or transaxle case and pipe from the P.B. port.
(1) Inlet Section
(2) Bucket Control Valve
(3) Dipperstick Control Valve
(4) Stabilizer RH Control Valve
(5) Stabilizer LH Control Valve
(6) Boom Control Valve
(7) Swing Control Valve
(8) Outlet Section
(9) Load Check Valve
(10) Spool
(11) Neutral Passage
P : Pump Port
T : Tank Port
P.B. :Power Beyond Port
A1 : A1 Port
A2 : A2 Port
A3 : A3 Port
A4 : A4 Port
A5 : A5 Port
A6 : A6 Port
B1 : B1 Port
B2 : B2 Port
B3 : B3 Port
B4 : B4 Port
B5 : B5 Port
B6 : B6 Port
a : Low Pressure
KiSC issued 08, 2019 A

Kubota BX24 Specifications

General

Engine Power	23 hp (17.2 kW)
Transmission Type	Hydrostatic
Brakes	Wet disc
Power Steering	Yes
Rear PTO	540 RPM
Hydraulic System Type	Open center
3-Point Hitch	Category I
Engine Type	Diesel
Wheelbase	55.1 inches
Width	44.5 inches
Height	85.4 inches
PTO Power	17.7 hp
Gears	2-range (Hi/Lo)
