Kubota BX24 Workshop Manual

2-S23
BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM
TRANSAXLE

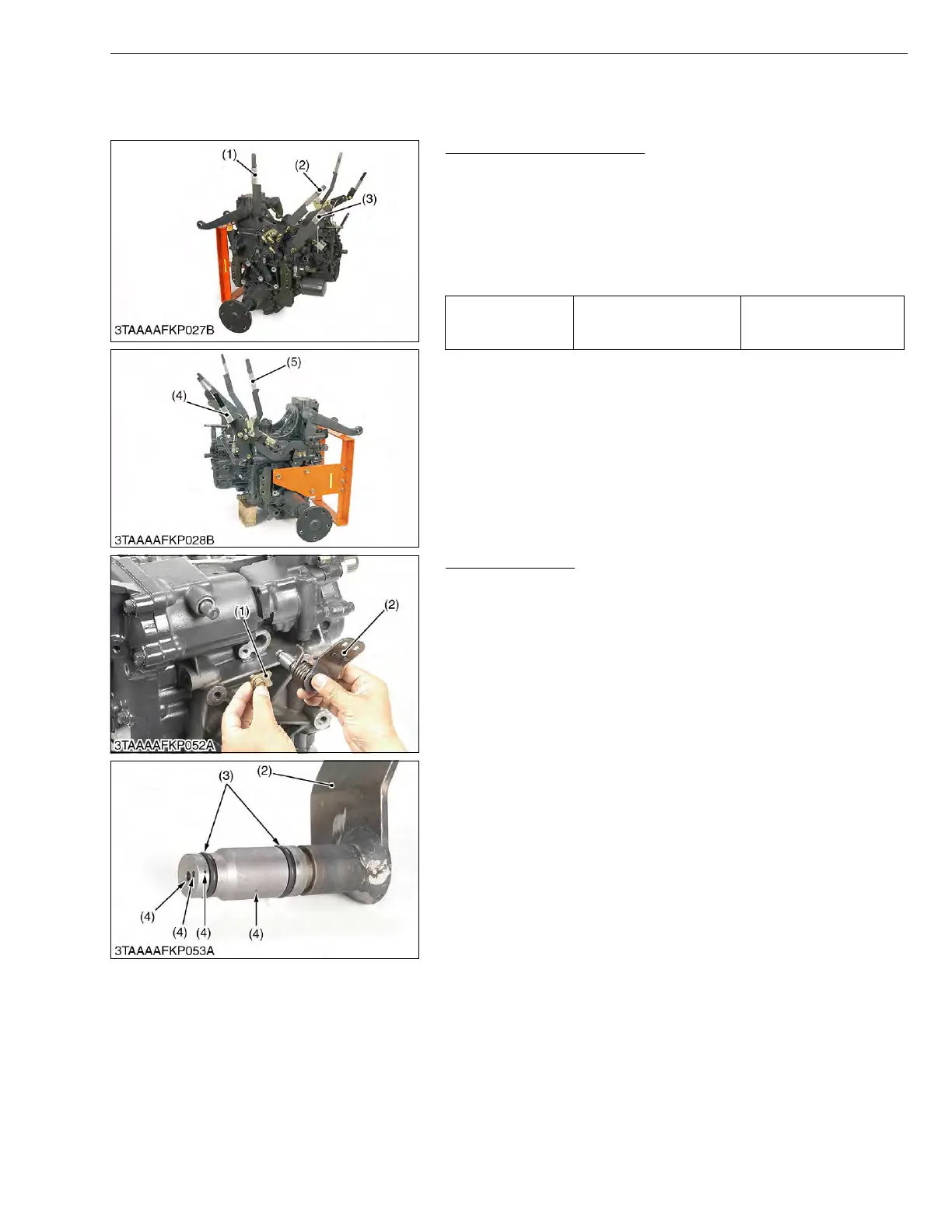

[3] DISASSEMBLING AND ASSEMBLING
(1) Hydrostatic Transmission
Levers and Mower Lift Arm
1. Tap out the spring pin from the range gear shift lever (1) and front
wheel drive lever (3), then remove the both levers.
2. Remove the hydraulic control lever (2).
3. Remove the PTO select lever (4) and PTO clutch control lever
(5).
(When reassembling)
• Apply grease to inside of the front coupling and rear mounting.
W1017118
PTO Clutch Valve
1. Remove the stopper (1).
2. Draw out the PTO clutch valve (2) from the transaxle assembly.
(When reassembling)
1. Clean the oil passages (4).
2. Apply the transmission fluid to the O-rings (3).
W1086372
Tightening torque
Hydraulic control lever
mounting bolt and nut
17.7 to 20.6 N·m
1.8 to 2.1 kgf·m
13.0 to 15.2 ft-lbs
(1) Range Gear Shift Lever
(2) Hydraulic Control Lever
(3) Front Wheel Drive Lever
(4) PTO Selcect Lever
(5) PTO Clutch Control Lever
(1) Stopper
(2) PTO Clutch Valve
(3) O-ring
(4) Oil Passage
KiSC issued 08, 2019 A

Kubota BX24 Specifications

General

Engine Power	23 hp (17.2 kW)
Transmission Type	Hydrostatic
Brakes	Wet disc
Power Steering	Yes
Rear PTO	540 RPM
Hydraulic System Type	Open center
3-Point Hitch	Category I
Engine Type	Diesel
Wheelbase	55.1 inches
Width	44.5 inches
Height	85.4 inches
PTO Power	17.7 hp
Gears	2-range (Hi/Lo)
