9-S2
BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM
BACKHOE
[3] LUBRICANTS
To prevent serious damage to hydraulic systems, use only specified fluid or its equivalent.
* KUBOTA original transmission hydraulic fluid
[4] MAINTENANCE CHECK LIST
To keep the machine working in good condition as well as to avoid any accident and trouble, carry out periodic
inspection and maintenance. Check the following points before use.
W1013874
[5] CHECK AND MAINTENANCE
• When checking and repairing, park the tractor on flat ground and apply the parking brake.
• When checking and repairing, lower the bucket and stabilizers, and stop the engine.
(1) Check Points of Each Use or Daily

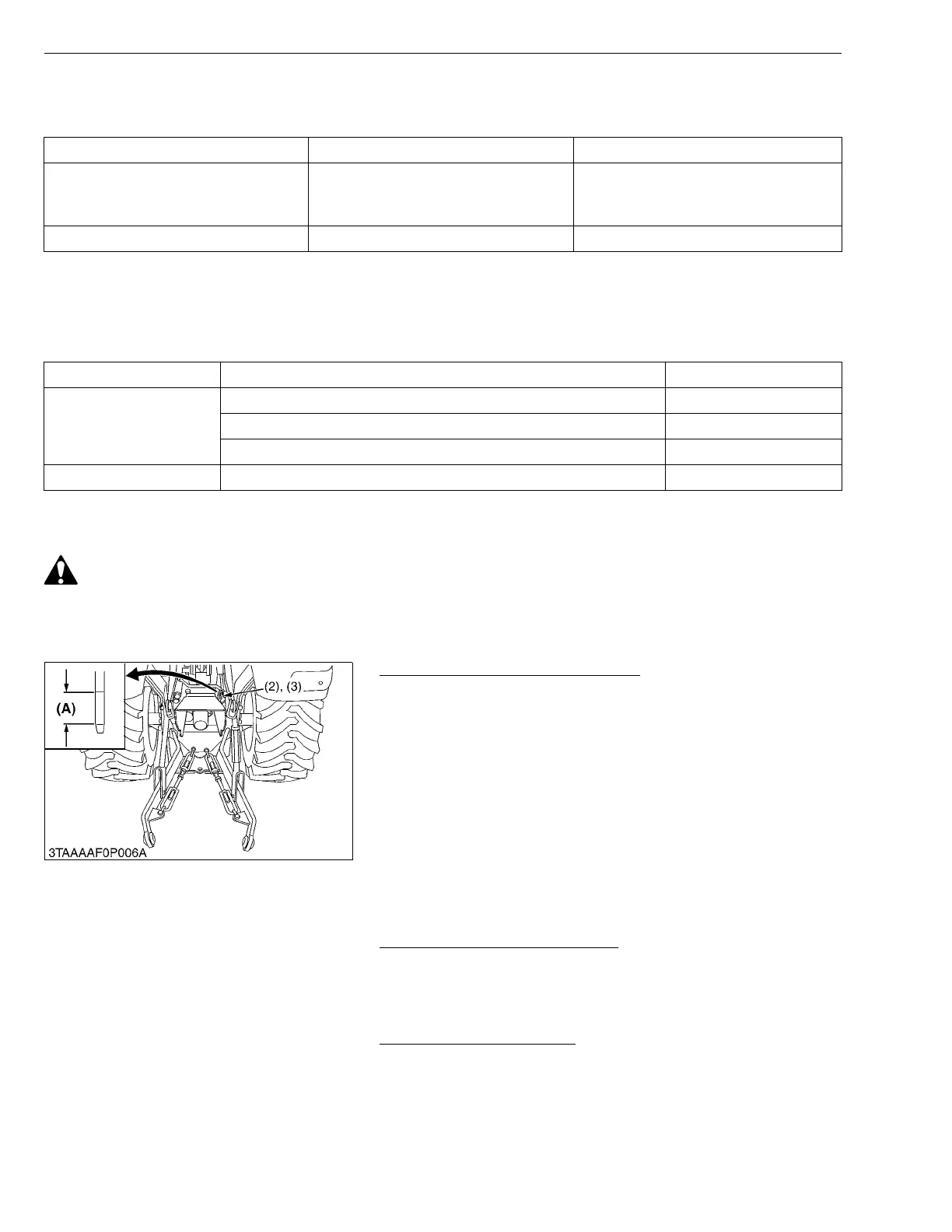

Checking Transmission Fluid Level
1. Check that the tractor hydraulic fluid level.
2. To check the oil level, remove the dipstick (1), wipe it clean,
replace it, and remove it again.
Check that the oil level is between the two notches.
3. If the level is too low, replenish new oil.
• Use only KUBOTA SUPER UDT fluid. Use of other oils may
damage the transmission or hydraulic system.
Refer to “LUBRICANTS, FUEL AND COOLANT”. (See page
G-7.)
W1011494
Retightening Backhoe Hardware
1. Check all hardware before daily operation.
2. If the screws, bolts and nuts are loosen, retighten them to the
specified torque.
W1011636
Checking Hydraulic Hoses
1. Check all hydraulic hoses for cuts or wear.
2. If defects are found, replace them.
W1011703
Place Capacity Lubricants
Transmission case
11.6 L
3.1 U.S.gals
2.6 Imp.gals
KUBOTA SUPER UDT fluid*
Grease nipples Until grease overflows Moly Ep Type grease
Service Interval Check Points Reference page
Daily (Each use) Check the transmission fluid level 9-S2
Retighten the backhoe hardware to torque value 9-S2
Check the hydraulic hoses 9-S2
Every 10 hours Grease all grease nipples 9-S3
(2) Dipstick A : Oil level acceptable within this
range.
To Next Page
