3-S5
BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM
FRONT AXLE

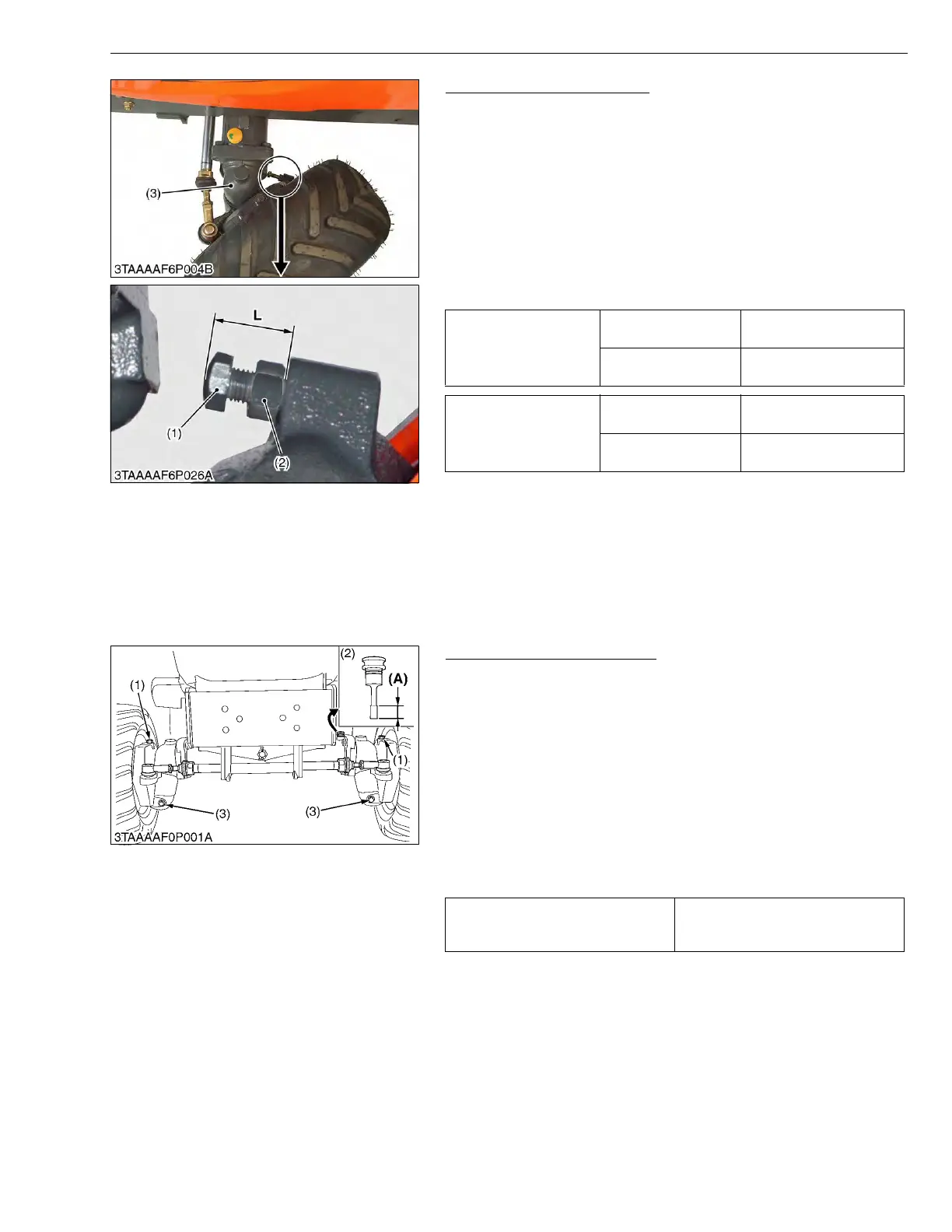

Front Wheel Steering Angle
1. Inflate the tires to the specified pressure.
2. Loosen the lock nut and shorten the length of stopper bolt LH (1).
3. Steer the wheels to the extreme left.
4. Lengthen the length of stopper bolt (1) until the stopper bolt
contacts with the bevel gear case (3).
5. Return the steering wheel to straight ahead and lengthen the
stopper bolt 1/2 turns from above position further.
6. Lock the stopper bolt by lock nut (2).
7. For adjusting the right steering angle, perform the same
procedure as mentioned in left steering angle.
(Reference)
W1011846
[2] PREPARATION
• Before proceding this section, disassembling the loader assembling and backhoe . (Refer to section 8 and
9.)
(1) Separating Front Axle Assembly
Draining Front Axle Case Oil
1. Place the oil pans underneath the front axle case.
2. Remove both right and left hand side drain plugs (3) and filling
plug (2) to drain the oil.
3. After draining, reinstall the drain plugs (3).
(When reassembling)
• When re-filling, remove the right and left breather plugs (1).
• After ten minutes, check the oil level again, add oil to
prescribed level.
• Use KUBOTA SUPER UDT fluid or SAE80, 90 gear oil.
Refer to “LUBRICANTS, FUEL AND COOLANT”. (See page
G-7.)
W1012192
Steering angle
Right side
0.84 to 0.87 rad
48 to 50
Left side
0.92 to 0.96 rad
53 to 55
Length of adjusting bolt
(L)
Right side
23 mm
0.91 in.
Left side
16 mm
0.63 in.
(1) Stopper Bolt LH
(2) Lock Nut
(3) Bevel Gear Case
Oil Capacity
4.7 L
5.0 U.S.qts
4.1 Imp.qts
(1) Breather Plug
(2) Filling Plug with Dipstick
(3) Drain Plug
(A) Oil level is acceptable within this
range.
