Kubota BX24 Workshop Manual

6-M11
BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM
ELECTRICAL SYSTEM

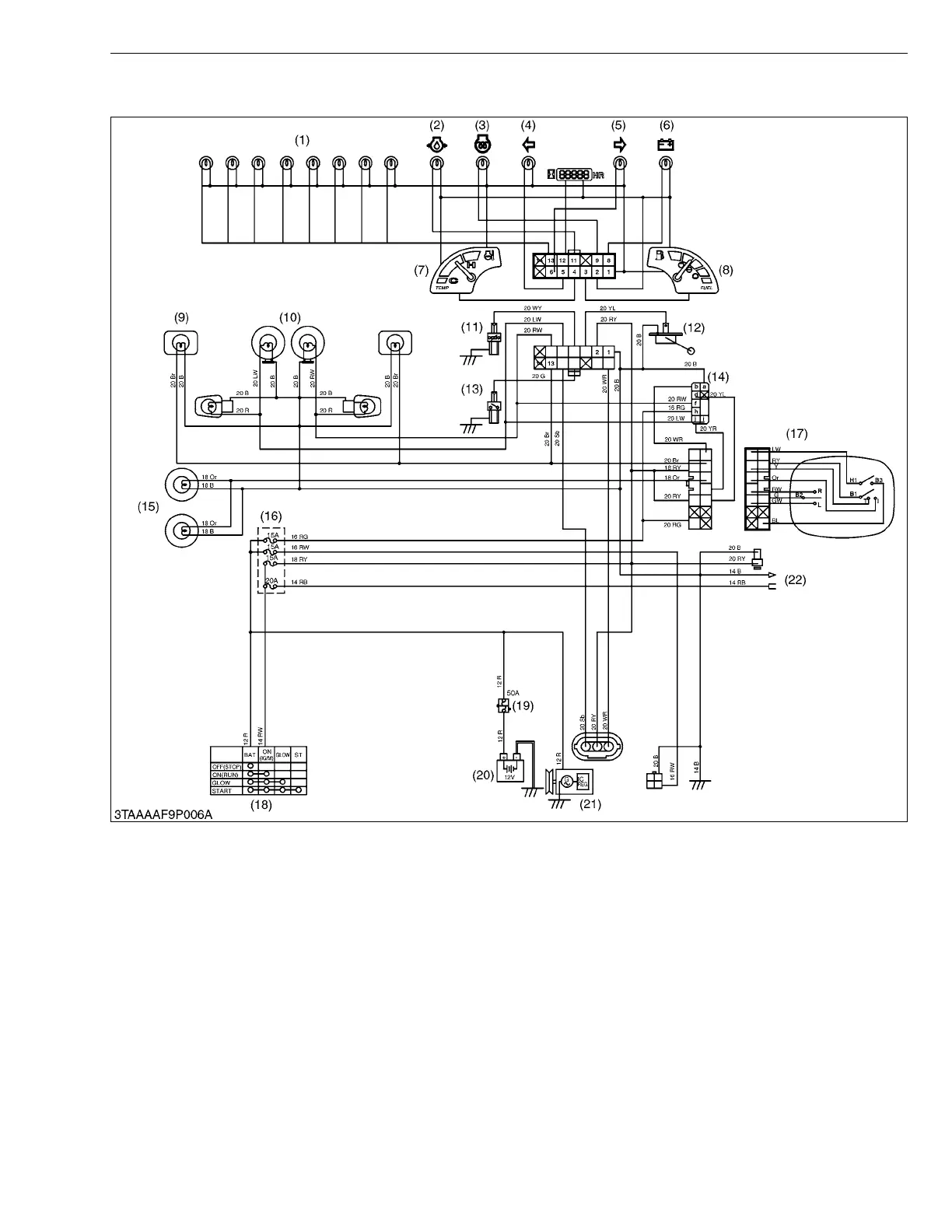

4. LIGHTING SYSTEM
The lighting system consists of main switch, head light switch, turn signal light switch, hazard switch, head lights,
turn signal lights, tail lights,and etc..
(1) Illumination Light
(2) Oil Pressure Lamp
(3) Glow Lamp
(4) Blinker (Left)
(5) Blinker (Right)
(6) Battery Charge Lamp
(7) Water Temperature Gauge
(8) Fuel Gauge
(9) Tail Light (12.8W)
(10) Hazard Lamp (23W)
(11) Thermo Unit
(12) Fuel Sensor
(13) Oil Pressure Switch
(14) Flasher Unit
(15) Head Light (37.5W)
(16) Fuse
(17) Combination Switch
(18) Main Switch
(19) Slow Blow Fuse
(20) Battery
(21) Alternator
(22) Working Light
KiSC issued 08, 2019 A

Kubota BX24 Specifications

General

Engine Power	23 hp (17.2 kW)
Transmission Type	Hydrostatic
Brakes	Wet disc
Power Steering	Yes
Rear PTO	540 RPM
Hydraulic System Type	Open center
3-Point Hitch	Category I
Engine Type	Diesel
Wheelbase	55.1 inches
Width	44.5 inches
Height	85.4 inches
PTO Power	17.7 hp
Gears	2-range (Hi/Lo)
