Kubota BX24 Workshop Manual

5-S18
BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM
HYDRAULIC SYSTEM

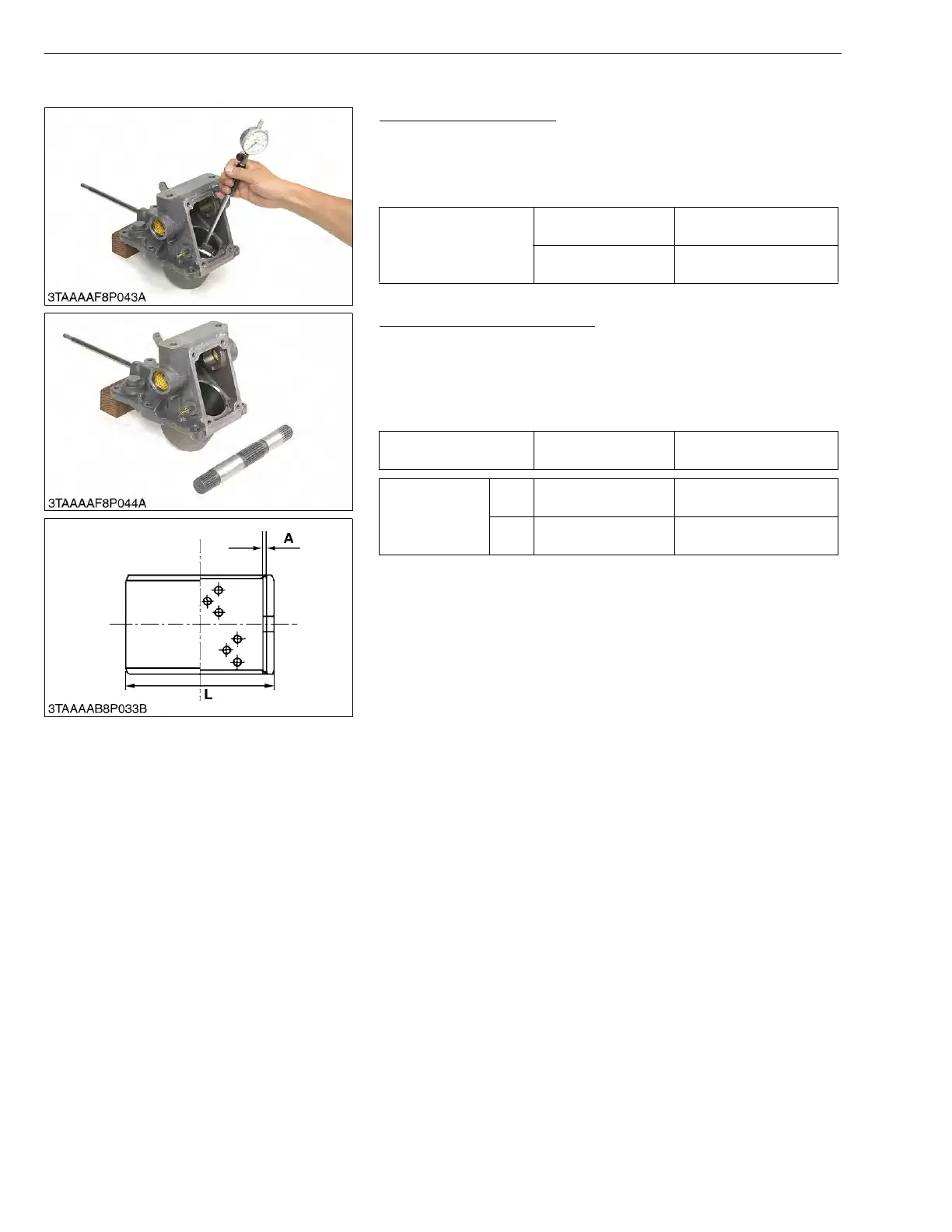

(2) Hydraulic Cylinder
Hydraulic Cylinder Bore
1. Check the cylinder internal surface for scoring or damage.
2. Measure the cylinder I.D. with a cylinder gauge.
3. If the measurement exceeds the allowable limit, replace the
hydraulic cylinder block.
W10171300
Hydraulic Arm Shaft Bushing
1. Visually inspect the DX bushings for signs of wear or damage.
(The DX bushing tends to show concentrated wear.)
2. If the DX bushing is worn beyond the alloy thickness (A), replace
it.
(Reference)
W1016329
Cylinder I.D.
Factory spec.
80.05 to 80.15 mm
3.1516 to 3.1555 in.
Allowable limit
80.2 mm
3.1575 in.
Hydraulic arm shaft
bushing
Alloy thickness (A)
0.57 mm
0.0224 in.
Hydraulic arm
shaft
LH O.D.
31.925 to 31.950 mm
1.2569 to 1.2579 in.
RH O.D.
29.925 to 29.950 mm
1.1781 to 1.1791 in.
A : Alloy Thickness L : Outside Diameter
KiSC issued 08, 2019 A

Kubota BX24 Specifications

General

Engine Power	23 hp (17.2 kW)
Transmission Type	Hydrostatic
Brakes	Wet disc
Power Steering	Yes
Rear PTO	540 RPM
Hydraulic System Type	Open center
3-Point Hitch	Category I
Engine Type	Diesel
Wheelbase	55.1 inches
Width	44.5 inches
Height	85.4 inches
PTO Power	17.7 hp
Gears	2-range (Hi/Lo)
