Kubota BX24 Workshop Manual

G-22
BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM
G GENERAL
Adjusting Brake Pedal Free Travel
CAUTION
• Stop the engine, remove the key, lower the implement to the
ground, and chock the wheels before checking brake pedal.
• Even if the brake pedal free travel is within the limitation,
adjust the brake pedal following the procedure below.
1. Release the parking brake.
2. Loosen the lock nut and turn the turnbuckle to adjust the rod
length so that the brake pedal free travel is 10 mm (0.4 in.).
3. Extend the turnbuckle one additional turn.
4. Retighten the lock nut.
5. Depress the brake pedal several times and make sure the brake
pedal free travel is from 25 to 35 mm (1.0 to 1.4 in.).
W1018144
[5] CHECK POINTS OF EVERY 200 HOURS
Replacing Engine Oil Filter
1. See page G-12.
W1018516
Checking Radiator Hoses and Hose Clamps
Check to see if radiator hoses are properly fixed every 200 hours
of operation or six months, whichever comes first.
1. If hose clamps are loose or water leaks, tighten clamps securely.
2. Replace hoses and tighten hose clamps securely, if radiator
hoses are swollen, hardened or cracked.
3. Properly dispose of used coolant.
Replace hoses and hose clamps every 2 years or earlier if
checked and found that hoses are swollen, hardened or cracked.
 Precaution at Overheating
Take the following actions in the event the coolant temperature
be nearly or more than the boiling point, what is called
“Overheating”.
1. Stop the machine operation in a safe place and keep the engine
idling unloaded.
2. Don’t stop the engine suddenly, but stop it after about 5 minutes
of unloaded idling.
3. Keep yourself well away from the machine for an additional 10
minutes or until the steam has blown out.
4. Checking that there is no danger such as burn, get rid of the
cause of overheating according to the manual, see “ENGINE”
section, and then, start the engine again.
W1018562

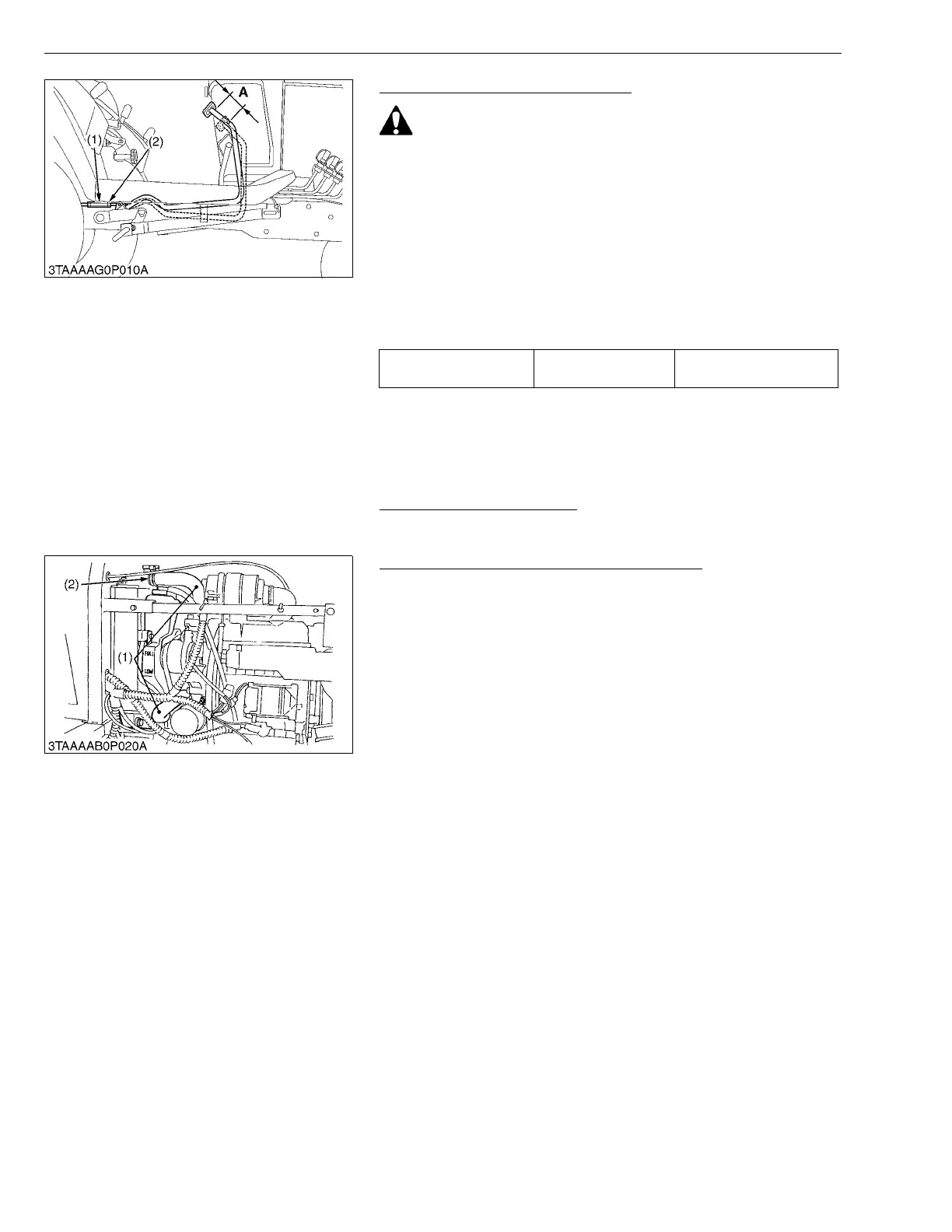

Brake pedal free travel Factory spec.
25 to 35 mm
1.0 to 1.4 in.
(1) Turnbuckle
(2) Lock Nut
A : Free Travel
(1) Radiator Hose (2) Hose Clamp
KiSC issued 08, 2019 A

Kubota BX24 Specifications

General

Engine Power	23 hp (17.2 kW)
Transmission Type	Hydrostatic
Brakes	Wet disc
Power Steering	Yes
Rear PTO	540 RPM
Hydraulic System Type	Open center
3-Point Hitch	Category I
Engine Type	Diesel
Wheelbase	55.1 inches
Width	44.5 inches
Height	85.4 inches
PTO Power	17.7 hp
Gears	2-range (Hi/Lo)
