2-S8

BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM

TRANSAXLE

4. CHECKING, DISASSEMBLING AND SERVICING

[1] CHECKING AND ADJUSTING

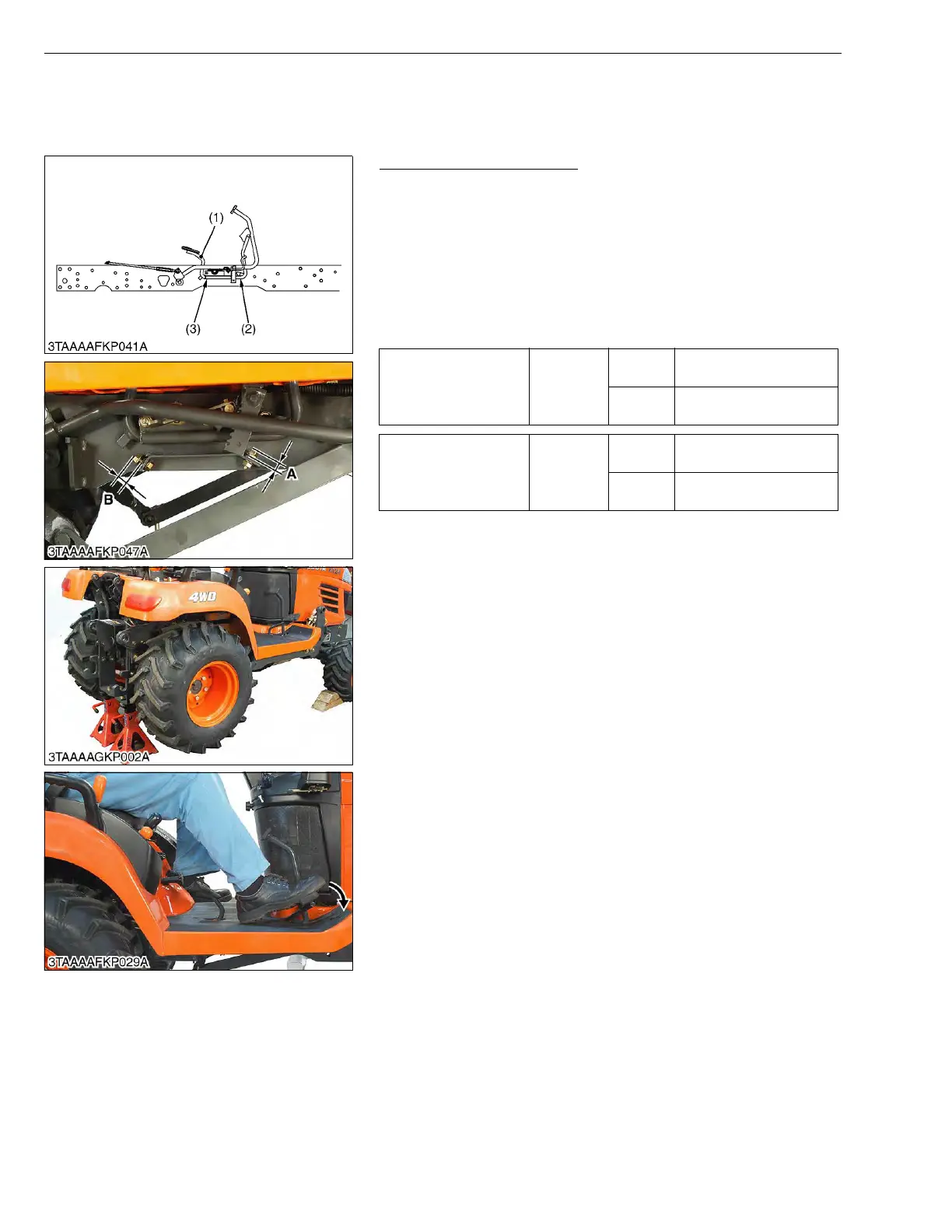

Adjusting Maximum Speed

 Forward

1. Depress the speed control pedal (1) all the way and lengthen the

stopper bolt (2) until it touches the speed control pedal (2).

2. Adjust the stopper bolt (2) length A to 17.0 mm (0.67 in.) and lock

it securely.

 Reverse

1. Adjust the stopper bolt (3) length B to 17.5 mm (0.69 in.) and lock

it securely.

(Reference)

W1012590

Stopper bolt length Reference

Forward

17.0 mm

0.67 in.

Reverse

17.5 mm

0.69 in.

Maximum speed Reference

Forward

13.0 to 14.0 km/h

8.1 to 8.8 mph

Reverse

10.0 to 11.0 km/h

6.3 to 6.9 mph

(1) Speed Control Pedal

(2) Stopper Bolt (Forward)

(3) Stopper Bolt (Reverse)

A : Stopper Bolt Length (Forward)

B : Stopper Bolt Length (Reverse)

KiSC issued 08, 2019 A
