2-S38

BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM

TRANSAXLE

(4) Assembling Shafts

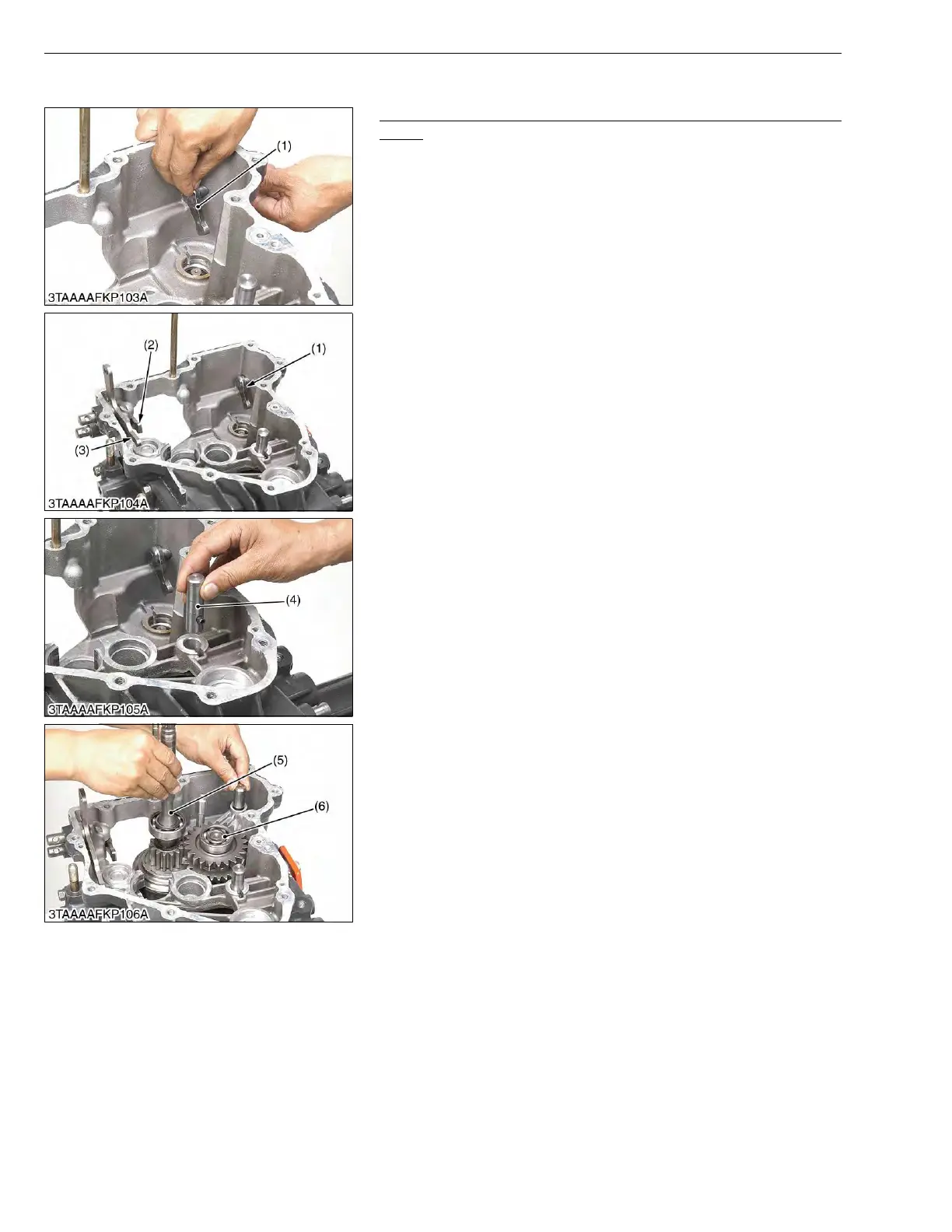

Assembling Select Arms and HST Pump Shaft (PTO Clutch

Shaft)

1. Install the PTO select arm (1).

2. Install the range shift arm (2) and the front wheel drive shaft arm

(3).

3. Install the idle gear shaft.

NOTE

• Install the rear PTO cover and the PTO select gear shaft

before installing HST pump shaft assembly.

4. After installing the rear PTO cover to the transaxle case, install

the PTO select gear shaft (6). (Refer to page 2-S37.).

5. Install the HST pump shaft (PTO clutch shaft) (6).

(When reassembling)

• Take care not to damage the O-rings on the arms.

W1092555

(1) PTO Select Arm

(2) Range Shift Arm

(3) Front Wheel Drive Shift Arm

(4) Mid-PTO Idle Gear Shaft

(5) HST Pump Shaft (PTO Clutch Shaft)

(6) PTO Select Gear Shaft

KiSC issued 08, 2019 A
