2-S42
BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM
TRANSAXLE

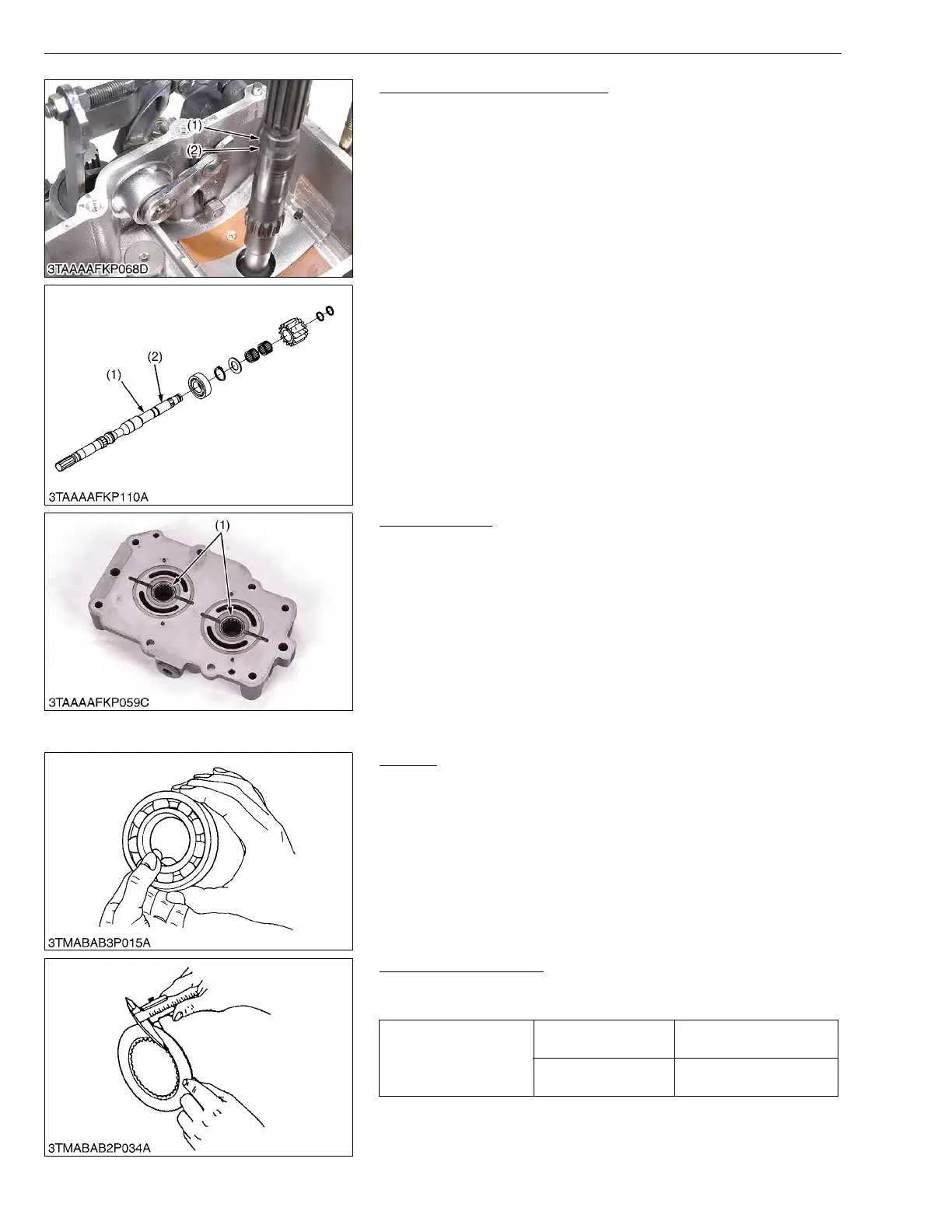

Pump Shaft (PTO Clutch Shaft)
1. Check the seal surface (1) and the bearing surface.
2. If the pump shaft is rough or grooved, replace it.
3. If the ball bearing or the needle bearing is worn, replace it.
W1094465
Needle Bearing
1. Check the needle bearing (1) for wear.
2. If the needle bearing (1) are worn, replace them.
W1094709
(2) Transaxle Case
Bearing
1. Hold the inner race, and push and pull the outer race in all
directions to check wear and roughness.
2. Apply the transmission oil to the bearing, and hold the inner race.
And turn the outer race to check rotation.
3. If there are any defect, replace the bearing.
W1094849
PTO Clutch Disc Wear
1. Measure the thickness of PTO clutch disc with vernier calipers.
2. If the thickness is less than the allowable limit, replace it.
W1024320
(1) Seal Surface (2) Bearing Surface
(1) Needle Bearing
Thickness of PTO clutch
disc
Factory spec.
1.50 to 1.70 mm
0.060 to 0.066 in.
Allowable limit
1.35 mm
0.053 in.
To Next Page
