Kubota BX24 Workshop Manual

2-M8
BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM
TRANSAXLE
(3) HST Control Linkage
W1020319

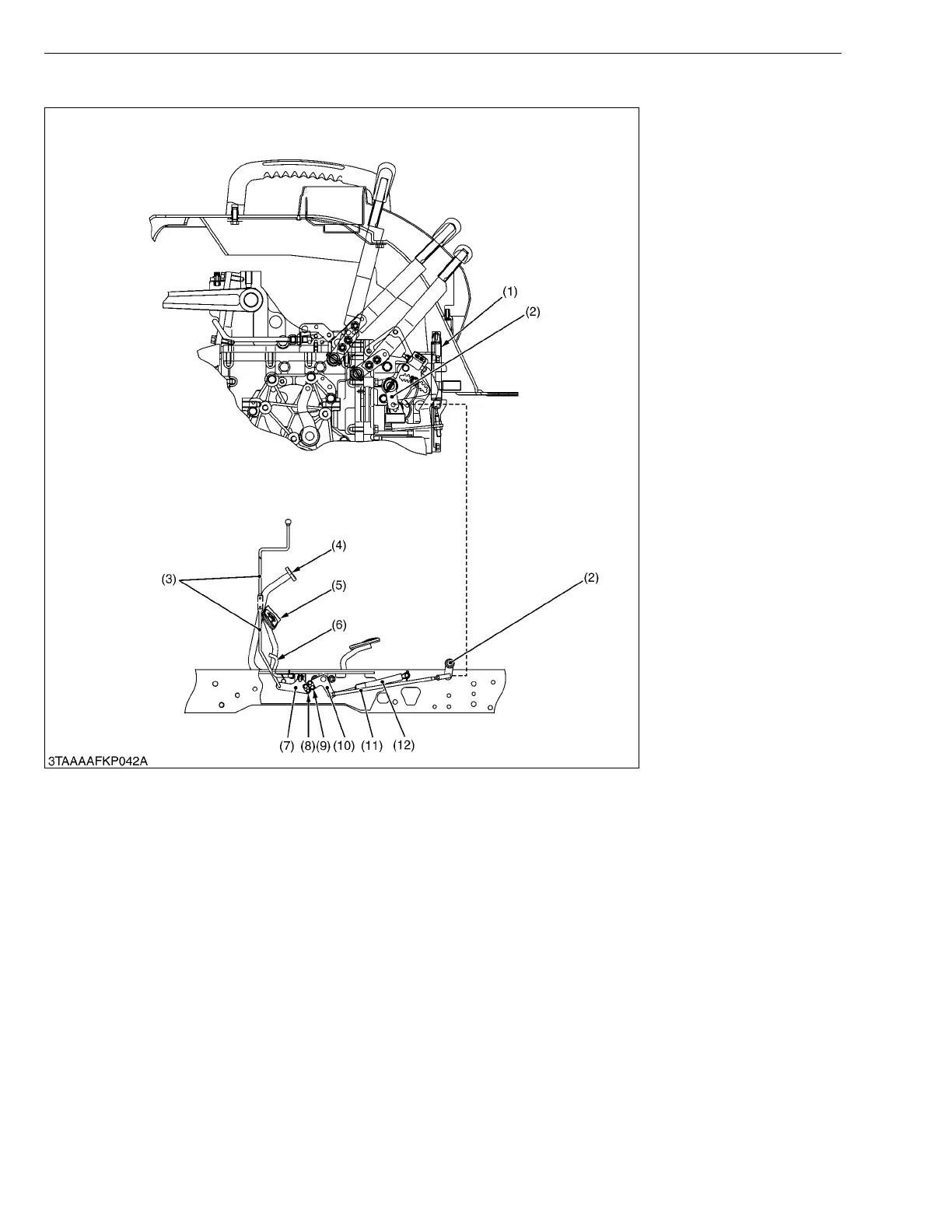

The speed control pedal (5) and the trunnion arm are linked with the HST pedal link (10) and the speed change
rod (11). As the front of the pedal is depressed, the swashplate connected to the trunnion arm (2) rotates and forward
travelling speed increases. Depressing the rear end increases reverse speed.
The trunnion arm (2) is returned to neutral position by the neutral arm and the tension of neutral spring. At the
same time, the swashplate is returned to neutral, when the pedal is released. The damper (12) connected to the HST
pedal link (10) restricts the movement of the linkage to prevent abrupt operation or reversing.
(1) Neutral Spring
(2) Trunnion Arm
(3) Cruise Rod
(4) Brake Pedal
(5) Speed Control Pedal
(6) Parking Plate
(7) Cruise Arm
(8) Cruise Lock
(9) Cruise Lock
(10) HST Pedal Link
(11) Speed Change Rod
(12) Damper
KiSC issued 08, 2019 A

Kubota BX24 Specifications

General

Engine Power	23 hp (17.2 kW)
Transmission Type	Hydrostatic
Brakes	Wet disc
Power Steering	Yes
Rear PTO	540 RPM
Hydraulic System Type	Open center
3-Point Hitch	Category I
Engine Type	Diesel
Wheelbase	55.1 inches
Width	44.5 inches
Height	85.4 inches
PTO Power	17.7 hp
Gears	2-range (Hi/Lo)
