Kubota BX24 Workshop Manual

6-S11
BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM
ELECTRICAL SYSTEM

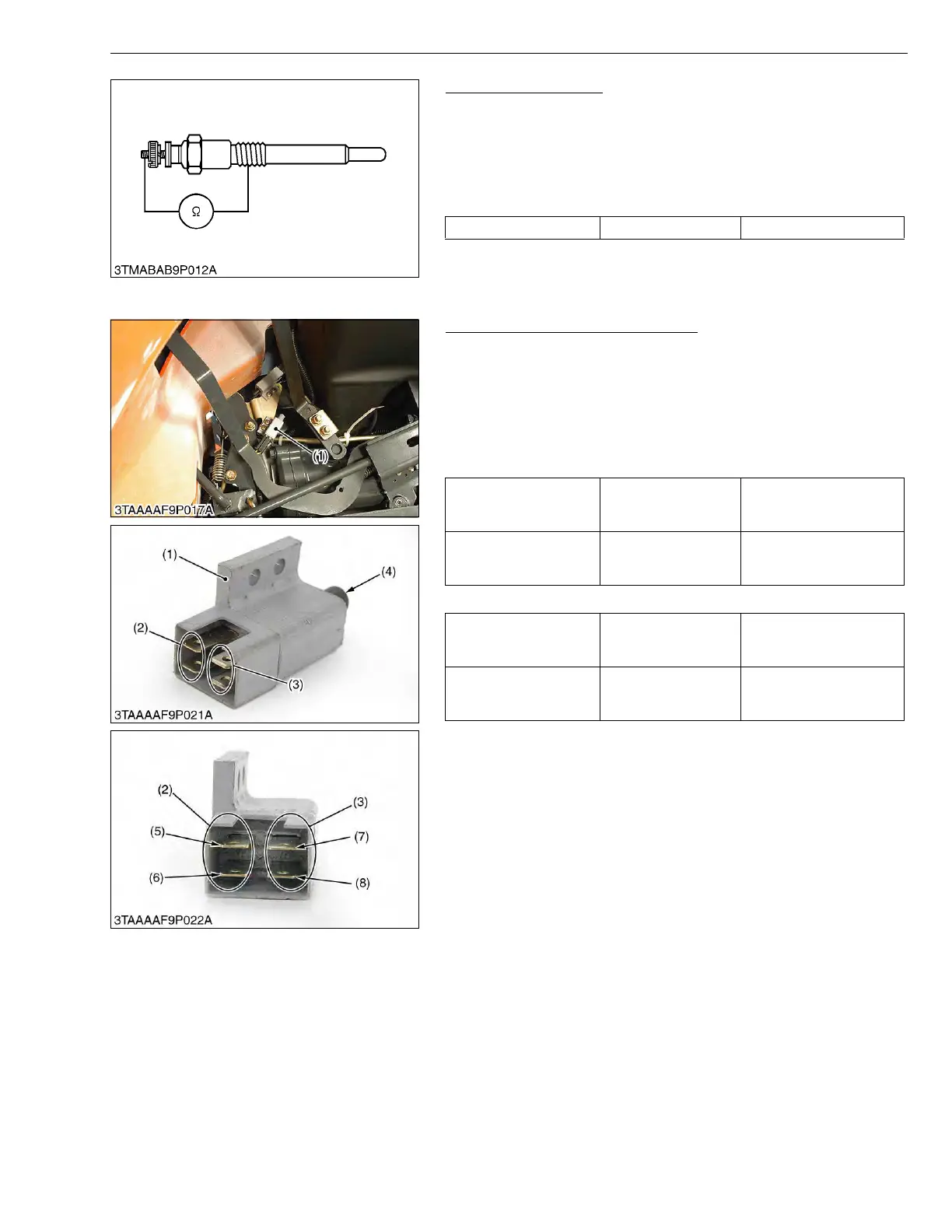

Glow Plug Continuity
1. Disconnect the lead from the glow plugs.
2. Measure the resistance with an ohmmeter between the glow plug
terminal and the chassis.
3. If 0 ohm is indicated, the screw at the tip of the glow plug and the
housing are short-circuited.
4. If the factory specification is not indicated, the glow plug is faulty.
W10151150
(5) Safety Switch
PTO Shift Lever Switch Continuity
1. Remove the left rear wheel.
2. Remove the PTO shift lever switch (1).
3. Measure the resistance with an ohmmeter across the switch
terminals.
4. If the resistance values specified below are not indicated, the
safety switch is faulty.
 Plunger is pushed into the switch body
 Plunger is released
W10158610
Glow plug resistance Factory spec. Approx. 0.9 
Resistance
1 terminal (5) -
2 terminal (6)
Factory spec. 0 
Resistance
3 terminal (7) -
4 terminal (8)
Factory spec. 0 
Resistance
1 terminal (5) -
2 terminal (6)
Factory spec. Infinity
Resistance
3 terminal (7) -
4 terminal (8)
Factory spec. Infinity
(1) PTO Shift Lever Switch
(2) 2P Connector (LH)
(3) 2P Connector (RH)
(4) Plunger
(5) 1 Terminal
(6) 2 Terminal
(7) 3 Terminal
(8) 4 Terminal
KiSC issued 08, 2019 A

Kubota BX24 Specifications

General

Engine Power	23 hp (17.2 kW)
Transmission Type	Hydrostatic
Brakes	Wet disc
Power Steering	Yes
Rear PTO	540 RPM
Hydraulic System Type	Open center
3-Point Hitch	Category I
Engine Type	Diesel
Wheelbase	55.1 inches
Width	44.5 inches
Height	85.4 inches
PTO Power	17.7 hp
Gears	2-range (Hi/Lo)
