6-S27

BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM

ELECTRICAL SYSTEM

Magnet Switch

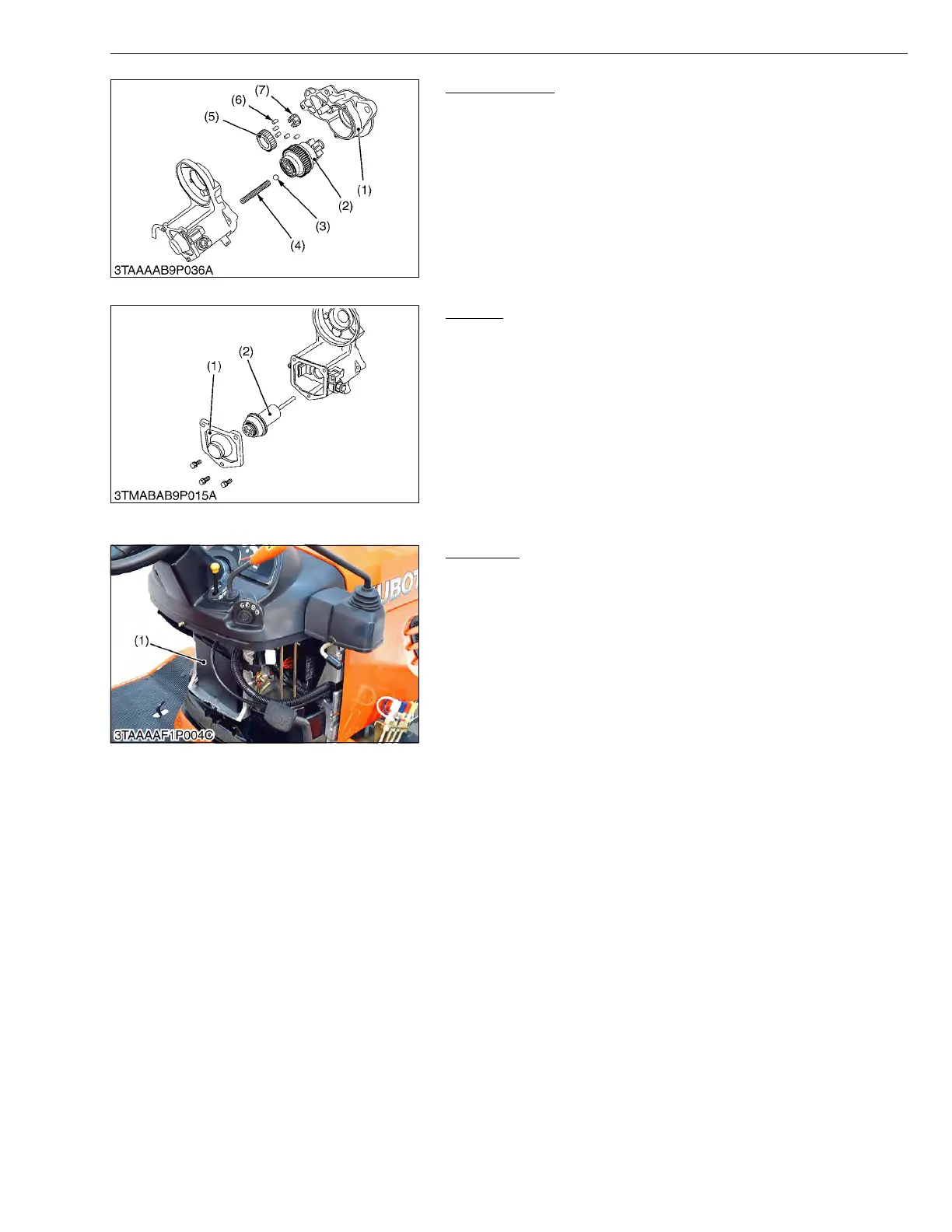

1. Remove the drive end frame (1) mounting screws.

2. Take out the overrunning clutch (2), ball (3), spring (4), gears (5),

rollers (6) and retainer (7).

(When reassembling)

• Apply grease to the gear teeth of the gears (5) and overrunning

clutch (2), and ball (3).

W1016728

Plunger

1. Remove the end cover (1).

2. Take out the plunger (2).

W1016883

(2) Alternator

Alternator

1. Check the battery charging voltage while engine runs.

2. Check the increasing voltage when increasing the engine

revolution.

3. If the battery charging voltage does not increase, the alternator is

faulty.

4. Replace the alternator as an assembly.

W1058597

(1) Drive End Frame

(2) Overrunning Clutch

(3) Ball

(4) Spring

(5) Gear

(6) Roller

(7) Retainer

(1) End Cover (2) Plunger

(1) Battery
