5-M10

BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM

HYDRAULIC SYSTEM

7. HYDRAULIC BLOCK TYPE OUTLET

The hydraulic block type outlet is located on the

hydraulic cylinder assembly.

This hydraulic block type outlet is provided to take

power out from the tractor to operate the hydraulic

cylinders on the implement, such as front end loader,

front snow blade and so on.

W1014064

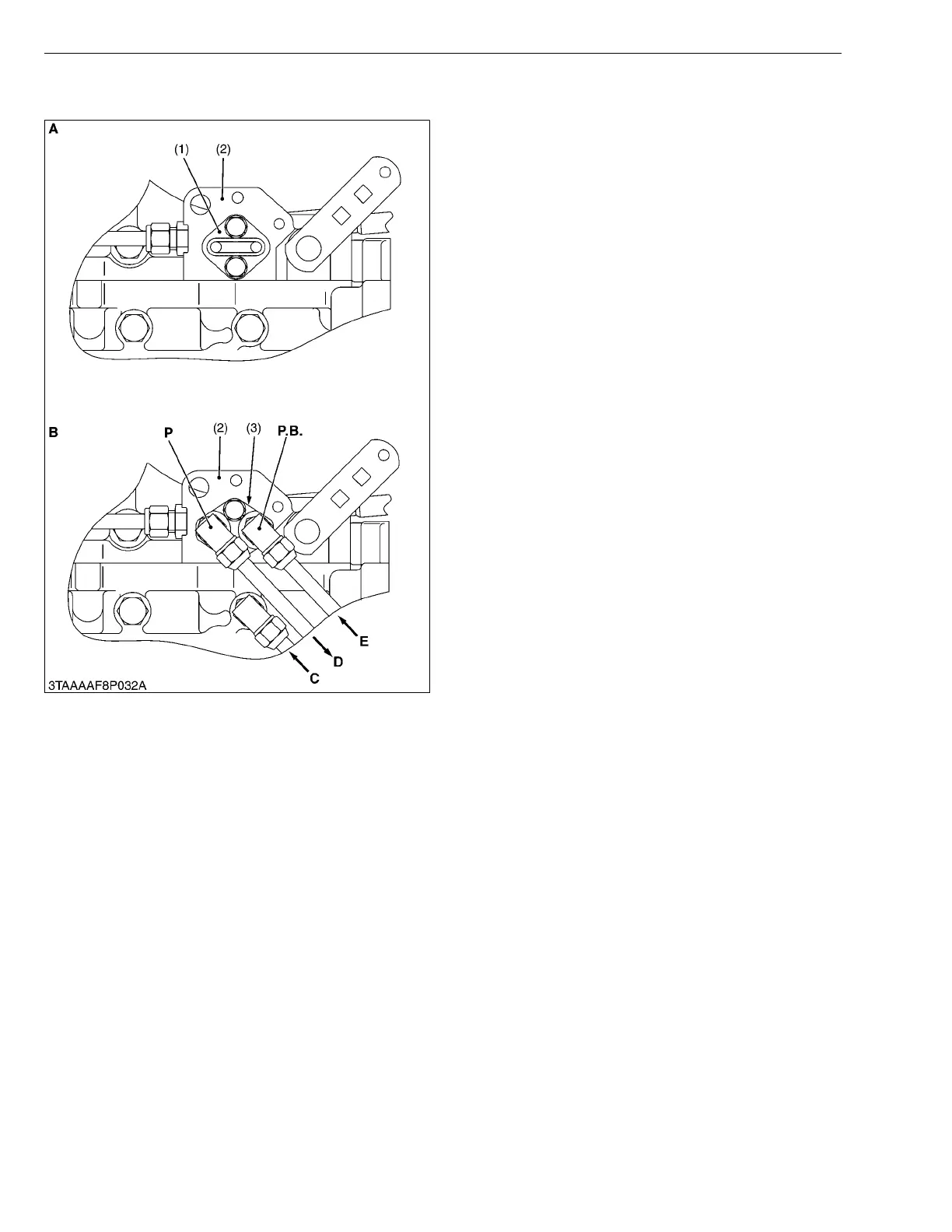

(1) Block Cover

(2) Hydraulic Cylinder

(3) Hydraulic Block

P : P Port (Pump)

P.B. :P.B. Port (Power Beyond)

A : When Loader Valve is not

Attached

B : When Loader Valve is

Attached

C : To Transmission Case

D : To Implement

E : From Implement

KiSC issued 08, 2019 A
