Kubota BX24 Workshop Manual

8-M3
BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM
FRONT LOADER

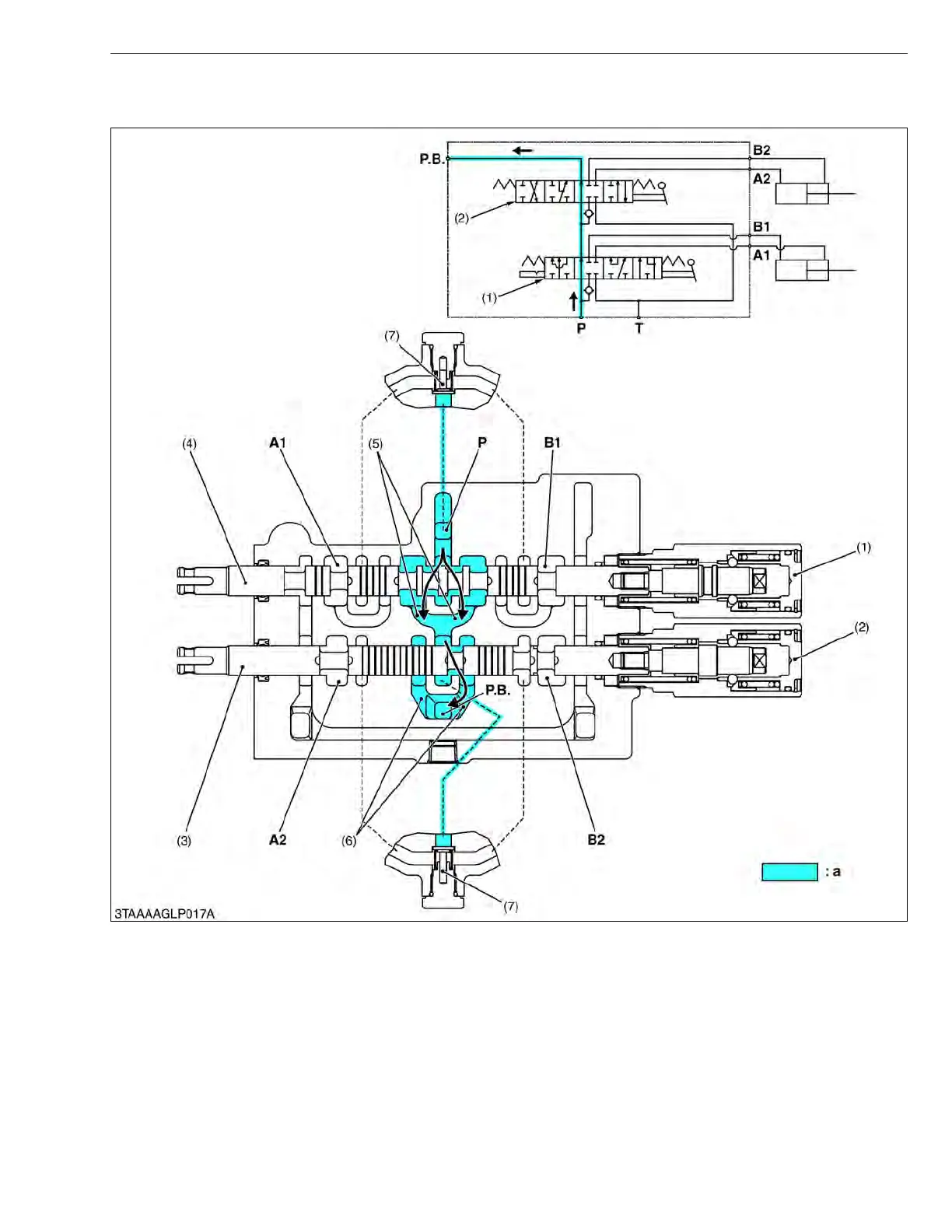

[2] OPERATION
 Neutral
(1) Boom Control Section
(2) Bucket Control Section
(3) Spool
(4) Spool
(5) P. B. Passage 1
(6) P. B. Passage 2
(7) Load Check Valve
T : T Port (To Tank)
P : P Port (From Pump)
A1 : A1 Port
A2 : A2 Port
B1 : B1 Port
B2 : B2 Port
P.B. :P.B. Port
a : Low Pressure
KiSC issued 08, 2019 A

Kubota BX24 Specifications

General

Engine Power	23 hp (17.2 kW)
Transmission Type	Hydrostatic
Brakes	Wet disc
Power Steering	Yes
Rear PTO	540 RPM
Hydraulic System Type	Open center
3-Point Hitch	Category I
Engine Type	Diesel
Wheelbase	55.1 inches
Width	44.5 inches
Height	85.4 inches
PTO Power	17.7 hp
Gears	2-range (Hi/Lo)
