8-S12
BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM
FRONT LOADER
[2] BUCKET, BOOM AND HYDRAULIC CYLINDERS
(1) Disassembling and Assembling

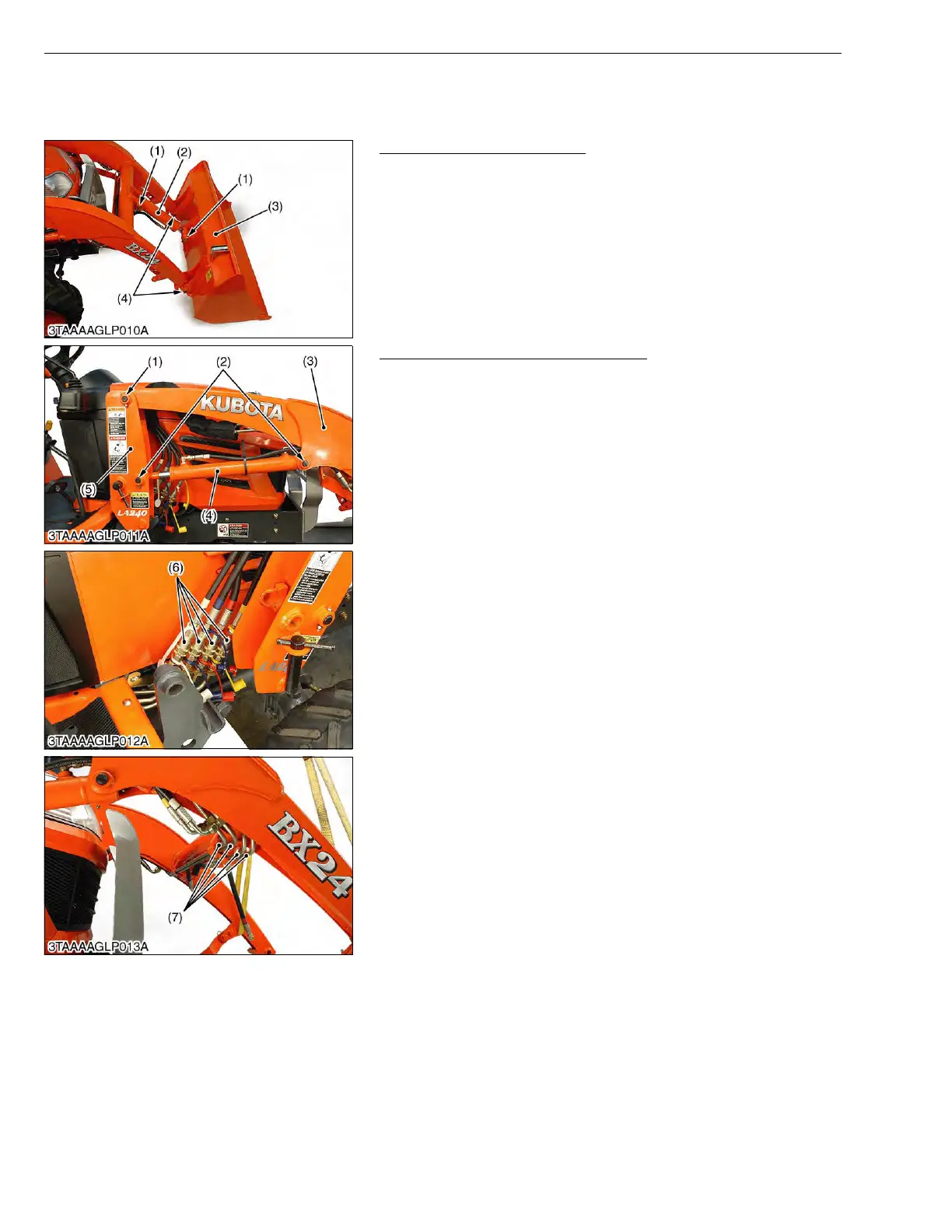

Bucket and Bucket Cylinder
1. Remove the pins (4), the lower pin (1) and remove the bucket (3).
2. Disconnect the hydraulic hoses from the bucket cylinder (2).
3. Remove the upper pin (1) and remove the bucket cylinder (2).
(When reassembling)
• When installing the bucket cylinder (2), the hydraulic port should
face inside and be careful of the direction of grease fittings.
W1016780
Boom Cylinder and Hydraulic Tubes
1. Disconnect the hydraulic hoses from the boom cylinders (4).
2. Remove the pins (2) and remove the boom cylinders (4).
3. Disconnect the hydraulic hoses (6) with quick couplers at the
control valve.
4. Remove the pins (1) and remove the boom (3) from the side
frame (5).
5. Remove the hydraulic tubes (7) from the boom (3).
(When reassembling)
• When installing the boom cylinders (4), the hydraulic port should
face inside and be careful of the direction of grease fittings.
W1016879
(1) Pin
(2) Bucket Cylinder
(3) Bucket
(4) Pin
(1) Pin
(2) Pin
(3) Boom
(4) Boom Cylinder
(5) Side Frame
(6) Hydraulic Hose
(7) Hydraulic Tube
To Next Page
