2-M19

BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM

TRANSAXLE

4. OTHERS

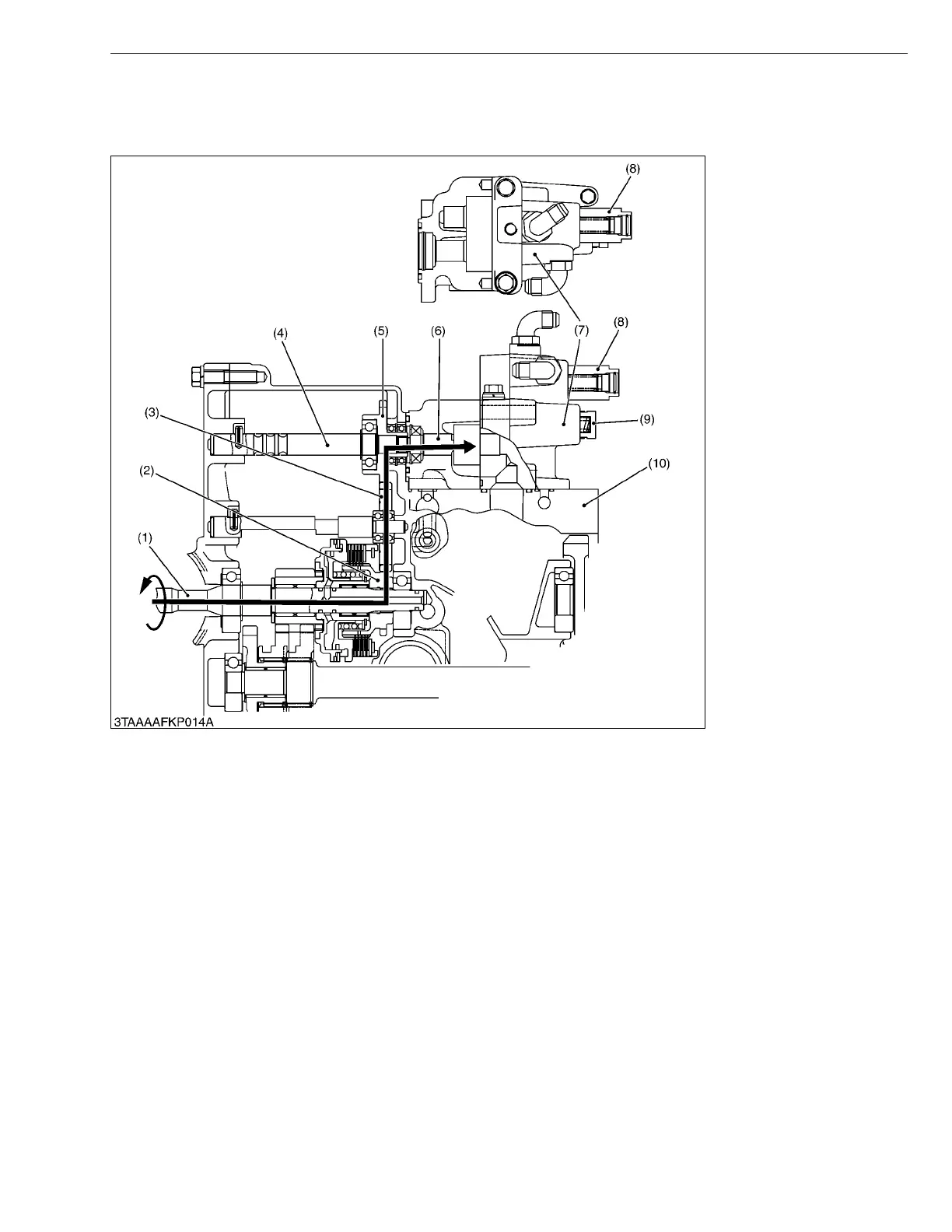

[1] HYDRAULIC PUMP DRIVE GEAR SECTION

W1016433

The hydraulic pump (7) is mounted to the transmission case (10) and driven by the hydraulic pump drive gear (5).

The spline boss (2) mounted on the HST pump shaft drives the hydraulic pump drive gear (5) mounted on the

hydraulic pump drive gear shaft (4) through the idle gear (3).

(1) HST Pump Shaft

(2) Spline Boss

(3) Idle Gear

(4) Hydraulic Pump Drive Gear

Shaft

(5) Hydraulic Pump Drive Gear

(6) Hydraulic Pump Drive Gear

Shaft

(7) Hydraulic Pump

(8) Flow Priority Valve

(9) Relief Valve (3P Hitch)

(10) Transmission Case

KiSC issued 08, 2019 A
