Kubota BX24 Workshop Manual

6-M14
BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM
ELECTRICAL SYSTEM
[4] WATER TEMPERATURE GAUGE
Water temperature gauge is located on the meter
panel board.
The water temperature gauge and the thermo unit are
connected by the wiring.
The water temperature gauge detects the resistance
from the thermo unit.
The water temperature gauge indicates the coolant
temperature in the engine cylinder head.
The relationship between the resistance of thermo
unit and reading on the water temperature gauge is as
follows.
W10236547
Resistance of Thermo Unit
Reading on Water
Temperature gauge
Approx. 220  Min.
Approx. 70  Start of red
Approx. 3  Max.

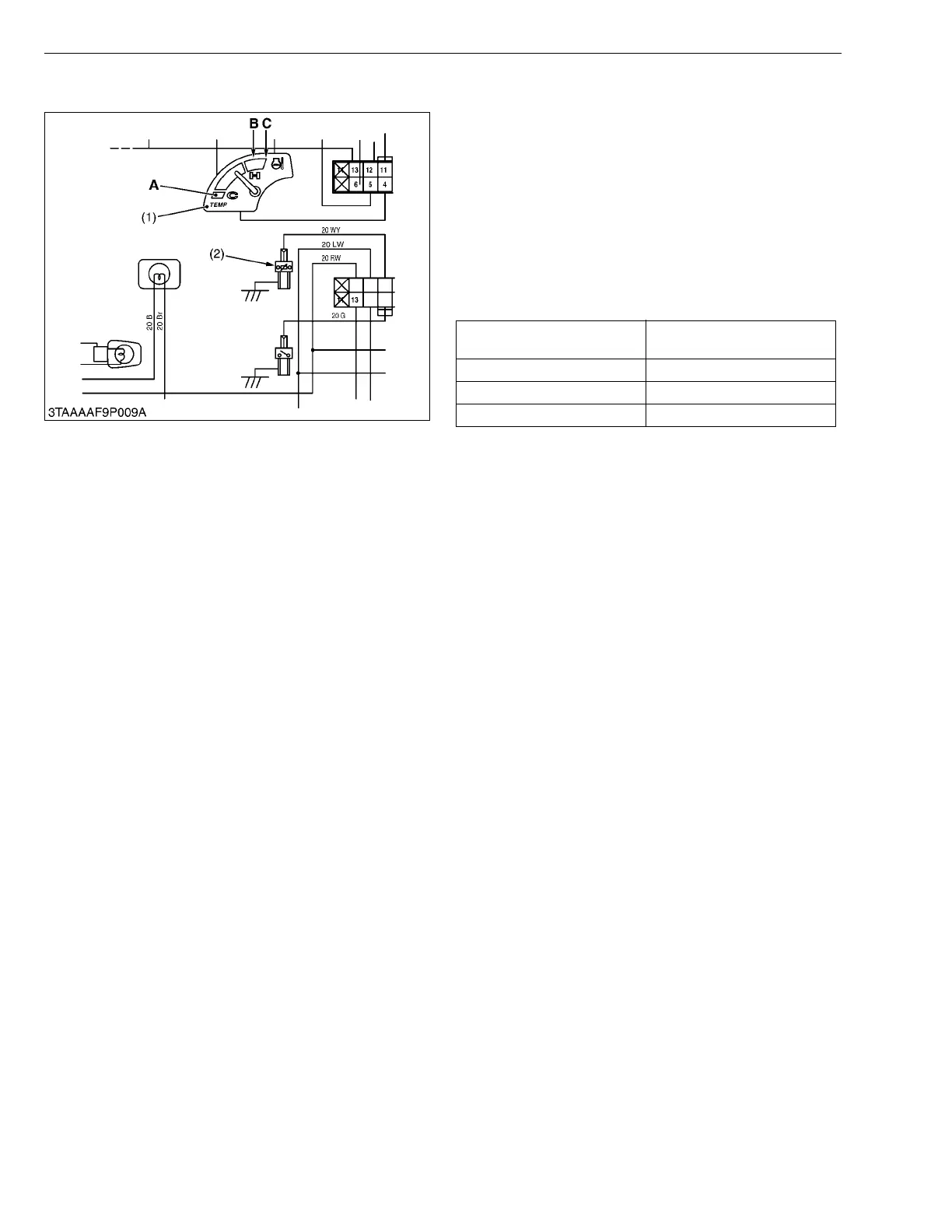

(1) Water Temperature Gauge
(2) Thermo Unit
A : Min.
B : Start of Red
C : Max.
KiSC issued 08, 2019 A
