1. GENERAL
[1] BACKHOE IDENTIFICATION
When contacting your local KUBOTA distributor, always specify
backhoe serial number and hour meter reading.
W1010477
[2] GENERAL PRECAUTION
• During disassembly, carefully arrange removed parts in a clean
area to prevent later confusion. Screws, bolts and nuts should be
replaced in their original positions to prevent reassembly errors.
• When special tools are required, use genuine KUBOTA tools.
Special tools which are not used frequently should be made
according to the drawings provided.
• Clean parts before measuring them.
• Use only genuine KUBOTA parts for parts replacement to
maintain backhoe performance and to assure safety.
• O-rings and oil seals must be replaced during reassembly. Apply
grease to new O-rings or oil seals before reassembling.
• Nipples must be tightened to the specified torque. Excessive
torque may cause damages hydraulic units or nipples, and
insufficient torque will result in oil leaks.
• When using a new hose or pipe, tighten nuts to the specified
torque once, then loosen them (approx. by 45 °) to allow hose or
pipe to settle before retightening to the specified torque (except
sealtaped parts).
• When removing both ends of a pipe, remove the lower end first.
• Use two pliers in removal and reinstallation; one to hold the static
side, and the other to turn the side being removed to avoid
twisting.
• Check to see that sleeves of flareless connectors and tapered
sections of hoses are free of dust and scratches.
• After tightening nipples, clean the joint and apply the maximum
working pressure 2 to 3 times to check for oil leak.
W1010572

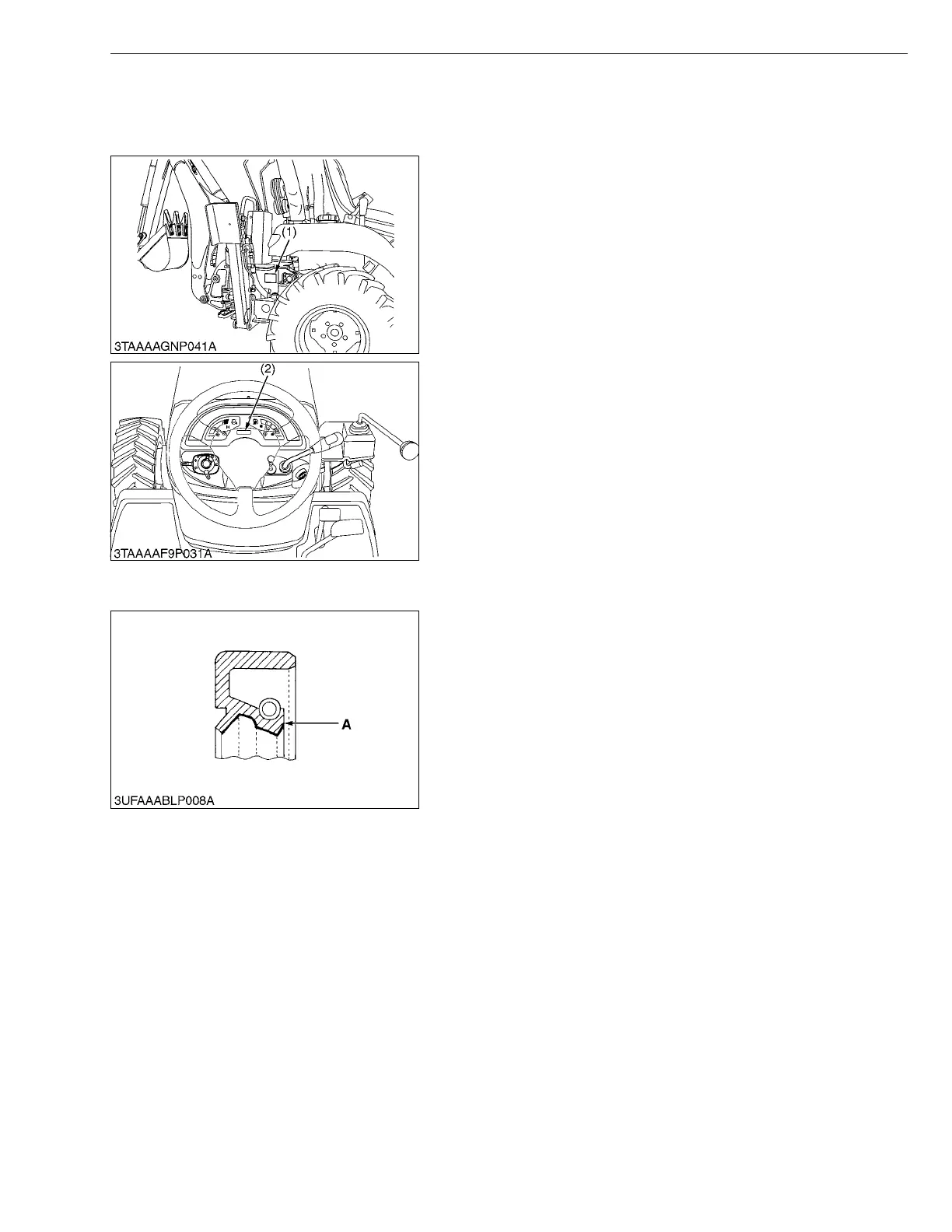

(1) Serial Number (2) Hour Meter
A : Grease
To Next Page
