Kubota BX24 Workshop Manual

2-M9
BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM
TRANSAXLE

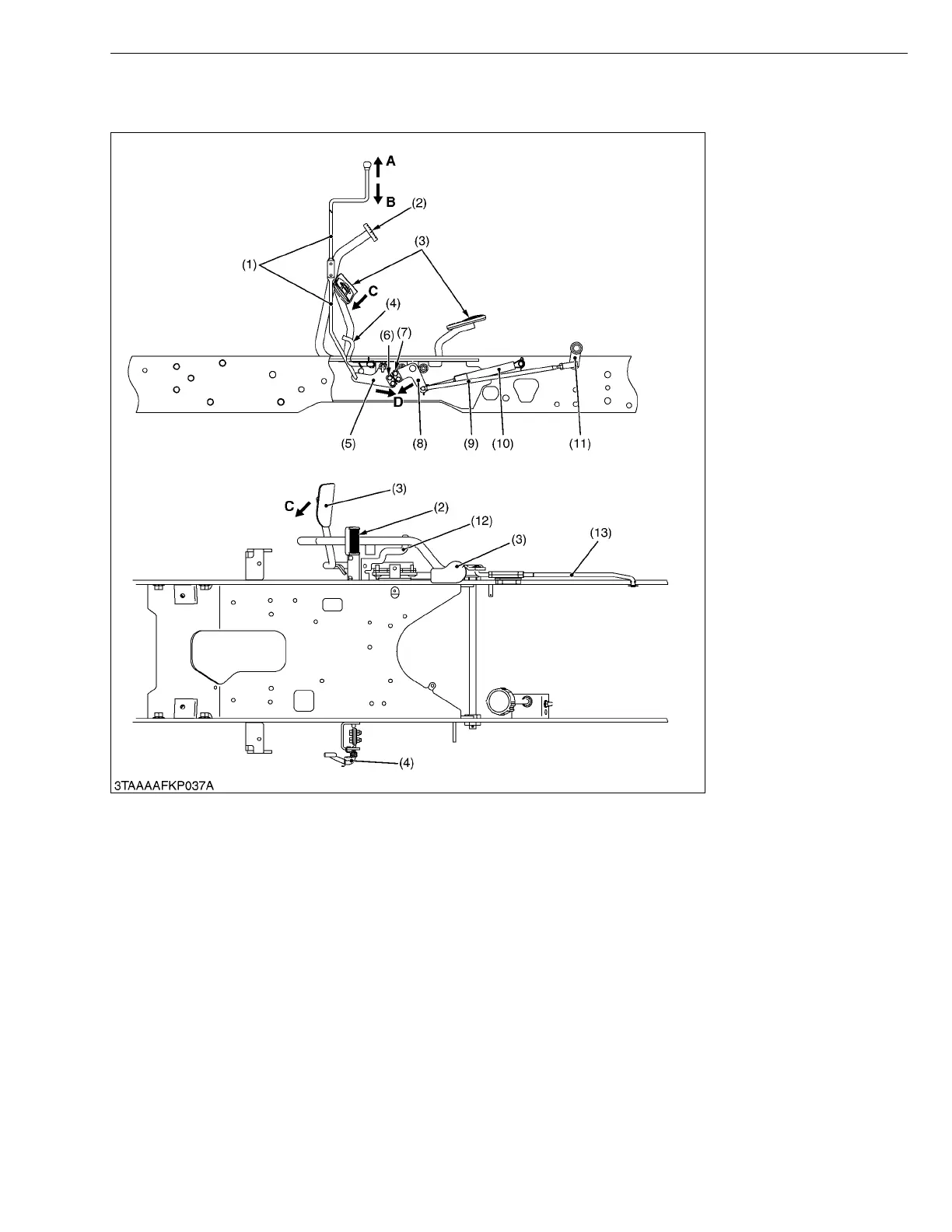

(4) Speed Set Linkage
 Speed Set
W1020771
When pushing and holding the speed set rod (1) and depressing the speed control pedal (3), the desired speed is
set.
When pushing the speed set rod (1), the cruise arm (5) is rotated counter clockwise.
When depressing the speed control pedal (3) forward, the HST pedal link clockwise.
Since both the cruise lock (6) of the cruise arm (5) and the cruise lock (7) of HST pedal link (8) are locked, the
speed control pedal (3) is held at a selected position.
(1) Speed Set Rod
(2) Brake Pedal
(3) Speed Control Pedal
(4) Parking Brake Lock Pedal
(5) Cruise Arm
(6) Cruise Lock
(7) Cruise Lock
(8) HST Pedal Link
(9) Speed Change Rod
(10) Damper
(11) Trunnion Arm
(12) Release Plate
(13) Brake Rod
A : Speed Set Rod “OFF”
B : Speed Set Rod “ON”
C : Speed Control Pedal
“Forward”
D : Cruise Lock “Locked”
KiSC issued 08, 2019 A

Kubota BX24 Specifications

General

Engine Power	23 hp (17.2 kW)
Transmission Type	Hydrostatic
Brakes	Wet disc
Power Steering	Yes
Rear PTO	540 RPM
Hydraulic System Type	Open center
3-Point Hitch	Category I
Engine Type	Diesel
Wheelbase	55.1 inches
Width	44.5 inches
Height	85.4 inches
PTO Power	17.7 hp
Gears	2-range (Hi/Lo)
