Kubota BX24 Workshop Manual

5-S10
BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM
HYDRAULIC SYSTEM

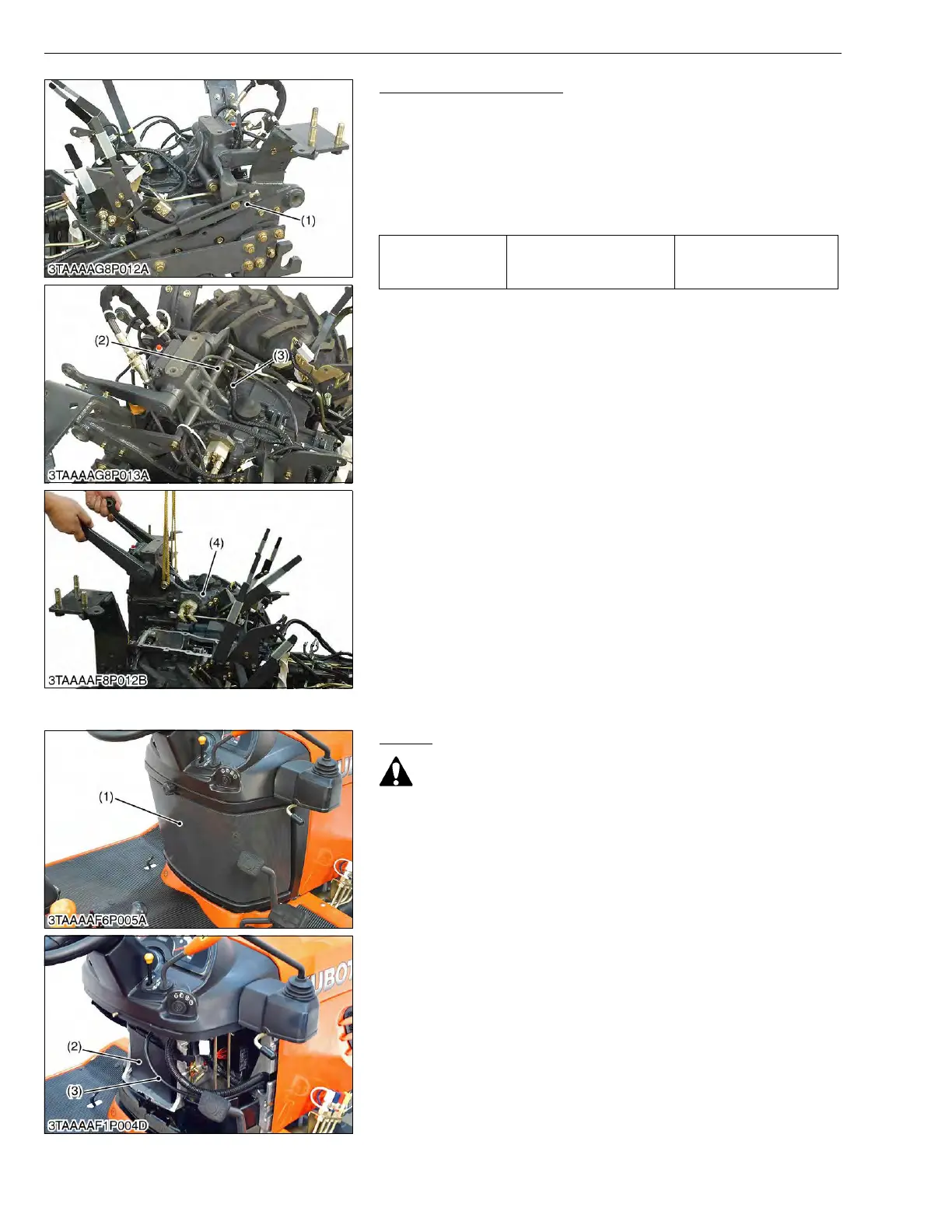

Hydraulic Cylinder Block
1. Disconnect the mower linkage (1).
2. Remove the wireharness clamp and wireharness (3) move to the
front side.
3. Remove the connecting bar (2).
4. Remove the hydraulic cylinder block mounting bolt.
5. Remove the hydraulic cylinder block (4).
(When reassembling)
W1028149
(2) Separating Hydraulic Pump
Battery
CAUTION
• When disconnecting the battery cables, disconnect the
negative cable from the battery first. When connecting,
connect the positive cable to the battery first.
1. Remove the under panel (1).
2. Disconnect the negative cable (2) from the battery.
W1028561
Tightening torque
Hydraulic cylinder block
mounting bolt
39.2 to 44.1 N·m
4.0 to 4.5 kgf·m
28.9 to 32.5 ft-lbs
(1) Mower Linkage
(2) Connecting Bar
(3) Wireharness
(4) Hydraulic Cylinder Block
(1) Under Panel
(2) Battery
(3) Negative Cable
KiSC issued 08, 2019 A

Kubota BX24 Specifications

General

Engine Power	23 hp (17.2 kW)
Transmission Type	Hydrostatic
Brakes	Wet disc
Power Steering	Yes
Rear PTO	540 RPM
Hydraulic System Type	Open center
3-Point Hitch	Category I
Engine Type	Diesel
Wheelbase	55.1 inches
Width	44.5 inches
Height	85.4 inches
PTO Power	17.7 hp
Gears	2-range (Hi/Lo)
