Kubota BX24 Workshop Manual

6-S15
BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM
ELECTRICAL SYSTEM

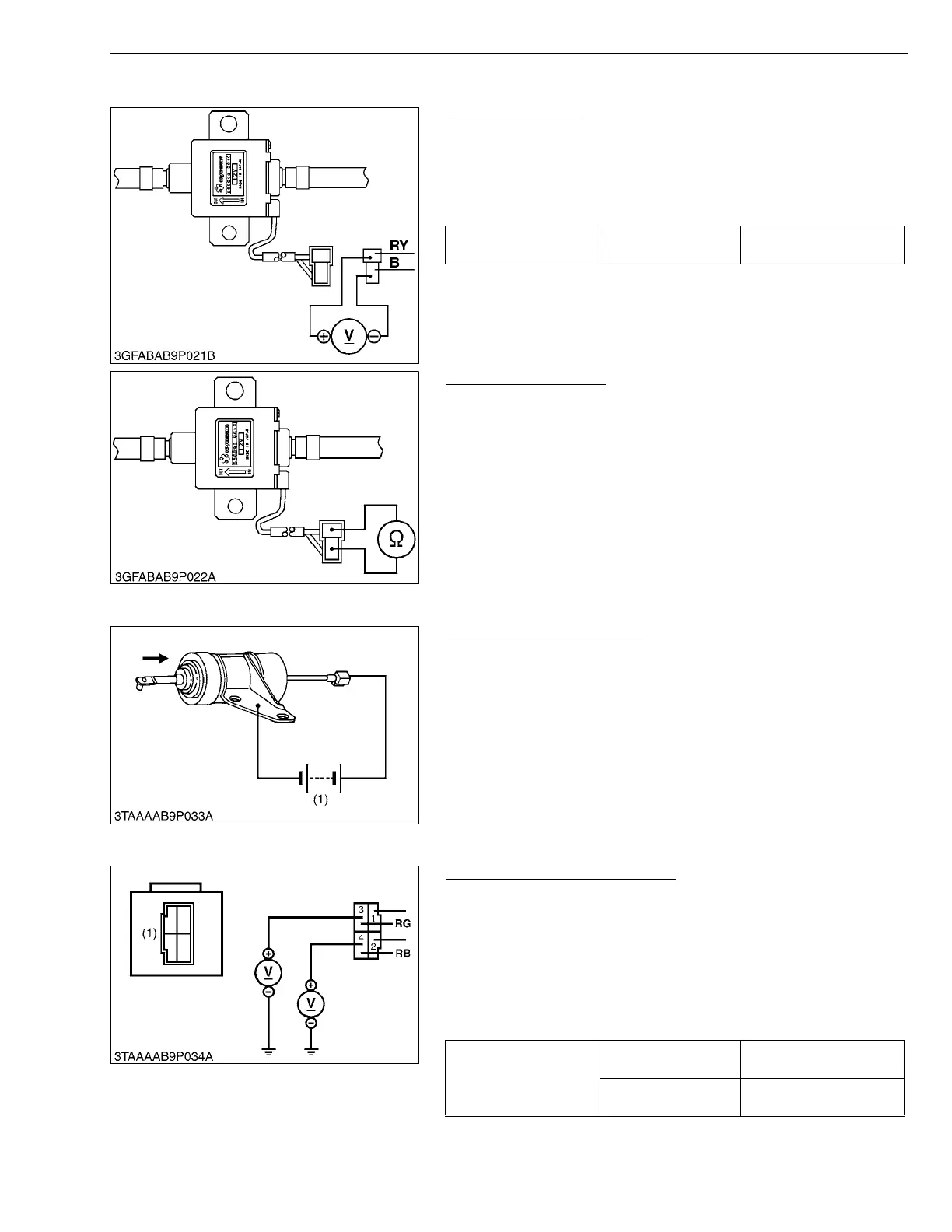

(7) Fuel Pump
Connector Voltage
1. Disconnect the 2P connector from the fuel pump.
2. Turn the main switch key to the “ON” position, and measure the
voltage with a voltmeter between the connector terminals.
3. If the voltage differs from the battery voltage, the wiring harness
or main switch is faulty.
W1016341
Fuel Pump Continuity
1. Disconnect the 2P connector from the fuel pump.
2. Check the continuity between the connector terminals with an
ohmmeter.
3. If it does not conduct, the fuel pump is faulty.
W1016134
(8) Engine Stop Solenoid
Engine Stop Solenoid Test
1. Disconnect the 1P connector from the engine stop solenoid.
2. Remove the engine stop solenoid from the engine.
3. Connect the jumper leads from the battery positive terminal to the
1P connector, and from the battery negative terminal to the
engine stop solenoid body.
4. If the solenoid plunger is not attracted, the engine stop solenoid
is faulty.
W1019658
(9) Timer Relay
Timer Relay Connector Voltage
1. Disconnect the connector from the timer relay after turning the
main switch off.
2. Measure the voltage with a voltmeter across the connector
terminal 4 and chassis.
3. Turn the main switch on, and measure the voltage across the
connector terminal 3 and chassis.
4. If these voltages differ from the battery voltage, the wiring
harness or main switch is faulty.
W1016544
Voltage
Between connector
terminals
Approx. battery voltage
(1) Battery (12 V)
Voltage
Connector
terminal 4-chassis
Approx. battery voltage
Connector
terminal 3-chassis
Approx. battery voltage
(1) Timer Relay
KiSC issued 08, 2019 A

Kubota BX24 Specifications

General

Engine Power	23 hp (17.2 kW)
Transmission Type	Hydrostatic
Brakes	Wet disc
Power Steering	Yes
Rear PTO	540 RPM
Hydraulic System Type	Open center
3-Point Hitch	Category I
Engine Type	Diesel
Wheelbase	55.1 inches
Width	44.5 inches
Height	85.4 inches
PTO Power	17.7 hp
Gears	2-range (Hi/Lo)
