1-S42

BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM

ENGINE

[3] SERVICING

(1) Cylinder Head and Valves

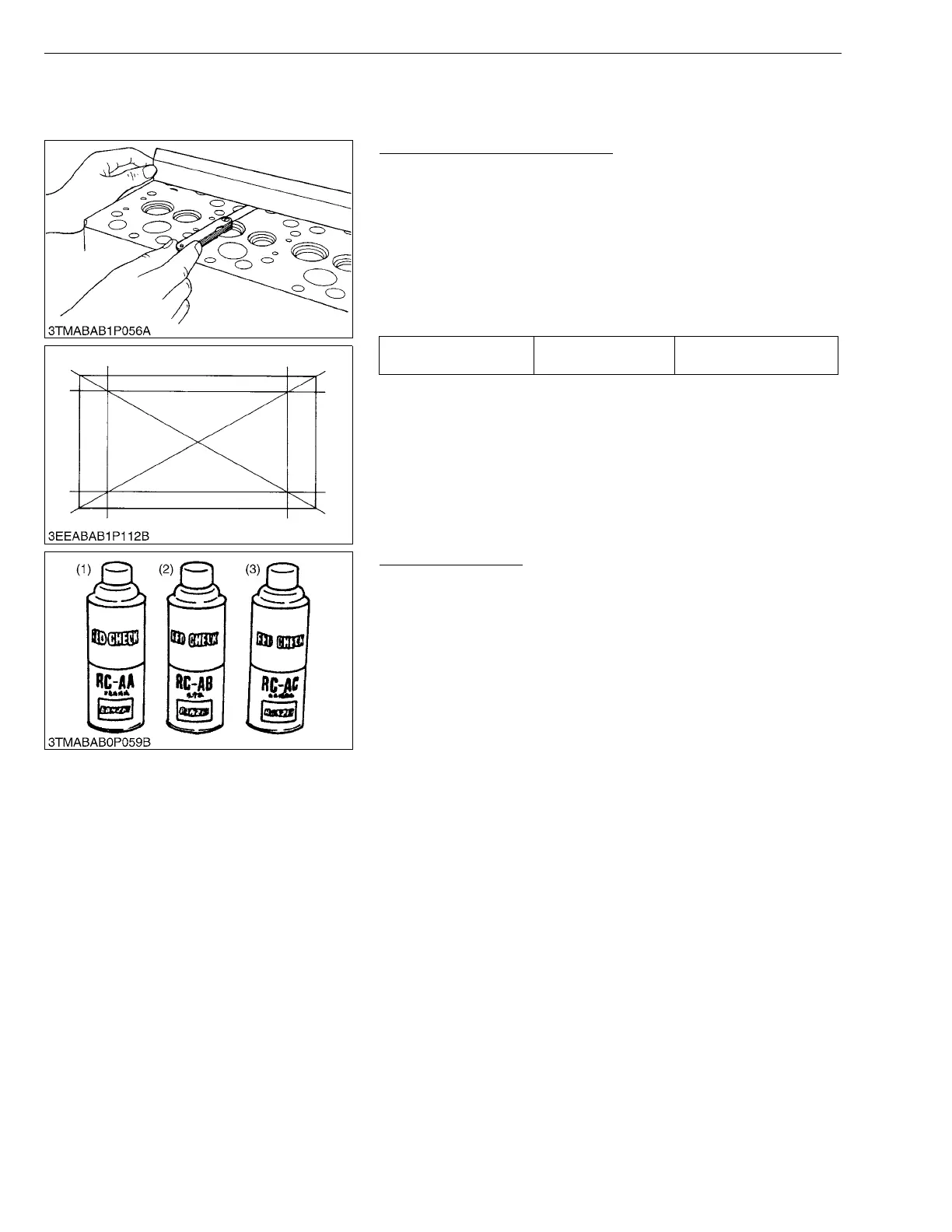

Cylinder Head Surface Flatness

1. Clean the cylinder head surface.

2. Place a straightedge on the cylinder head’s four sides and two

diagonal as shown in the figure.

3. Measure the clearance with a thickness gauge.

4. If the measurement exceeds the allowable limit, correct it with a

surface grinder.

IMPORTANT

• Do not place the straightedge on the combustion chamber.

• Be sure to check the valve recessing after correcting.

W1027737

Cylinder Head Flaw

1. Prepare an air spray red check.

2. Clean the surface of the cylinder head with detergent (2).

3. Spray the cylinder head surface with the red permeative liquid

(1). Leave it five to ten minutes after spraying.

4. Wash away the read permeative liquid on the cylinder head

surface with the detergent (2).

5. Spray the cylinder head surface with white developer (3).

6. If flawed, it can be identified as red marks.

W1076542

Cylinder head surface

flatness

Allowable limit

0.05 mm

0.0020 in.

(1) Red Permeative Liquid

(2) Detergent

(3) White Developer

KiSC issued 08, 2019 A
