Kubota BX24 Workshop Manual

G-37
BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM
G GENERAL

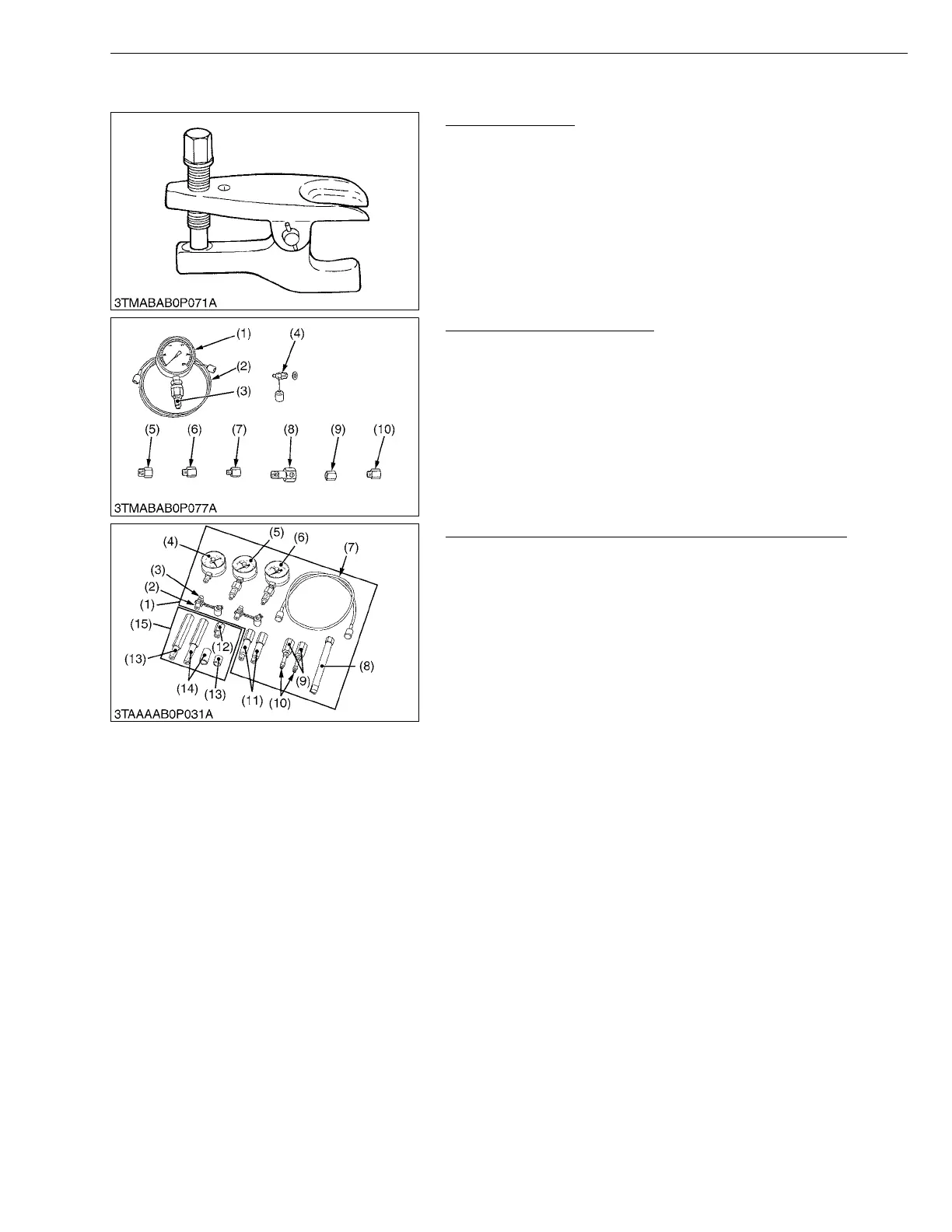

[2] SPECIAL TOOLS FOR TRACTOR
Tie-rod End Lifter
Code No.: 07909-39051
Application: Use for removing the tie-rod end with ease.
W1026472
Relief Valve Pressure Tester
Code No.: 07916-50045
Application: This allows easy measurement of relief set pressure.
W1026741
Hydrostatic Transmission Tester and HST Adaptor Set
Code No.: 07916-52040 (Hydrostatic Transmission Tester)
07916-53072 (HST Adaptor Set)
Application: This allows easy measurement of hydrostatic
transmission pressure.
W1023682
(1) Gauge (07916-50322)
(2) Cable (07916-50331)
(3) Threaded Joint (07916-50401)
(4) Threaded Joint (07916-50341)
(5) Adaptor B (M18  P1.5)
(07916-50361)
(6) Adaptor C (PS3/8) (07916-50371)
(7) Adaptor D (PT1/8) (07916-50381)
(8) Adaptor E (PS3/8) (07916-50392)
(9) Adaptor F (PF1/2) (07916-62601)
(10) Adaptor 58 (PT1/4) (07916-52391)
(1) Hydrostatic Transmission Tester
(07916-52040)
(2) Gasket (04714-00200)
(3) Connector 3 (07916-51331)
(4) Vacuum Gauge (07916-51331)
(5) Pressure Gauge (Low Pressure)
(07916-51301)
(6) Pressure Gauge (High Pressure)
(in Relief Valve Set Pressure Tester)
(07916-50321)
(7) HN Tube (in Relief Valve Set
Pressure Tester) (07916-50331)
(8) Valve Seat Driver (07916-60841)
(9) Connector 1 (07916-60811)
(10) Connector 2 (07916-60821)
(11) Long Connector (07916-60831)
(12) Adaptor 1 (07916-52621)
(13) Adaptor 2 with Collar
(07916-52632)
(14) Adaptor 3 with Collar
(07916-52642)
(15) HST Adaptor Set (07916-53072)
KiSC issued 08, 2019 A
