5-S7

BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM

HYDRAULIC SYSTEM

(3) Mower Lift Linkage

Mower Lift Linkage

After reassembling the mower lift linkage, be sure to adjust it as

follows.

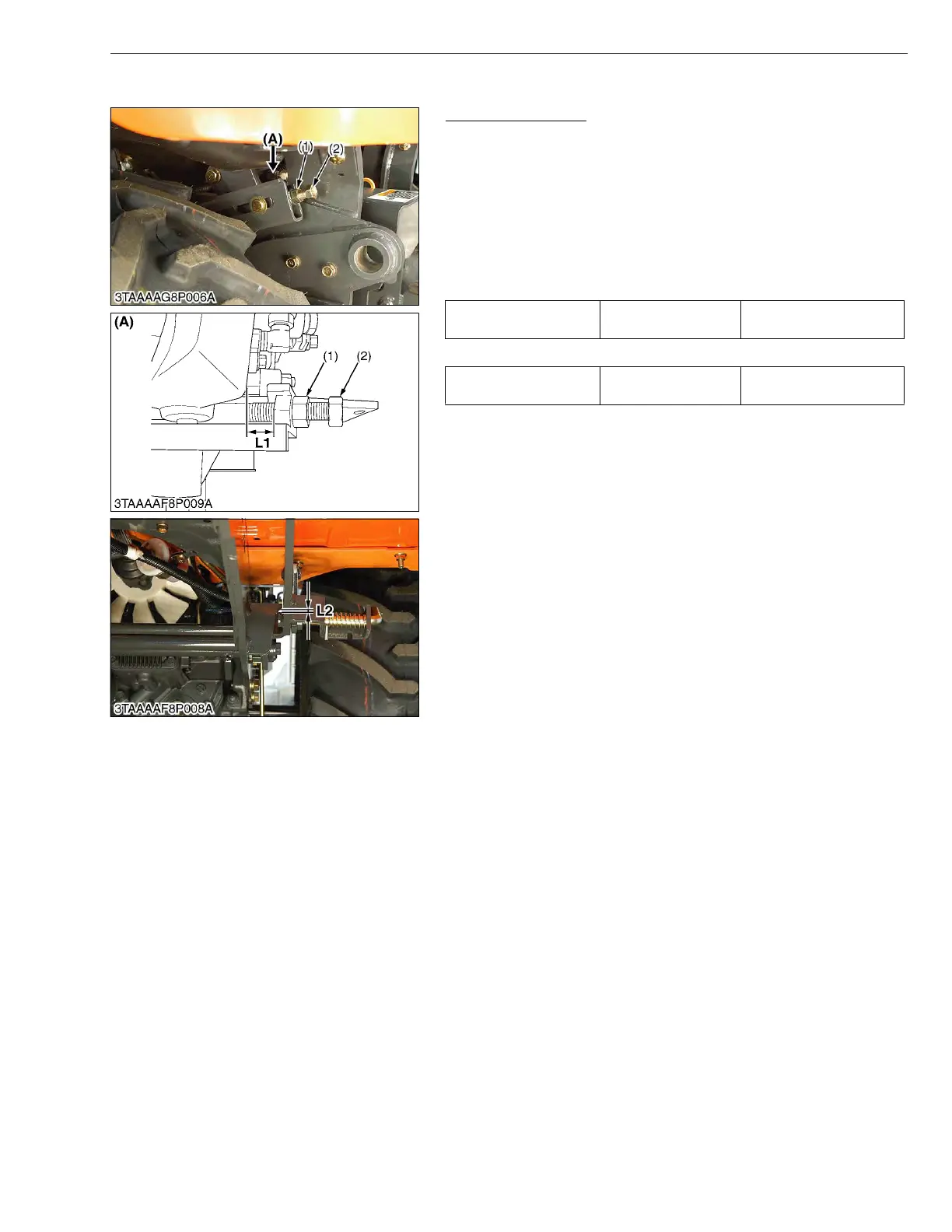

1. Check the lift arm free play.

2. Loosen the adjusting nut (1) and start the engine.

3. Move the hydraulic control lever to Lift position until the relief

valve operating. (Uppermost position)

4. Adjusting bolt (2) until the clearance between stopper and mower

rear link LH gets 0 to 0.5 mm (0 to 0.019 in.)

5. Secure the lock nut (1).

(Reference)

W54698712

Clearance L2 Factory spec.

0 to 0.5 mm

0 to 0.019 in.

Length L1 Factory spec.

17 mm

0.669 in.

(1) Nut

(2) Bolt

(A) Upper View

L1 :Length

L2 :Clearance
