Kubota BX24 Workshop Manual

5-M11
BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM
HYDRAULIC SYSTEM

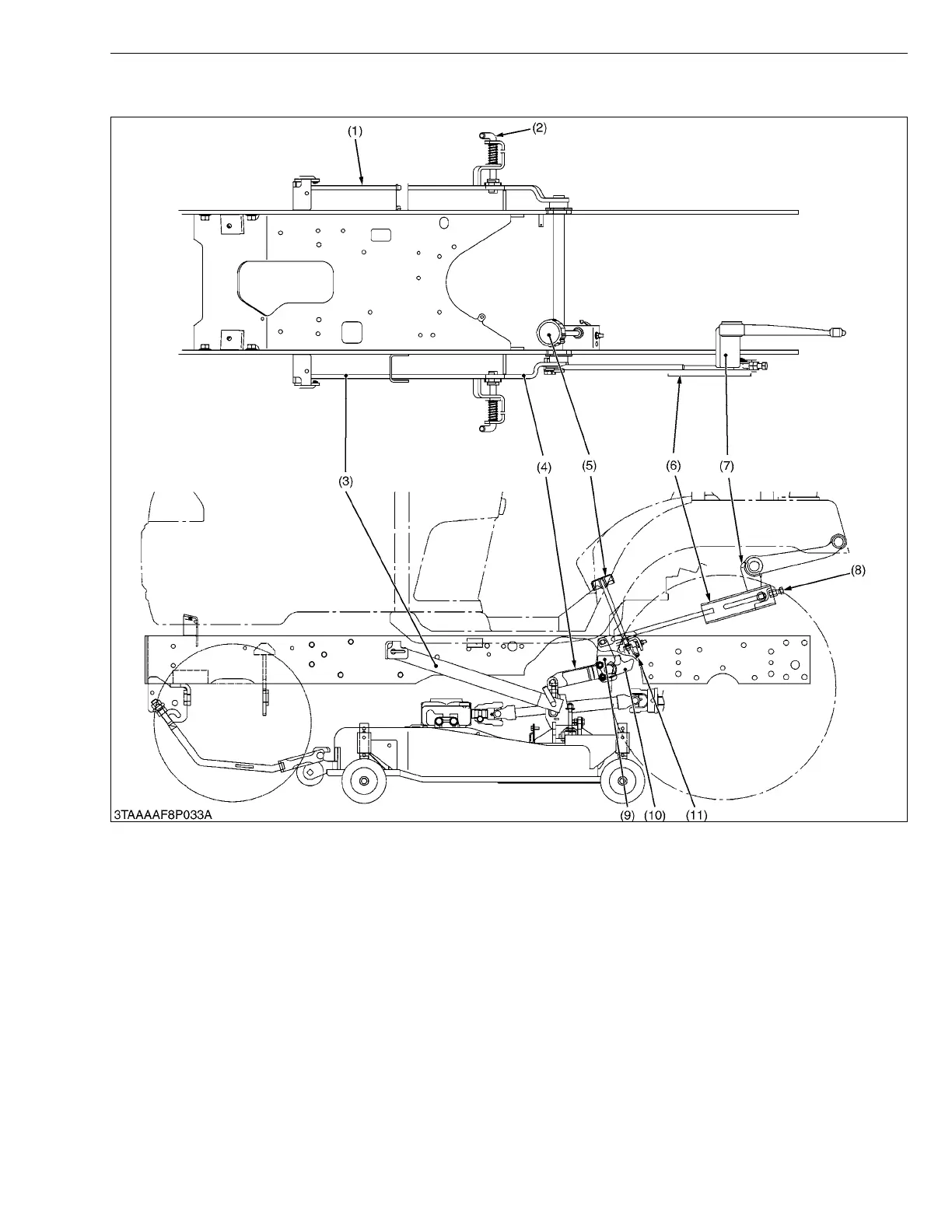

8. MOWER LINKAGE
The mower rear link (1), (3) and the lift arm (7) are linked with the rear lift link LH (4), the lift upper boss (9) and the
lift lower boss (10).
As the hydraulic control lever moves to lift position, lift arm (7) is raised and the rear lift link LH (6) is pulled to pull
the lift links to the rearward. As a result, mower rear link (1), (3) are lifted.
The cutting height adjusting dial (5) adjusts cutting height of mower by rotating the adjusting cam (11). The position
of mower rear link (1), (3) are adjusted by changing the length of the adjusting bolt (8).
(1) Mower Rear Link RH
(2) Lift Pin
(3) Mower Rear Link LH
(4) Rear Lift Link LH
(5) Cutting Height Adjusting Dial
(6) Rear Lift Link LH
(7) Lift Arm
(8) Adjusting Bolt
(9) Lift Upper Boss
(10) Lift Lower Boss
(11) Cam
KiSC issued 08, 2019 A

Kubota BX24 Specifications

General

Engine Power	23 hp (17.2 kW)
Transmission Type	Hydrostatic
Brakes	Wet disc
Power Steering	Yes
Rear PTO	540 RPM
Hydraulic System Type	Open center
3-Point Hitch	Category I
Engine Type	Diesel
Wheelbase	55.1 inches
Width	44.5 inches
Height	85.4 inches
PTO Power	17.7 hp
Gears	2-range (Hi/Lo)
