2-M1
BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM

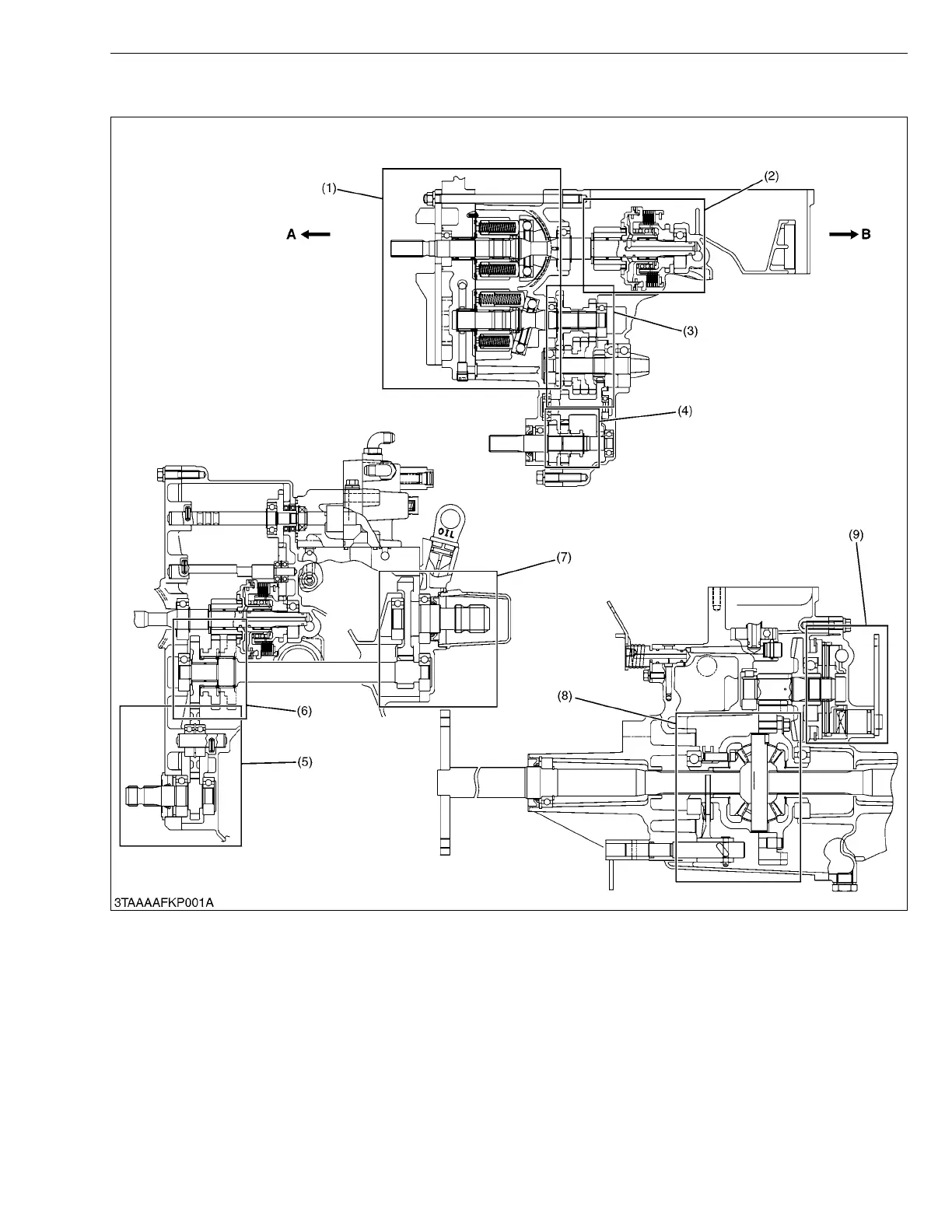

TRANSAXLE
1. STRUCTURE
(1) Hydrostatic Transmission
(2) PTO Clutch Section
(3) Range Gear Shift Section
(4) Front Wheel Drive Gear
Section
(5) Mid-PTO Section
(6) PTO Gear Shift Section
(7) Rear PTO Section
(8) Differential Gear Section
(9) Brake Section
A : Front Side
B : Rear Side
KiSC issued 08, 2019 A
