6-M12
BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM
ELECTRICAL SYSTEM
5. GAUGES

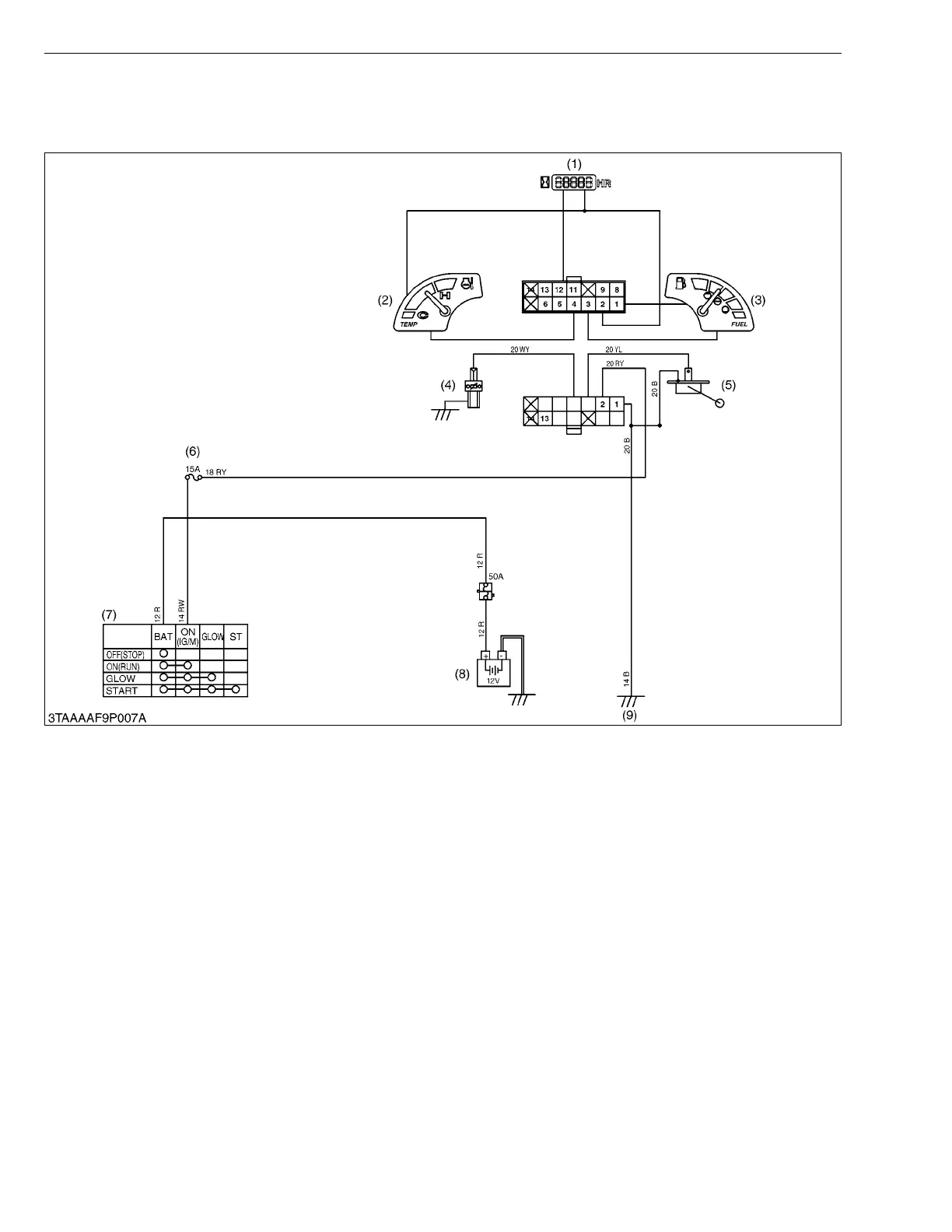

[1] ELECTRICAL CIRCUIT
The fuel quantity is indicated by the fuel gauge. The coolant temperature is indicated by the water temperature
gauge.
(1) Hour and Tachometer
(2) Water Temperature Gauge
(3) Fuel Gauge
(4) Thermo Unit
(5) Fuel Sensor
(6) Fuse
(7) Main Switch
(8) Battery
(9) Frame Earth
